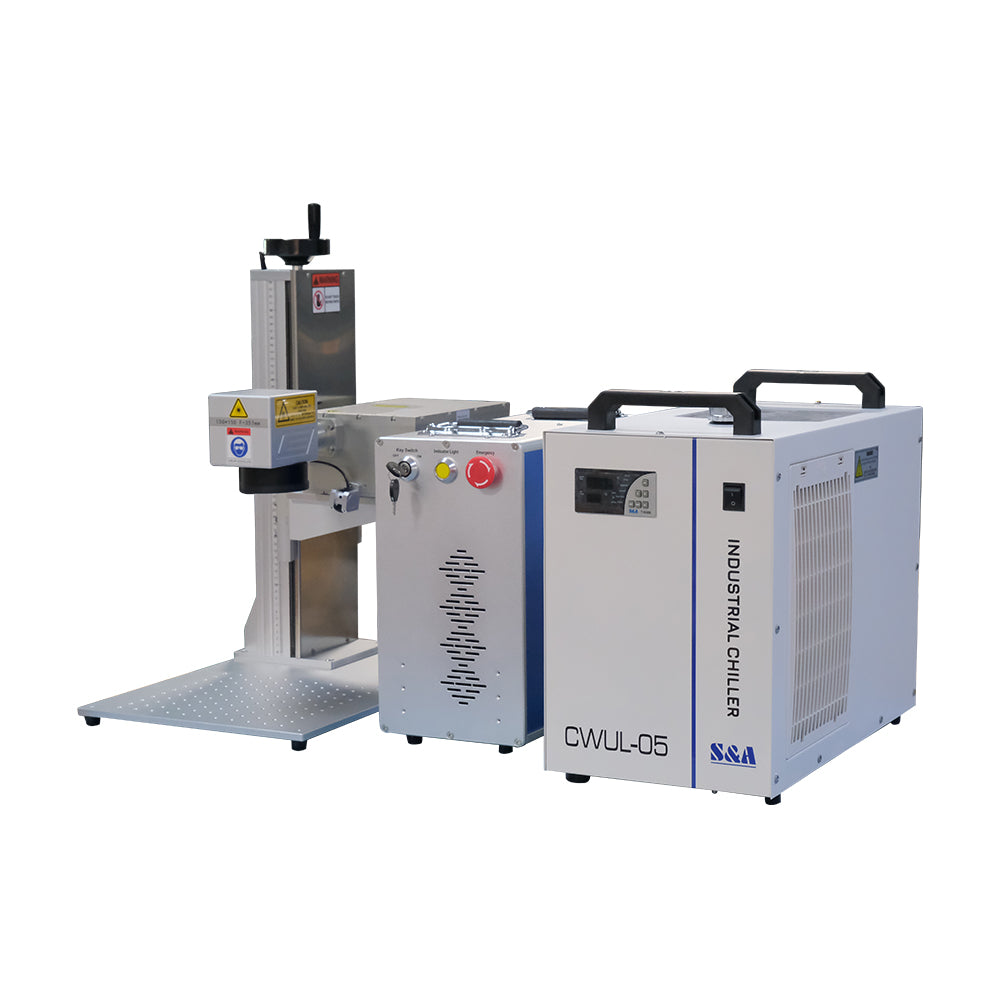

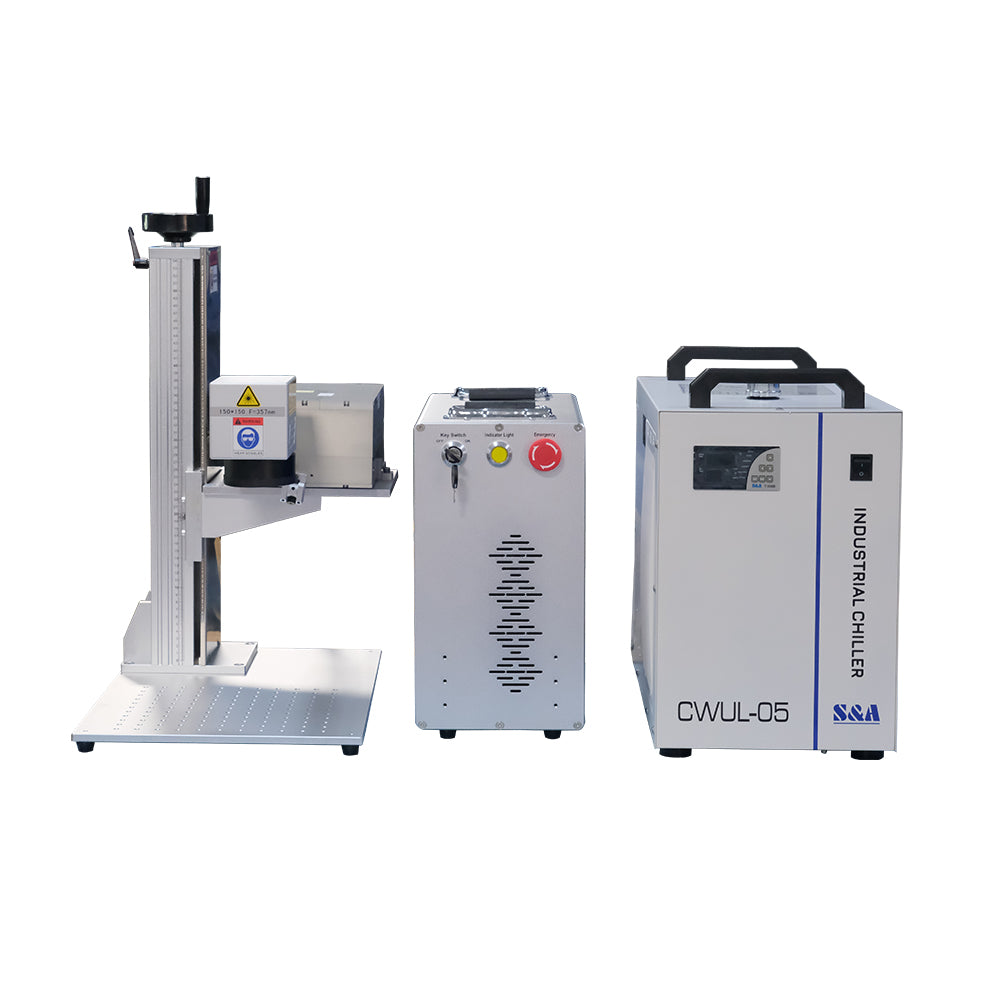

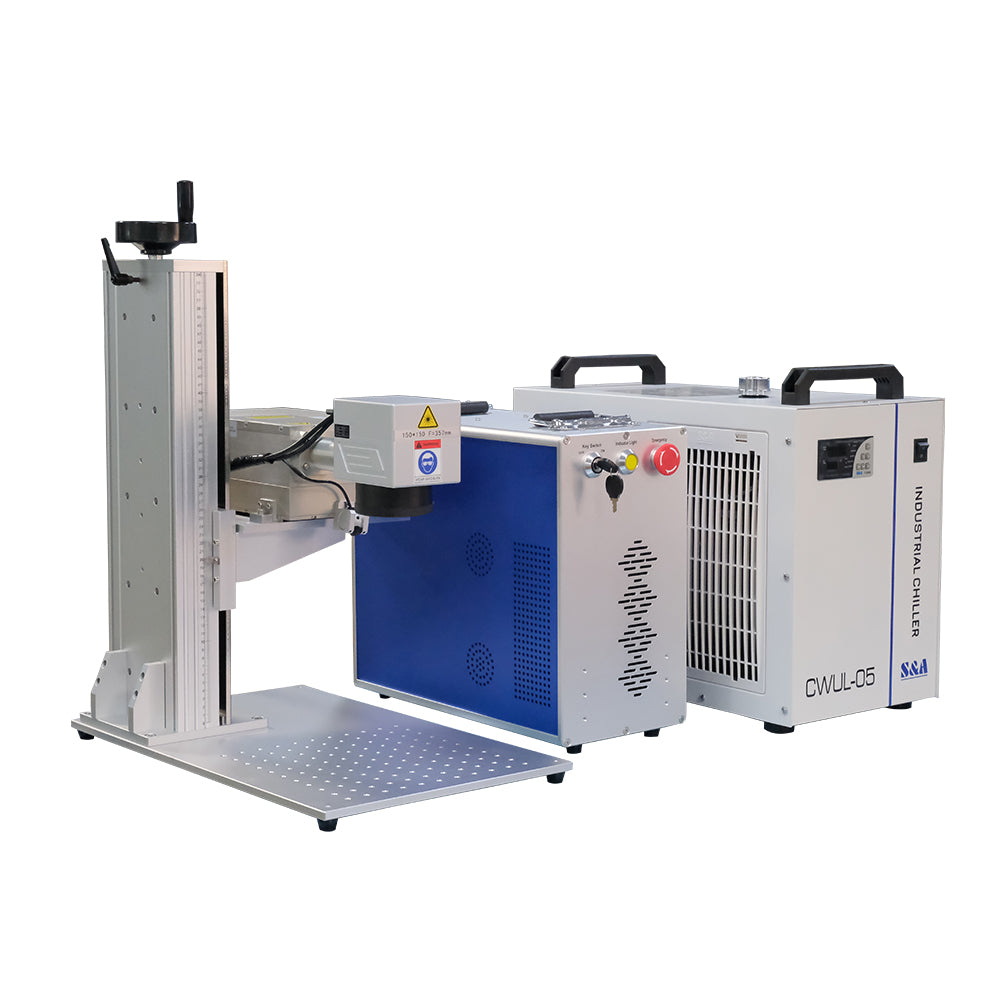

LYXCTECH JPT 3W/5W/10W/15W UV Laser Engraver Laser Marking Machine With S&A Water Chiller

LYXCTECH JPT 3W/5W/10W/15W UV Laser Engraver Laser Marking Machine With S&A Water Chiller

💕Features of Fiber Laser Marking Machine

• Laser Source: JPT SEAL-355-3/5/10S/15S
• Pulse Repetition Rate Range: [20kHz-150kHz@3W/5W] [40kHz-300kHz@10W/15W]
• Pulse Duration: [<15ns@30kHz-3W] [<15ns@40kHz-5W] [18ns@60kHz-10W/15W]
• Marking Area(Lens): 110-300mm Optional
• Rotary Axis: D69/D80/100/125mm Optional
• Software: EZCAD2.
• Marking Speed≤8m/s; Re-position precision: 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
• English User Manual+training video+software sending together with the machine.
• ISO, CE & FDA Certificatied.
• The function of marking software is powerful. The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT, PCX, DXF, BMP, etc supported.
• The machine can directly use SHX, TTF fonts; Automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc supported.
• Mark: some metals, all glass, paper, fruits, wood, ceramic, garments Mark and engrave: all plastics, some stones, leather,etc.
• Applicable Industry: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments; Cosmetics, Food and other Macro-molecule material packaging surface, Flexible PCB, LCD Glass QR Code, Metal Surface,etc.

💕Introduction

• High power ultraviolet series in Seal family includes 10W narrow pulse width ultraviolet and 15W narrow pulse width ultraviolet. The output laser of this series has excellent beam quality (M2 < 1.2) and perfect spot characteristics (spot ellipticity is greater than 90%). The whole machine adopts an integrated structure design, which combines optical path and external driving circuit, making the product series have strong anti-interference ability. Optimize and upgrade the fully sealed structure to effectively prevent the entry of external dust. At the same time, the isolation of external water molecules makes the whole machine have a strong anti-moisture characteristics, making the Seal series can adapt to a more harsh industrial environment. In addition, the service life can be greatly prolonged by introducing an intracavity self-cleaning system. As an upgraded version of DPSSLP-UV-10/15-AIO, the output laser of Seal-355-10/15S series ultraviolet solid-state lasers has very short pulse width (<10ns@90KHZ) and excellent pulse stability (<3% RMS@90KHZ) at medium and high repetition rates. The repetition frequency range has been extended (30KHZ~300KHZ), and the efficiency has been greatly improved.

💕Cold Laser Engraving

• Also knows as the blue laser beam, this technology has the capacity of engraving with a low rate of heat. The light wave or UV light spectrum of this machine is one of the main reasons this technology can engrave over different materials because it doesn't heat the material surface as the Fiber and the CO2 does. It allows the UV laser mark clear and with high precision over all the plastics and other materials that have an adverse reaction with heat.
• Plastics: Polyethylene (PE), Polyvinyl Chloride (PVC), Polypropylene (PP), Polystyrene (PS), Polylactic Acid (PLA), Polycarbonate (PC), Acrylic (PMMA), Acetal (Polyoxymethylene, POM), Nylon (PA), ABS (Acrylonitrile Butadiene Styrene), Other Plastic not mention here.
• Metals: Aluminium, Gold, Platinum, Silver, Titanium, Brass, Stainless steel, Crome,etc.
• Wood: Mahogany, Walnut, Oak, Ash, Birch, Maple, Cherry, Pine, Spruce, Cedar, Fir, Larch, MDF, Plywood, Fibreboard,etc.
• Glass: The UV laser is one of those technologies that can engrave over glass surfaces without a break or overheat the material. You can create amazing engravings and patterns without splinter glass result.

💕Application Advantage:

• Photoelectric Integration, Anti-interference, One-button Start
• Fully sealed structure, dust-proof, moisture-proof
• Intracavity self-purification with longer lifetime
• Compact size, saving installation space

💕Shipping Policy:

• All of our laser machines would be shipped by express like DHL/UPS/FedEx/TNT.
• All prices are including shipping to your door.
• Order processing time: 2 to 3 business days.
• Delivery time: 7 to 15 days.

💕Warranty Policy:

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within one year. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
