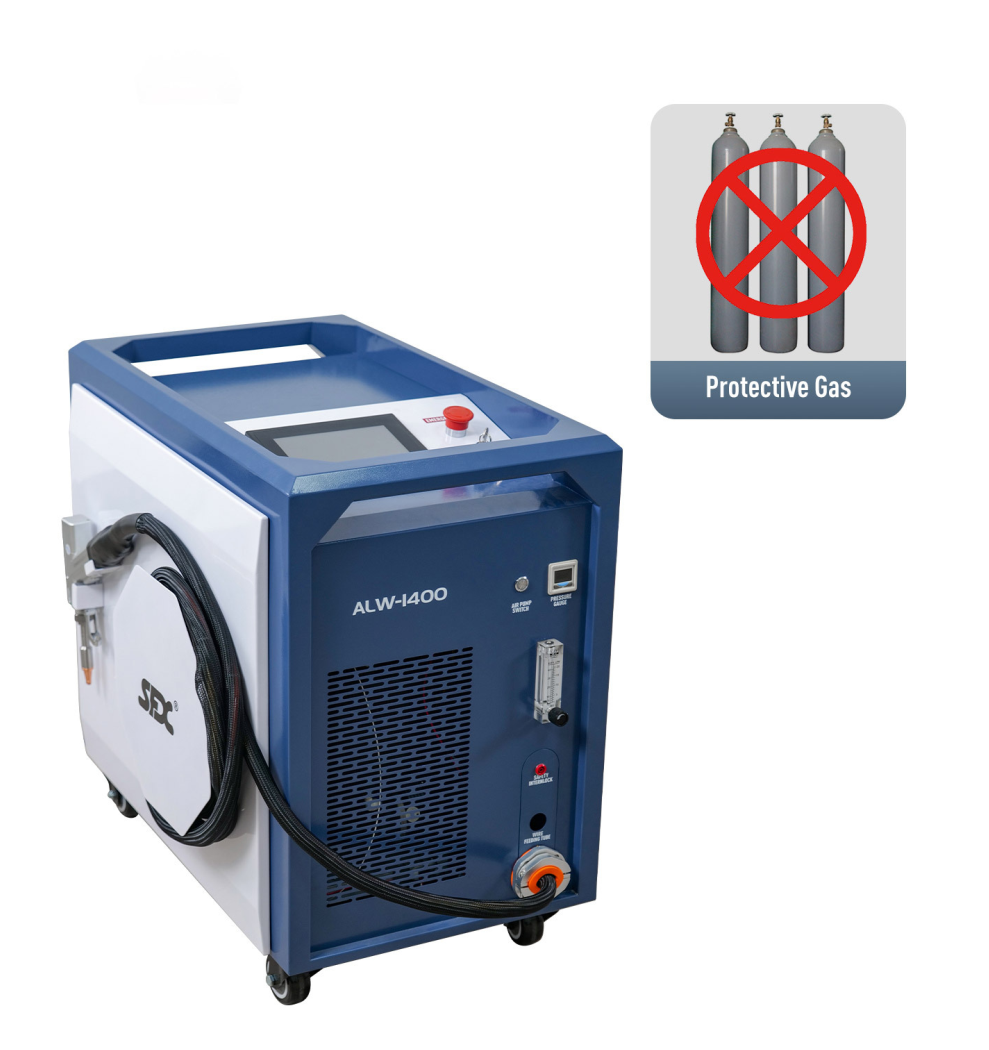

LYXCTECH 1400W Laser Welding Machine Air-cooled With Auto Wire Feeder
LYXCTECH 1400W Laser Welding Machine Air-cooled With Auto Wire Feeder
Impossibile caricare la disponibilità di ritiro
About this item
About this item
🚀Technical parameters: model: ALW-1200, gross volume: 0.1m3, weld gun weight: 650g, operating mode: Continuous/pulsed/modulation/line array/timing mode, scan width: 0-5mm, input voltage: 220V, rated power: 4kw, gross weight: 32kg (Wire feeder weight 15kg), machine dimension: 550*320*550mm.
🚀The air-cooled laser welding machine is lightweight and small in size, total weight only 32kg, volume 0.1m3, making it easy to carry around and other applications. Even if you have never used this type of machine before, you will be able to master the techniques and operate it within 30 minutes, making it very efficient.
🚀Welding speed is 4-10 times faster than traditional welding: single-decker melting depth: stainless steel:3mm, carbon steel:3mm, galvanized sheet:3mm, aluminum;3mm, brass:3mm, copper:1.5mm. Wide range of welding possibilities: carbon steel butt welding, butt welding, fillet welding, spot welding of advertising words, 2mm filet welding, square tube butt welding.
🚀Suitable for welding a wide range of metal materials with sufficient flexibility and adjustability. Particularly suitable for high-quality welding and enables easy preheating of different materials. widely used in hardware, building materials, kitchenware, aerospace, automobile and other industries, suitable for a variety of materials.
Email: oscar@sfxlaser.comWhatsapp: +86 13592083781
Puoi anche lasciarci un commento per gli articoli che ti interessano. Ti risponderemo entro 24 ore! Grazie!
LYXCTECH Air-cooled Design Laser Welding Machine 1400W Laser Welder Machine With Auto Wire Feeder
Only 650g lightweight head，integrated laser welding machine
👍Feature of Air-cooled Laser Welding Machine
- Integrates three functions in a aingle machine: Laser welding machine + wire feeder+ protective gas
- Dedicated air-cooled welding gun, long-lasting welding without overheating or hand burn
- Dual welding modes flexible design for multiple operational needs, 40 preset process libraries, ready to weld in 5 minutes
- -10°C-40°C Continuous welding, fearless of severe cold or heat
- 3D Phase-change cooling, adaptive intelligent temperature control, low noise and energy saving
- Remote technical diagnosis, intimate service, immediate response
- Suppport multi-material multi-angle welding, quickly corresponds to process parameters for high quality and consistent welds
Welding materials【Depth of fusion on one side】
- Stainless steel: 4.5mm, carbon steel: 4.5mm,galvanized sheet: 4.5mm, aluminum: 3.5mm, brass: 2.0mm, purple copper: 2.0mm
Welding materials【Double-sided of fusion on one side】
- Stainless steel: 9mm, carbon steel: 9mm,galvanized sheet: 9mm, aluminum: 7.5mm, brass: 4.0mm, purple copper: 4.0mm
❣️Multiple intelligent protections
Overheating protection
- Monitor the internal temperature of the laser to protect internal components from damage due to exceeding the safe operating temperature
Optical cable connection interlock
- The optical cable connection interlock is a safety protection circut between the handheld welding head and the equipment’s optical cable interface
Safety protection circut
- This safety protection circut ensures that the handheld welding head is only allowed to emit laser when the nozzle is connected(in contact)with the workpiece
✈️Shipping Policy:
- All of our laser machines would be shipped by express like DHL/UPS/FedEx/TNT.
- All prices are including shipping to your door.
- Order processing time: 2 to 3 business days.
- Delivery time: 7 to 15 days.
❣️Warranty Policy:
- 1. The warranty period of this product is one year for the whole machine, and the warranty period for the laser source is two years.
- 1.1 From the date of purchasing this product, our company provides free warranty within one year. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
- 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
- 2. The following scopes are not covered by warranty:
- 2.1 Damage caused by improper use such as violent bumping, bending, etc.
- 2.2 Human-caused damage
- 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
