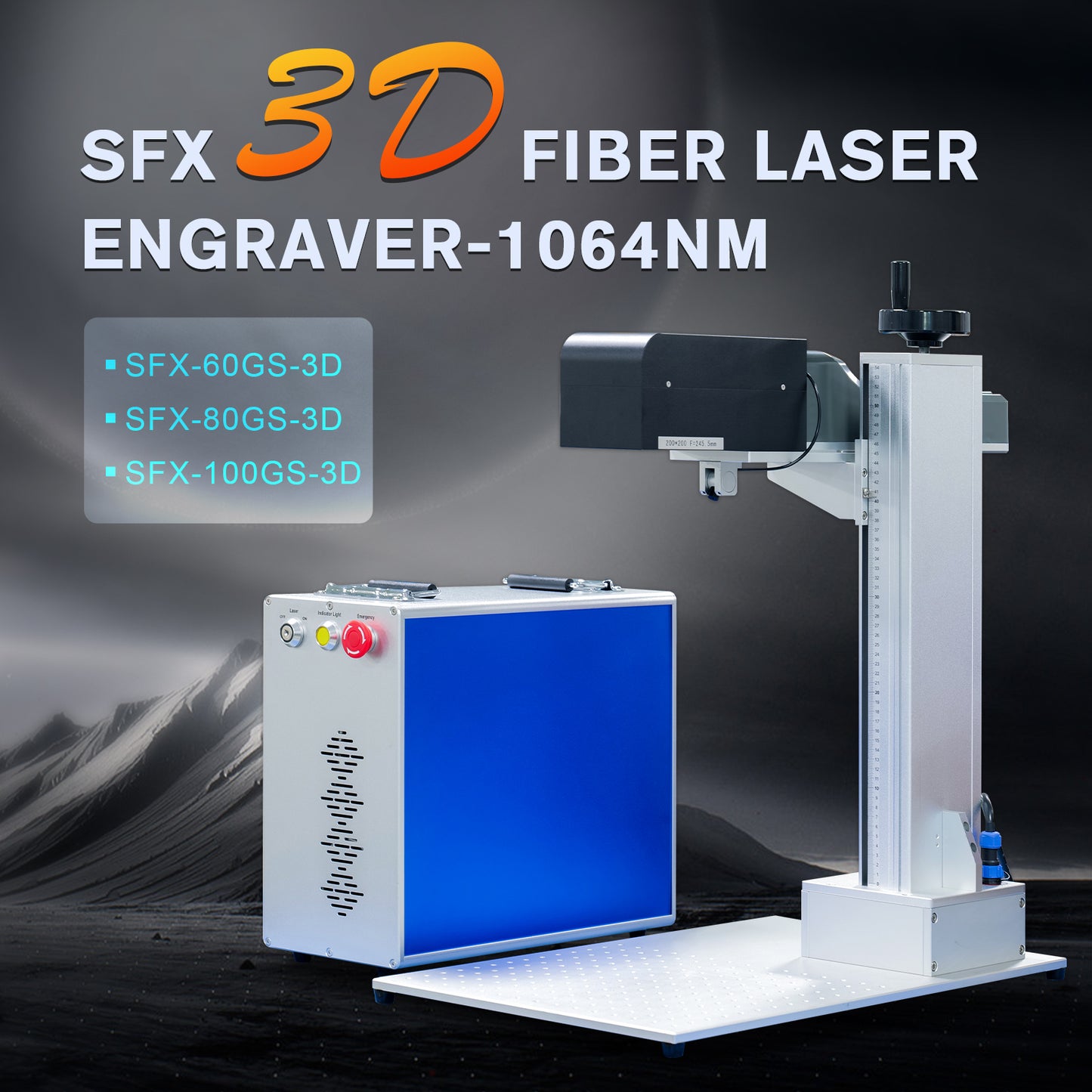

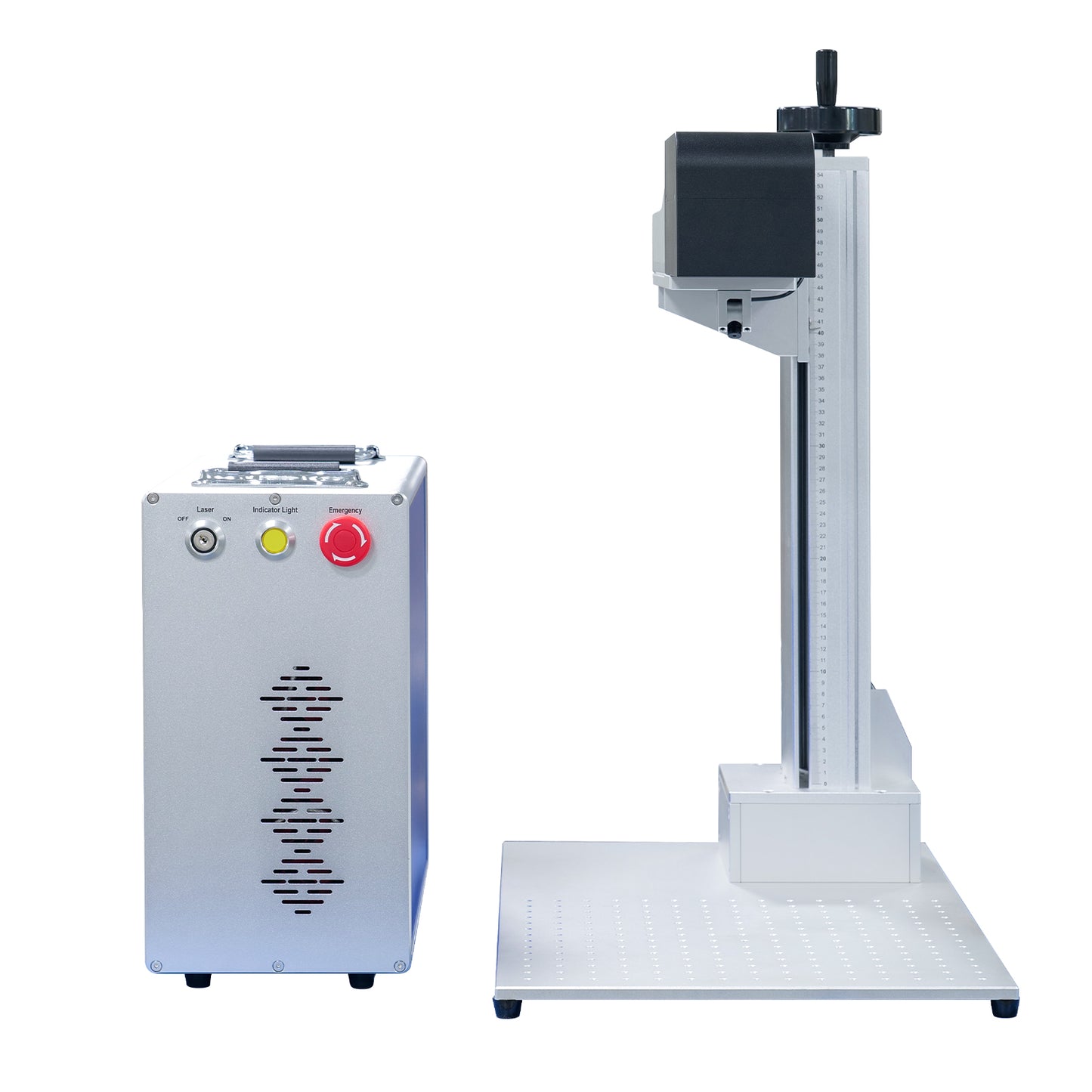

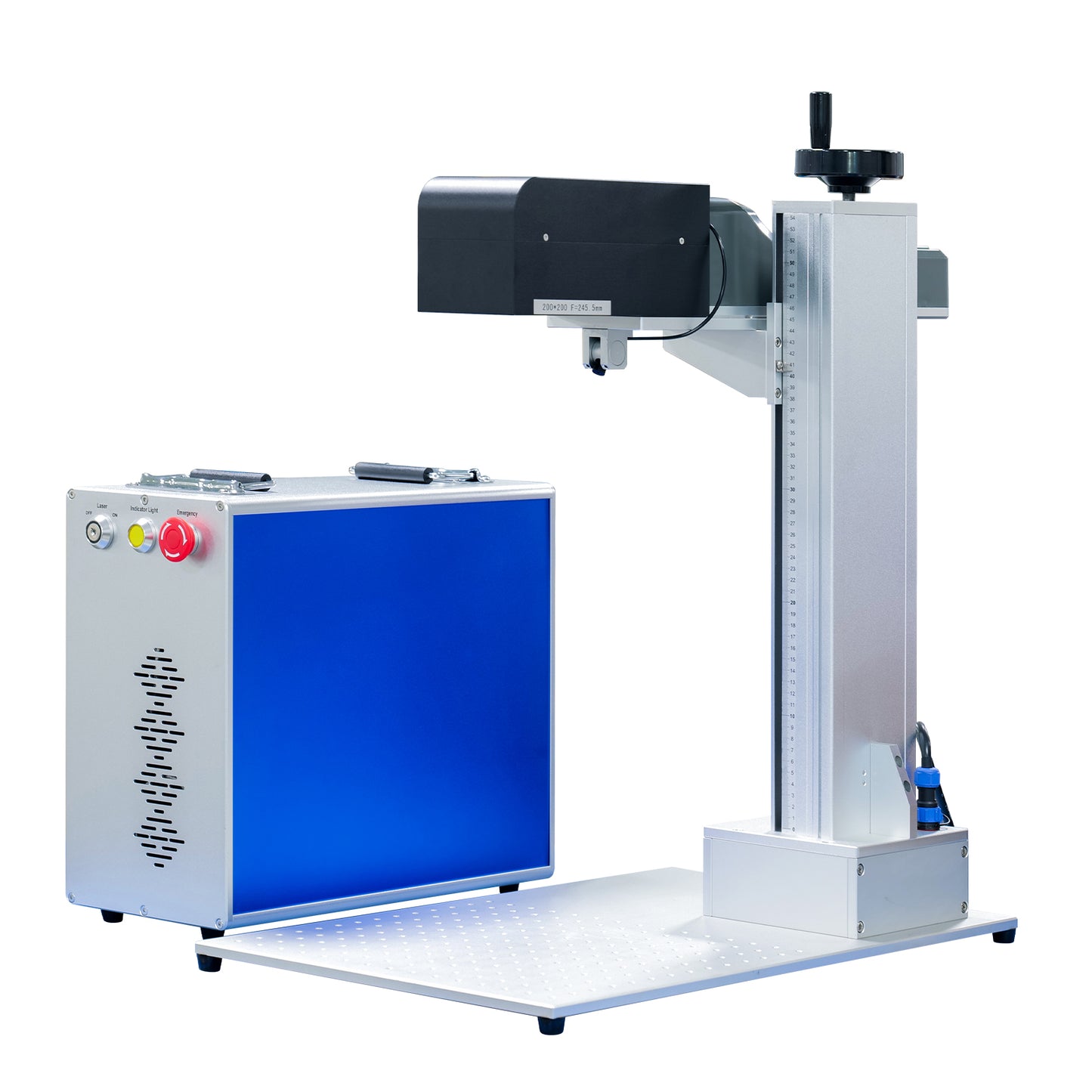

LYXCTECH 3D Dynamic 60W/80W/100W Fiber Laser Engraver Fiber Laser Marking Machine Work Field 100×100mm/200×200mm

3D Dynamic 60W/80W/100W Fiber Laser Engraver Fiber Laser Marking Machine Work Field 100×100mm/200×200mm

-for Different Steps, Cylinder Surface, Cone Surface, Slope Surface,etc

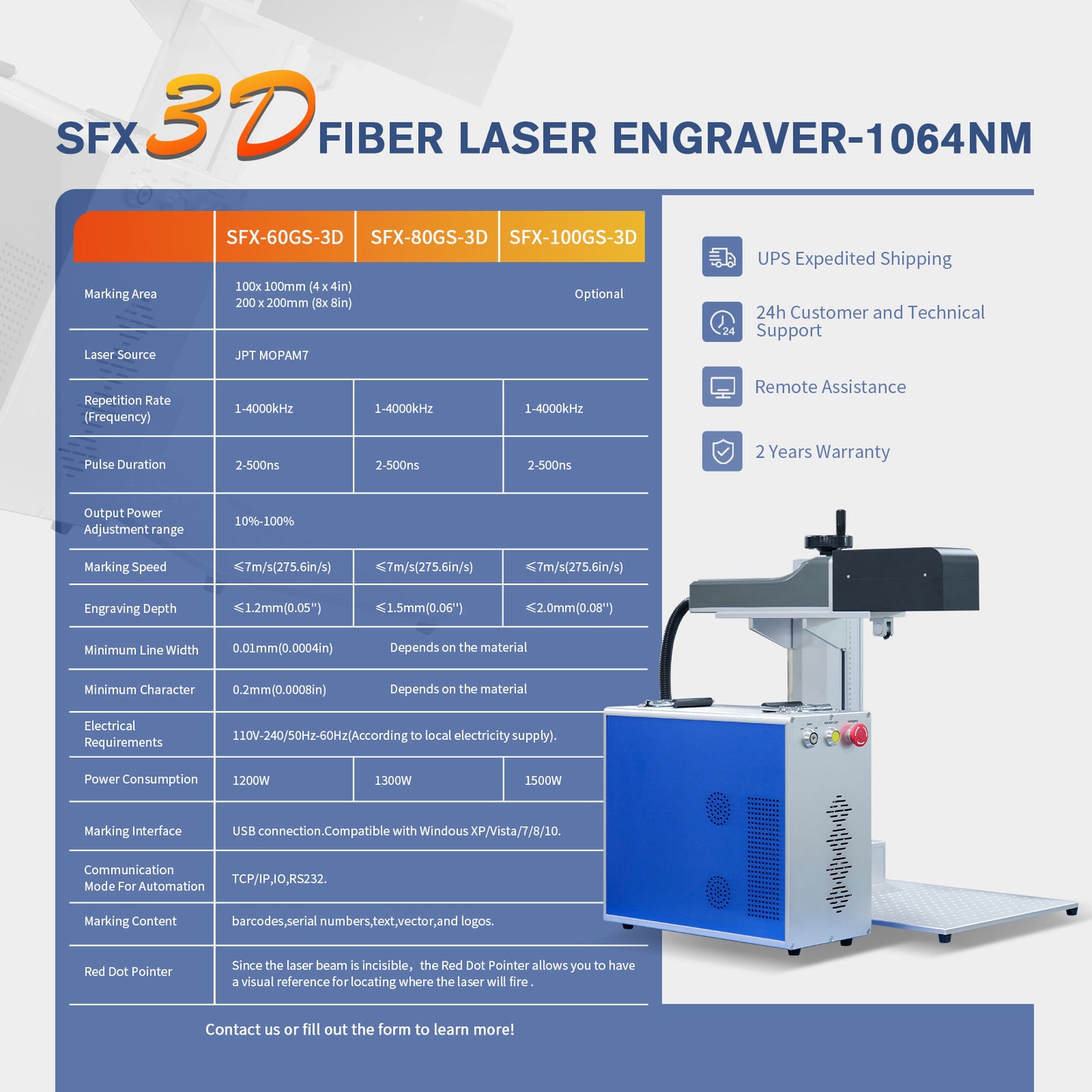

👍Features for 3D Dynamic Laser Marking Machine

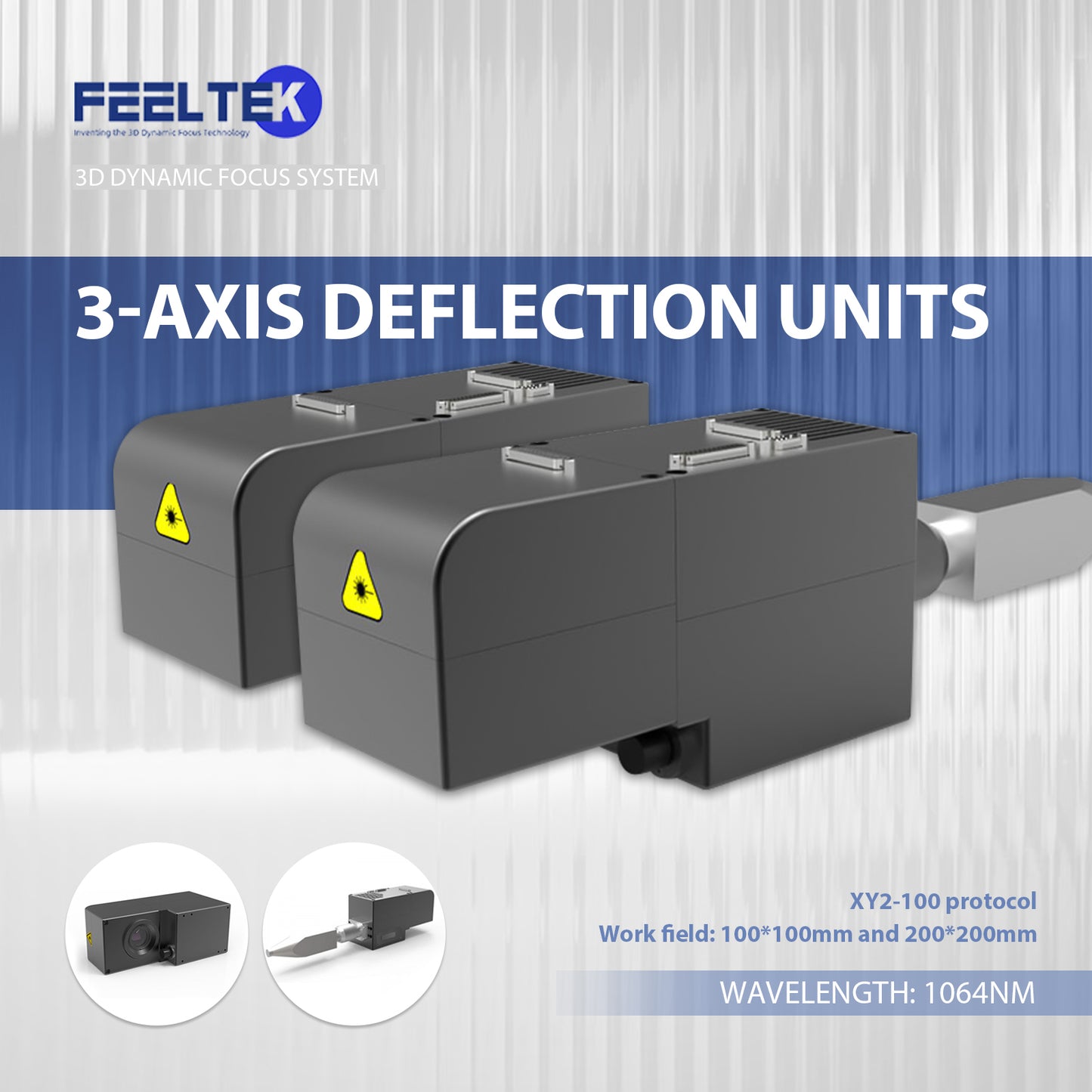

• High Speed Feeltek 3D Dynamic Galvanometer
• Laser Source: JPT MOPA M7 60W/80W/100W
• Adjustable Frequency Range: 1-4000kHz@60W/80W/100W
• Pulse Width: 2-500ns
• Max. Pulse Energy: 60W/2.0mJ; 80W/2.0mJ; 100W/1.5mJ
• Work Field(Lens): 200×200mm
• Maximum Marking Height up to 80mm@200×200mm
• Rotary Axis: D69/D80/100/125mm Optional
• Software&Function: Lenmark_3D Software
• Marking Speed≤7m/s; Re-position precision: 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
• English User Manual+training video+software sending together with the machine.
• ISO, CE & FDA Certificatied.
• 3D Surface Processing: The dynamic focus control technology, breaks the limitation of traditional marking, and can do distortion marking in the large-scale surface, 3D surface, steps, cone surface, slope surface, and other objects.
• Adopted Lenmark_3D software system(MM3D Optional) to support various file formats, vector, bitmap and text bar code import, which is easy to learn and operate.
• Precisely control the focal length position of laser marking machine, automatically adjust Z-axis for 3D deep marking process, keep the spot size to minimum, ensure the uniform graphic effect after marking on the object.

👍Advantages of Fiber Laser Marking Machine

• Adopted advanced optical design scheme, it is characterized by small light loss, small volume, high positioning accuracy, fast marking speed and strong anti-interference ability, etc. It is suitable for laser fine processing of various large surface, complex surface and deep carving.
• High speed system, meets above 3000mm/s precision hatch speed.
• Maximum scan field up to 200x200mm, meets large scan field engraving requirements（300mm×300mm/400×400mm Optional）
• Maximum marking height up to 80mm@200×200mm
• Precisely control the focal length position of laser marking machine, automatically adjust Z-axis for 3D deep marking process, keep the spot size to minimum, ensure the uniform graphic effect after marking on the object.
• Adopted Lenmark 3D software system(MM3D Optional) to support various file formats, vector, bitmap and text bar code import, which is easy to learn and operate.
• Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon and other basic models, the operator can easily and rapidly set the marking.
• 3D models can be imported; 2D graphics can be directly cladded or projected on built-in curve surface.

✈️Shipping Policy:

• All of our laser machines would be shipped by express like DHL/UPS/FedEx/TNT.
• All prices are including shipping to your door.
• Order processing time: 2 to 3 business days.
• Delivery time: 7 to 15 days.

❣️Warranty Policy:

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within one year. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
