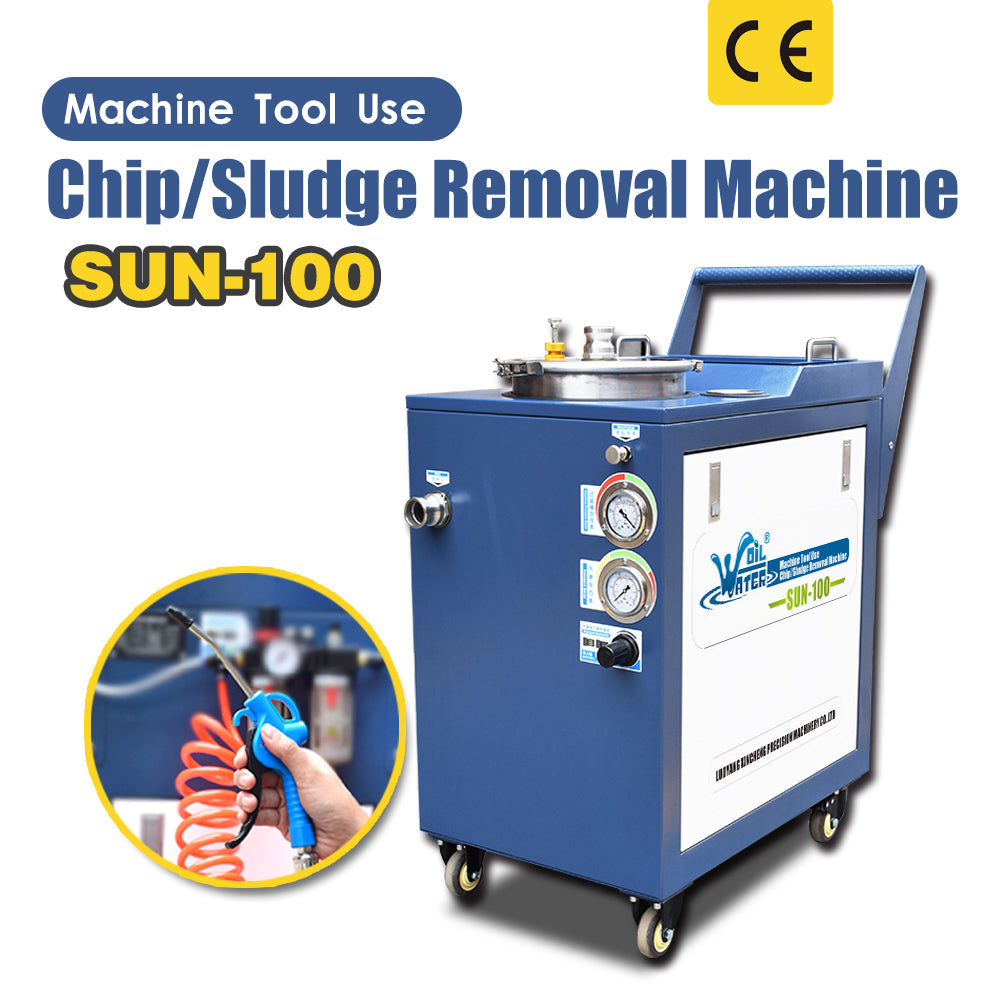

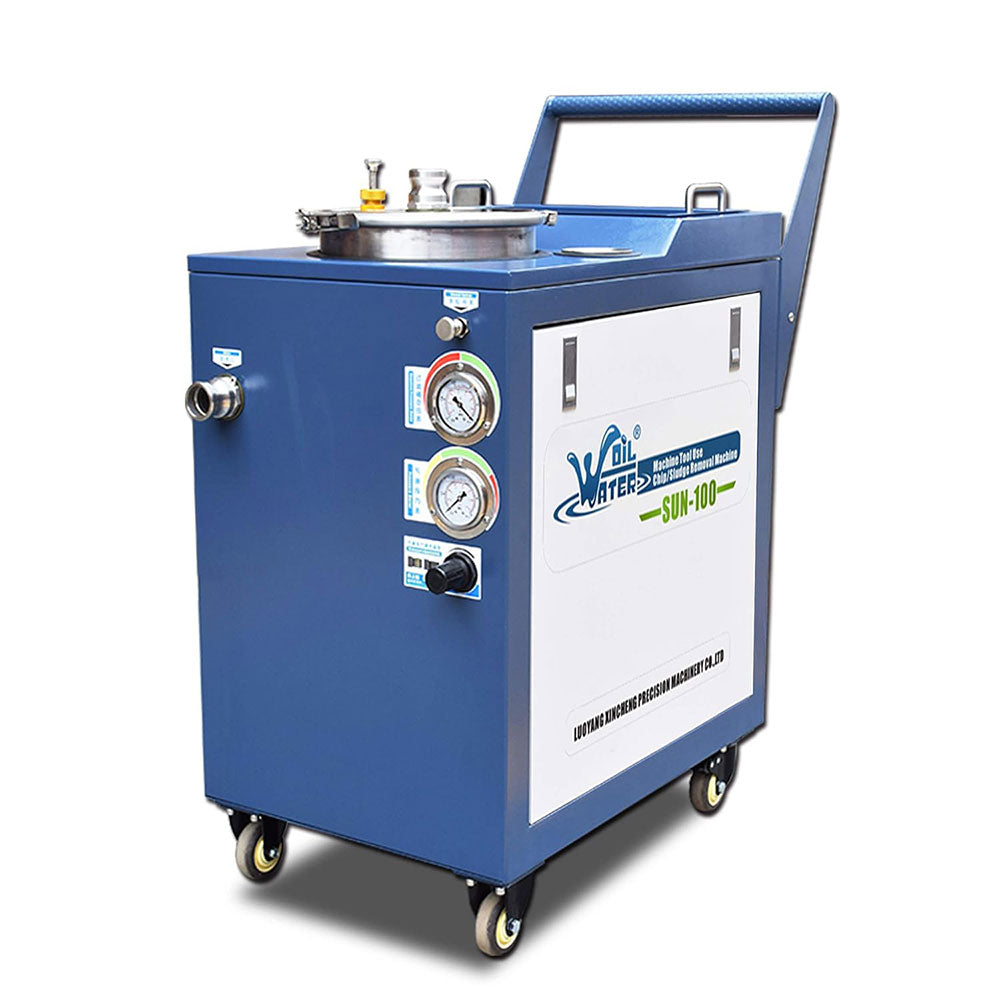

LYXCTECH SUN-100 Chip Sludge Removal Machine Coolant Tank Purifier

LYXCTECH SUN-100 Chip Sludge Removal Machine Coolant Tank Purifier

Product Description

• The machine’s main components include inletand outlet pipe fittings, pressure tank, water pump and cabinet components. Thecutting fluid is circulated and filtered to remove impurities by using themachine.

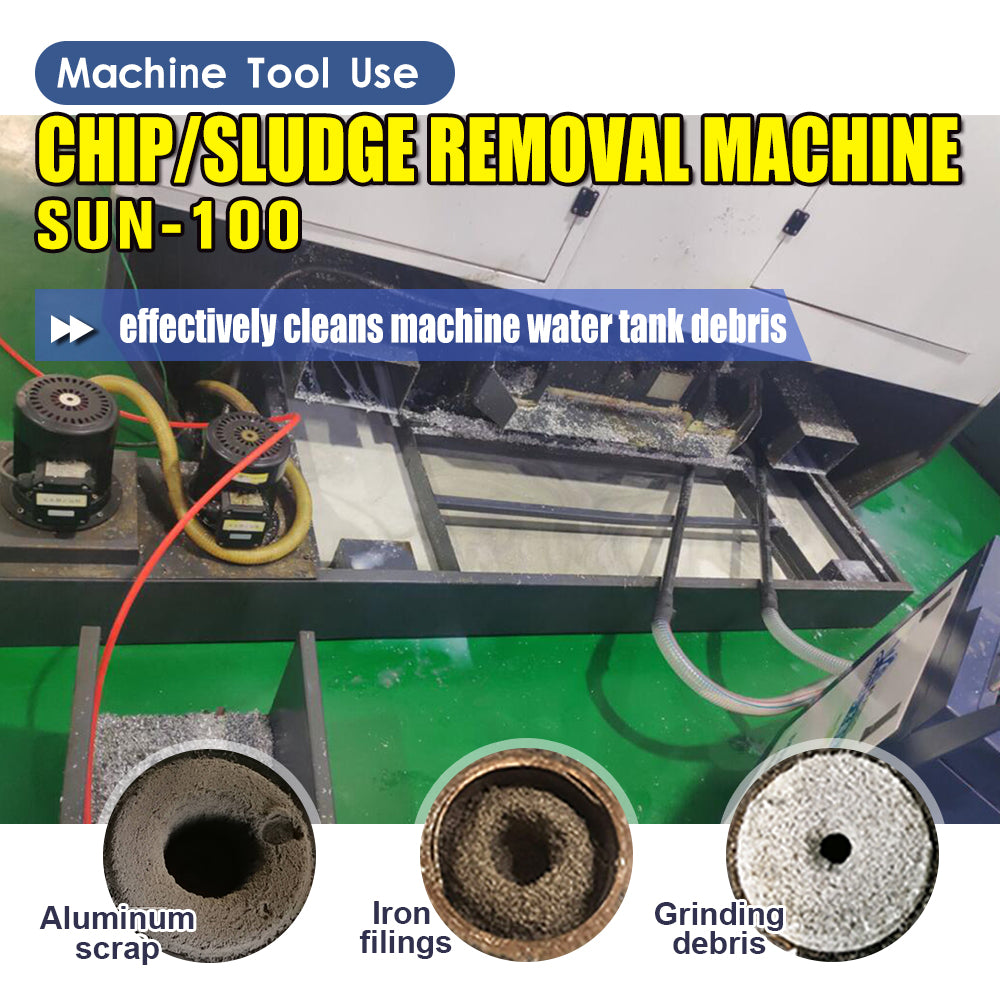

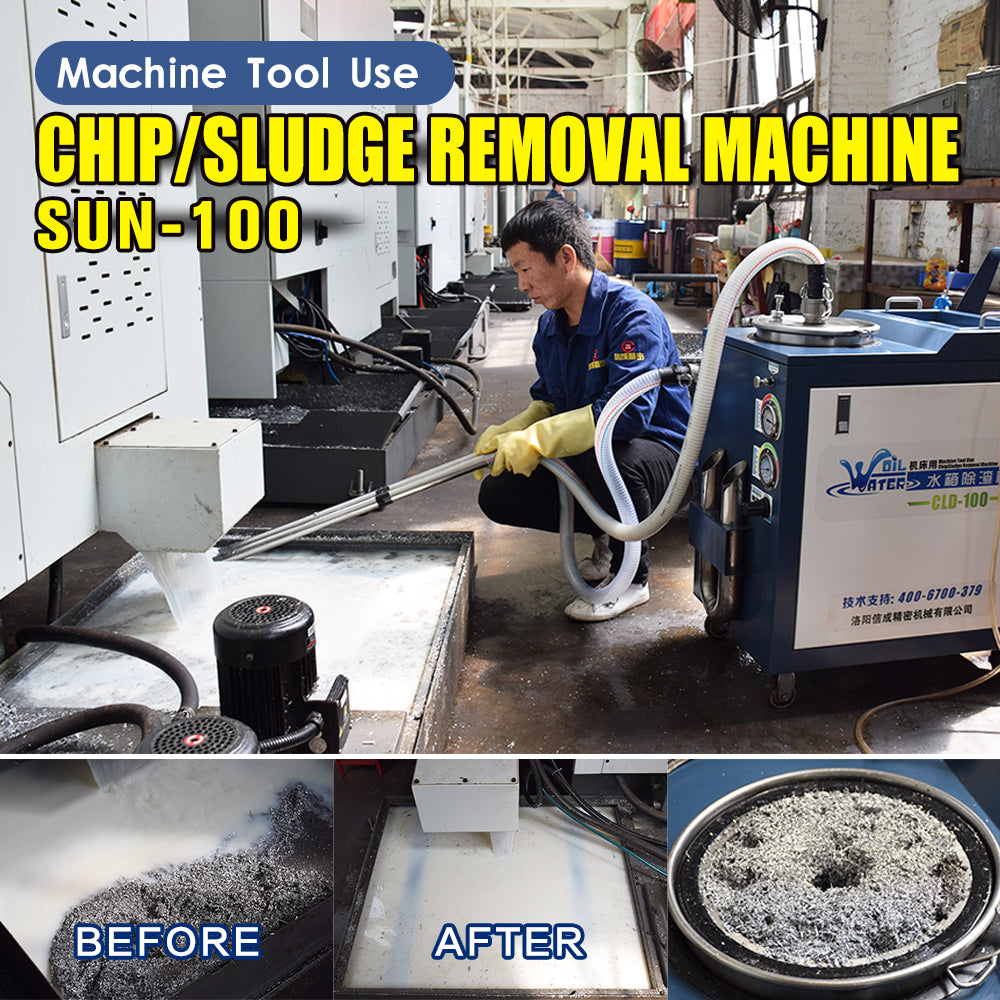

• The mixtures of cutting fluid and metaldebris are sucked into the pressure tank through the water inlet of the pump. Thecutting fluid is sent back to the cutting fluid pool after filtration throughthe filter, then recirculatefiltration to remove chips and debris. The machine is suitablefor machine tools’ tank cleaning and dirty treatment.

Advantage

• Circulation system, no need to stop the machine tool,clean up at any time;
• Humanized structure design, more convenientin installation, use, storage, maintenance;
• Free plug-in, safe and convenient, quickconnector, plug and play;
• The barrel body is made of 304 stainlesssteel material, which has large capacity, strong anti-rust ability anddurability;
• Wide range of applications, can clean allkinds of metal, non-metallic debris, sludge and other debris;
• The processing flow is large, and the waterabsorption per minute can be 100L, quickly clean up.

Technical Perameter

• Power Source: Pneumatic
• Air Pressure Range: 0.4-0.7 MPa
• Pipe Diameter: 10mm
• Air Consumption: 1-1.7m3/min
• Max. suction: 5m
• Max. flow Rate: 100L/min
• Filter Storage Capacity: 9L
• Filter Mesh Standard Dia.: 0.4mm
• Operating Temperature: 0℃-60℃
• Overall Dimension: 800*450*960mm

• N.W: 67±1Kg

Warranty Policy

• 1 Year after-sales warranty without worry manufacturers direct sale, quality goods guarantee !
