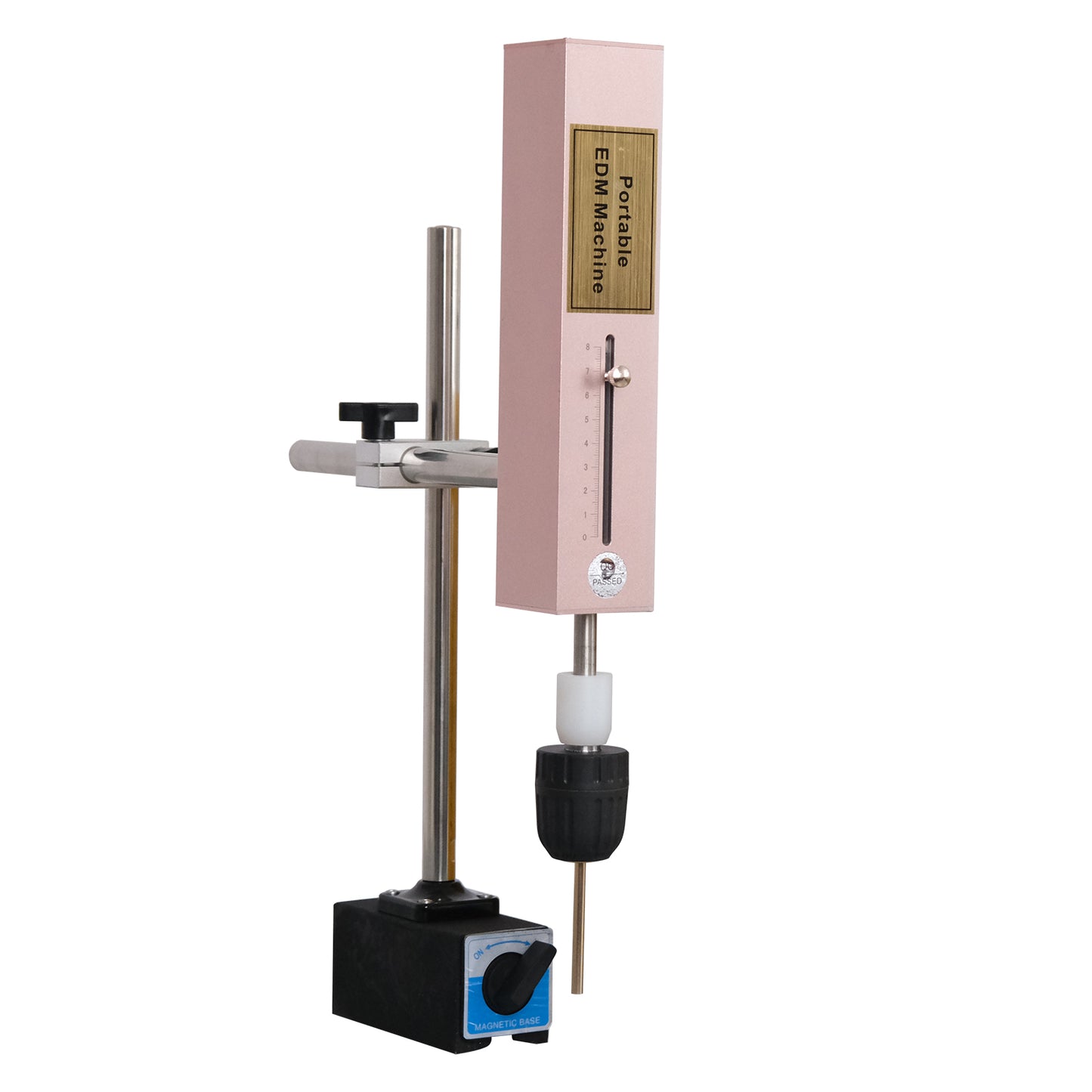

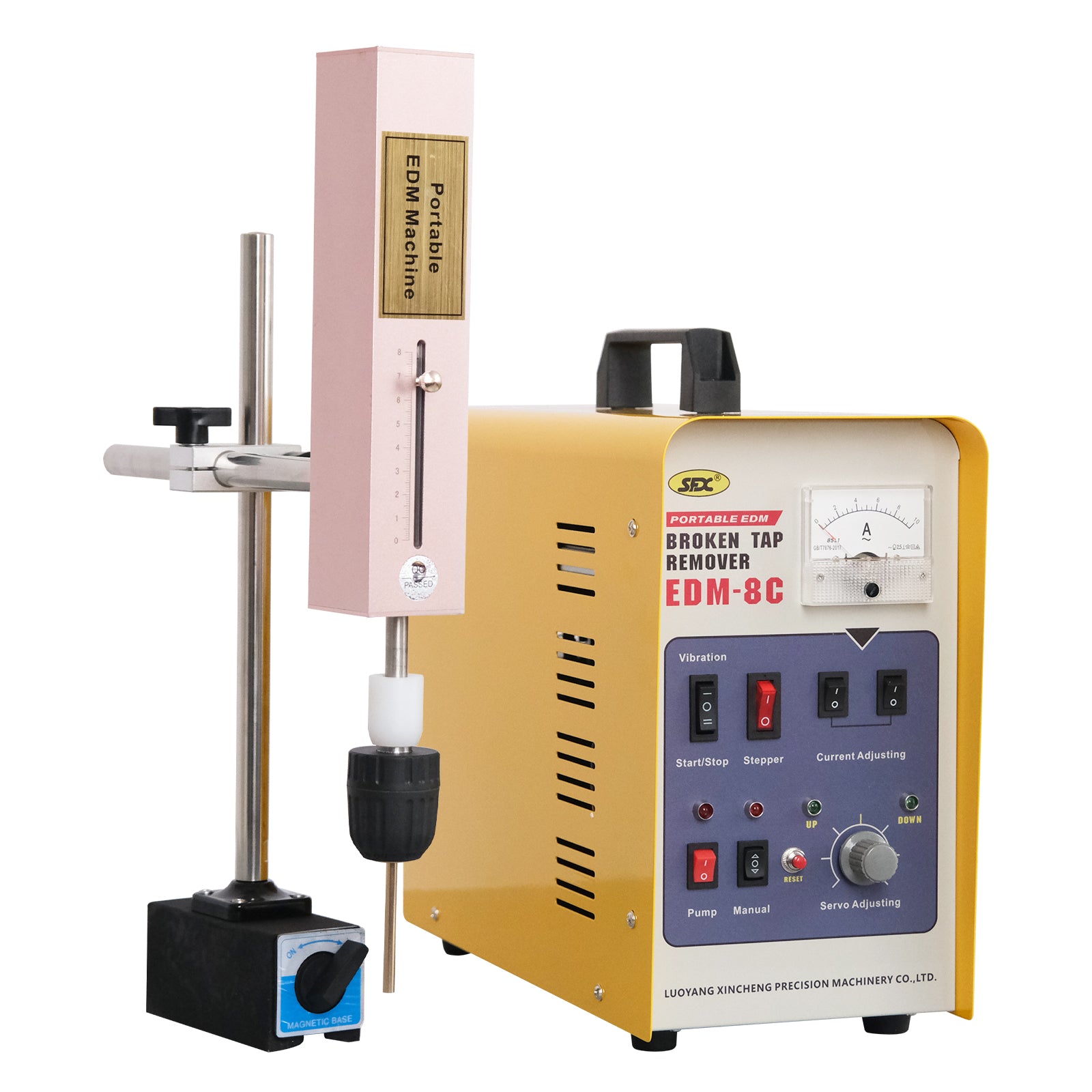

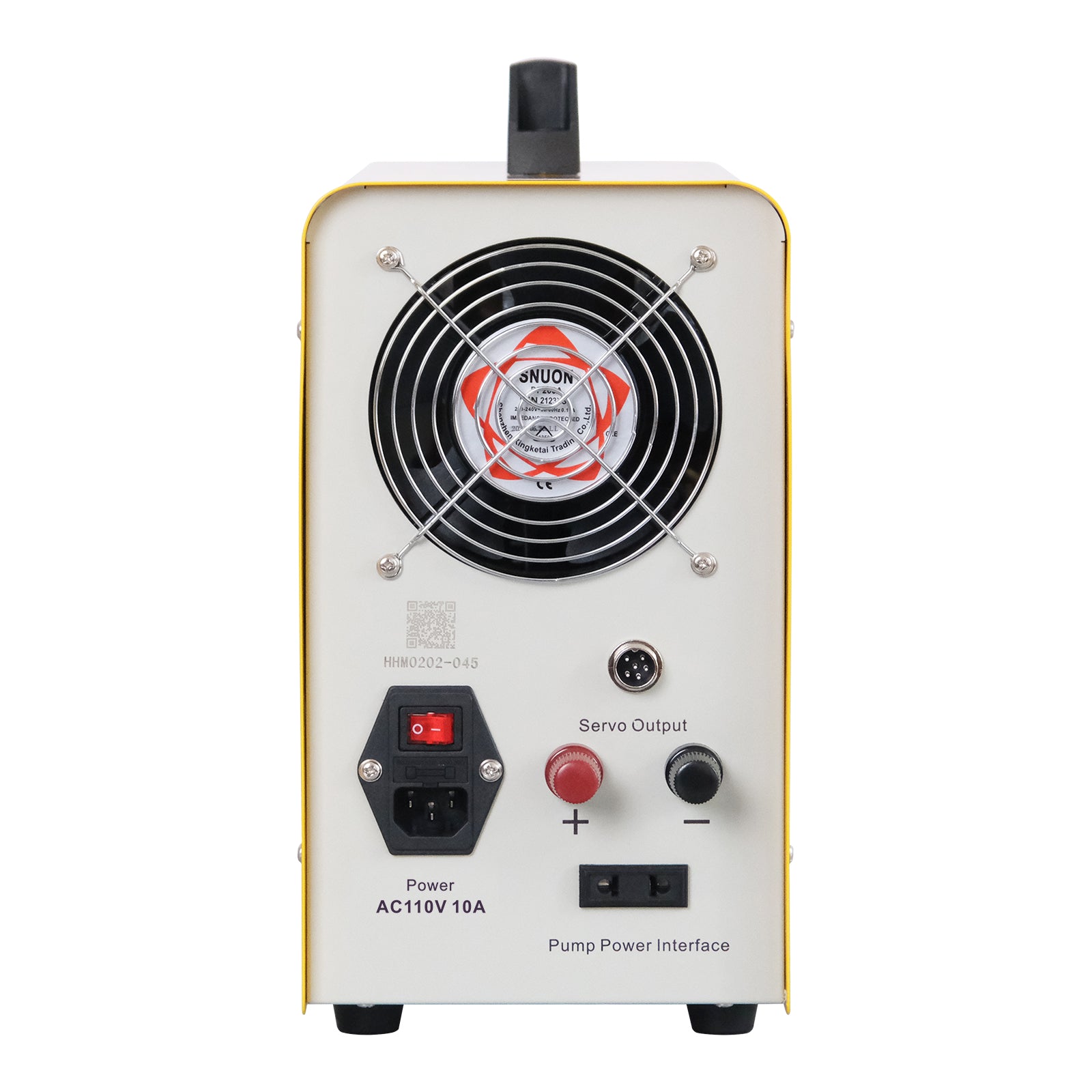

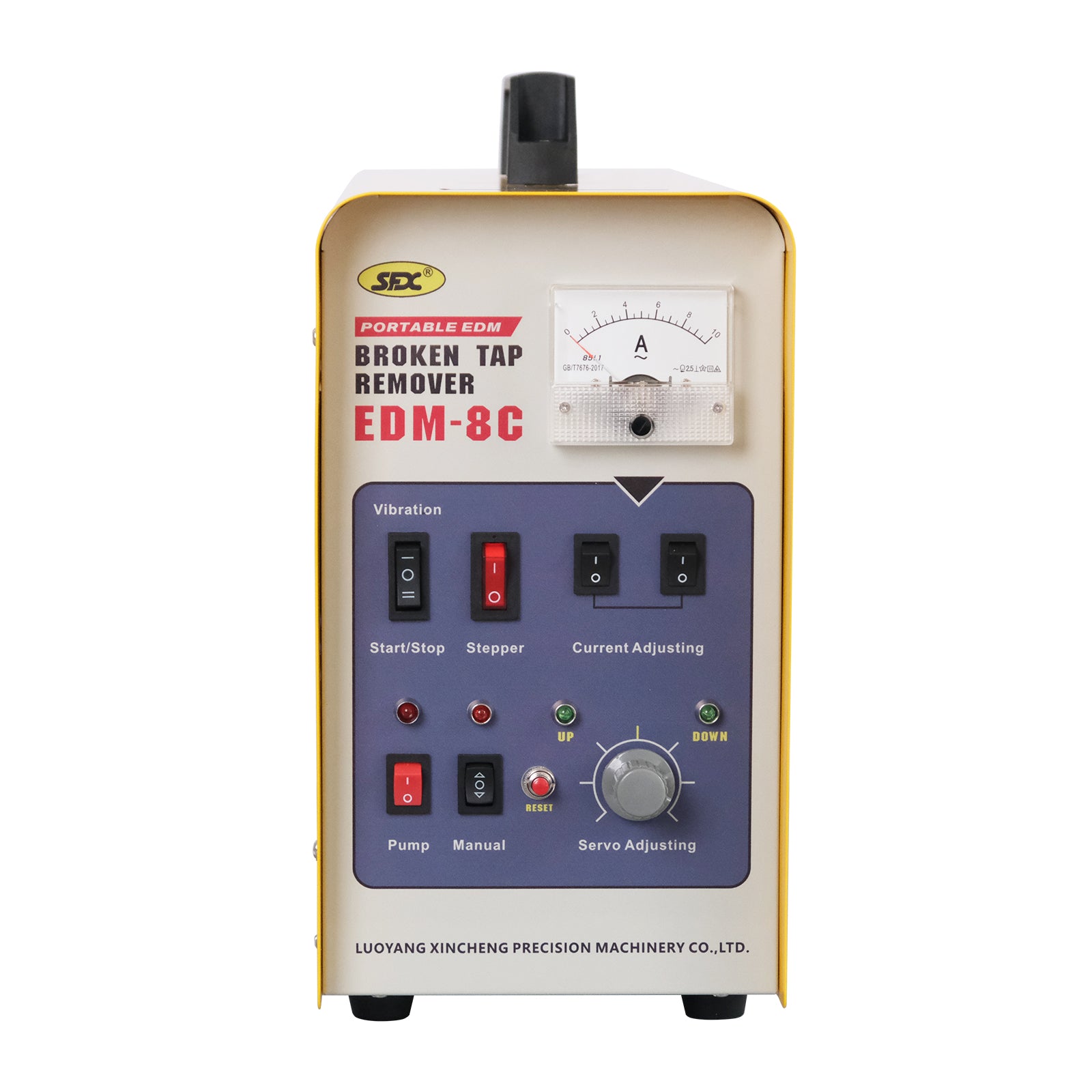

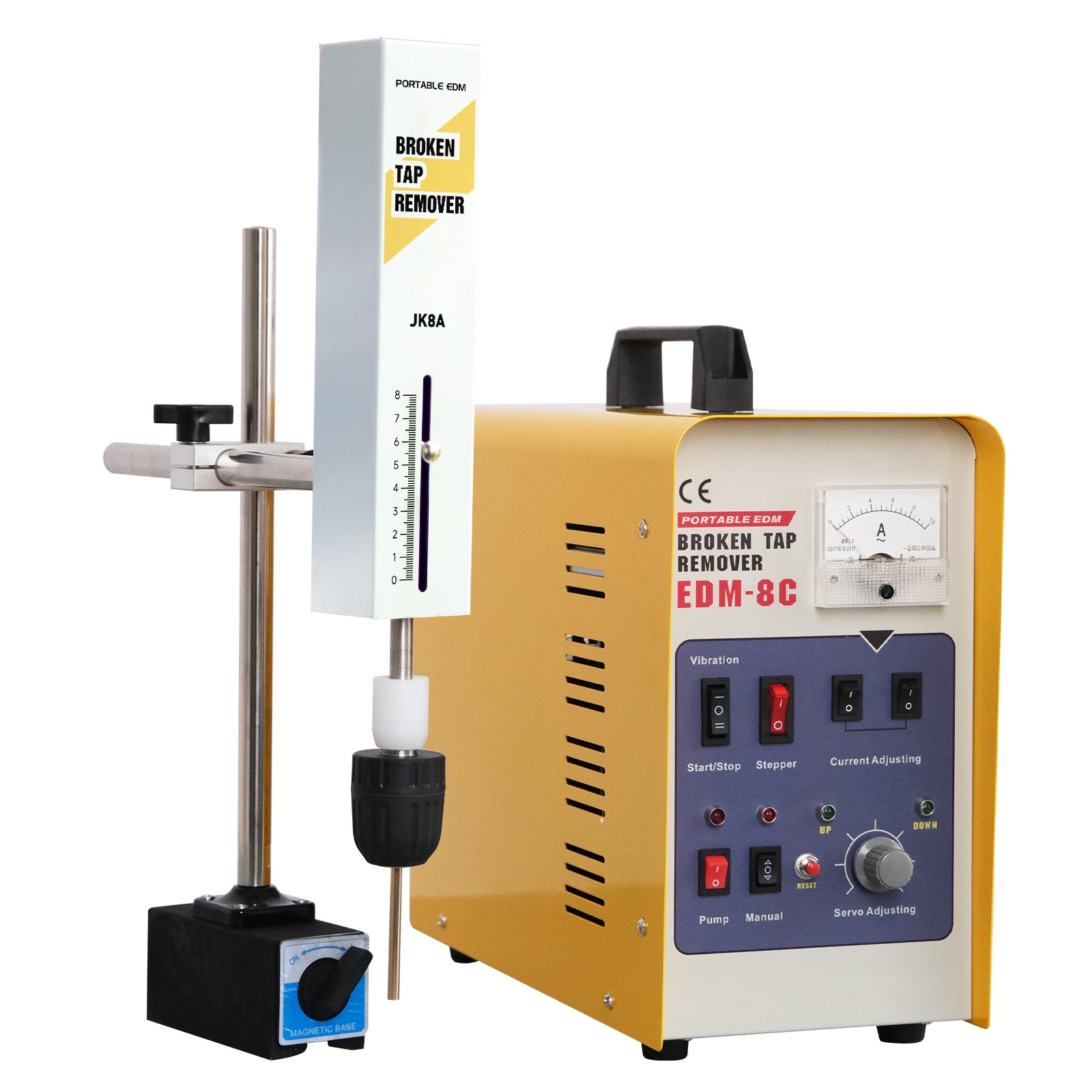

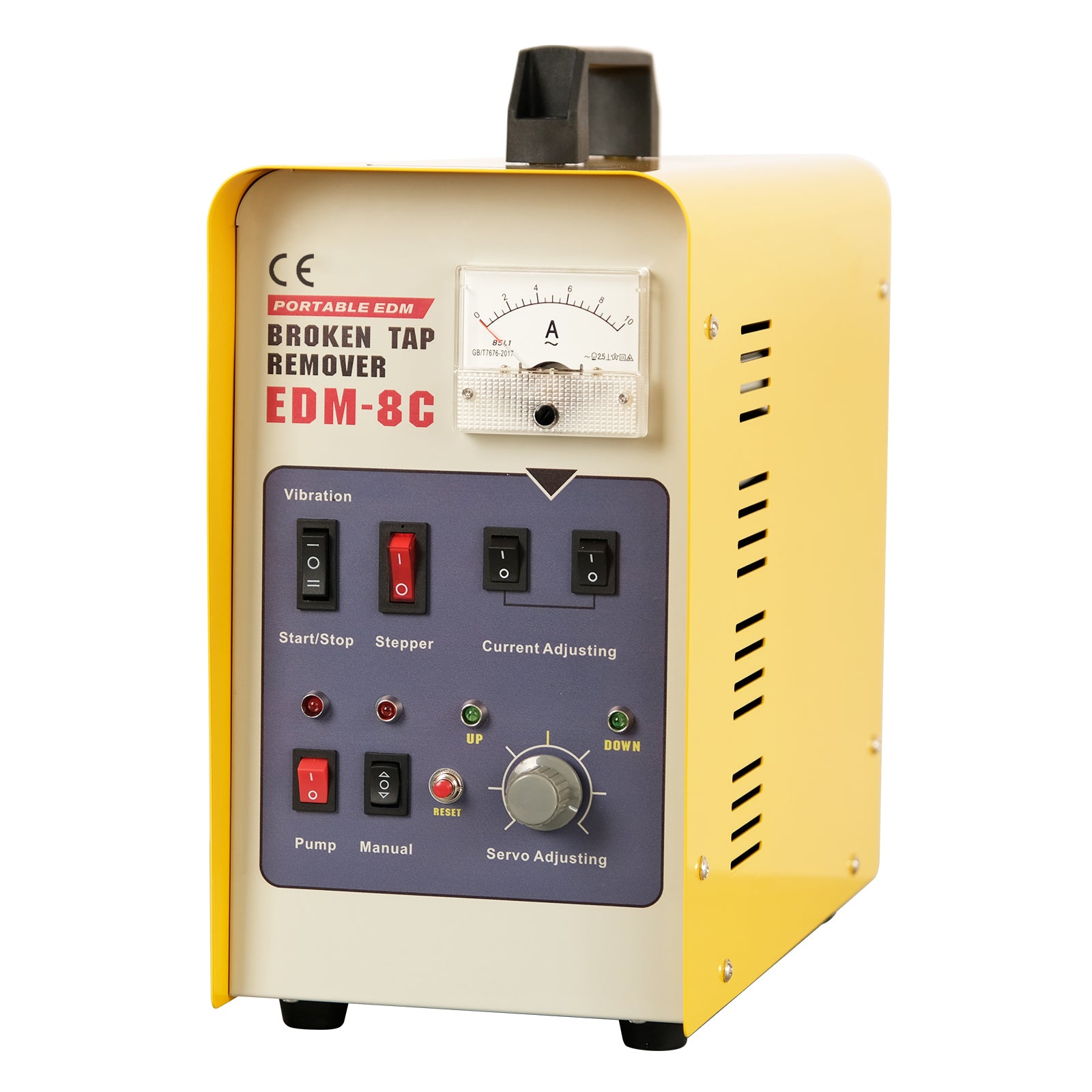

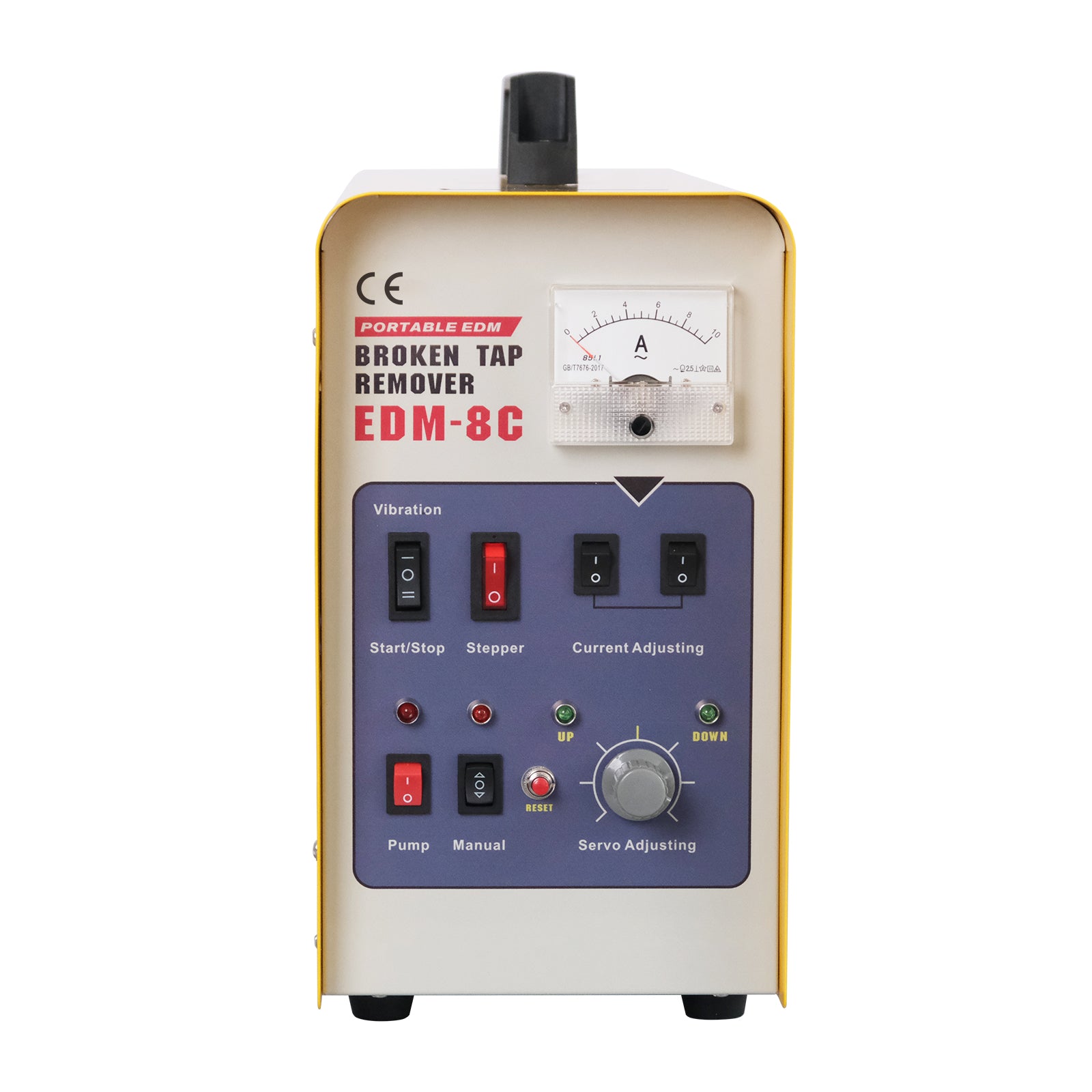

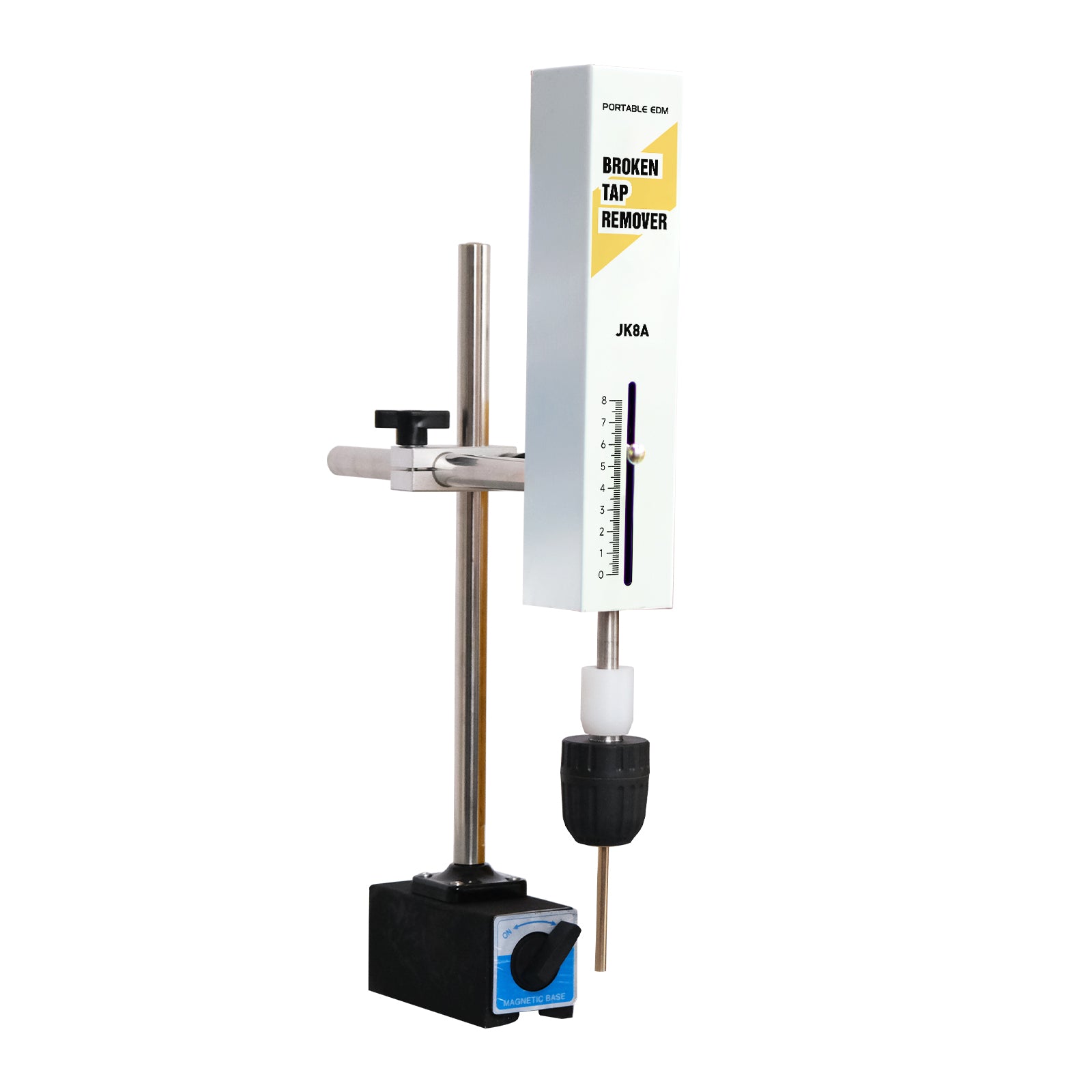

LYXCTECH 800W Portable EDM Machine Broken Tap Remover Tap Burner Tap Disintegrator
LYXCTECH 800W Portable EDM Machine Broken Tap Remover Tap Burner Tap Disintegrator
Couldn't load pickup availability
About this item
About this item
🚀[No damage to threads] Spark erosion principle, can fast remove broken taps, drills, screws,bolts from work pieces without damage to the threads. Removing Size: M2 to M20 (5/64'' to 25/32'').
🚀[High speed] High processing speed: 1mm/min; Dielectric: tap water; Electrode: brass rod Φ0.8~10mm.
🚀[Portability] Small Size, light weight; Easily process on large or heavy work pieces. Used by machine shop,,heavy equipment repair,aircraft, auto/truck repair, etc.
🚀[Depth setting] Depth setting for blind hole; Auto retract and alarm. Reset button for stuck spindle.
🚀[Delivery and Quality Assurance] US Stock, ships by UPS: 5-10 days + 1 year warranty.
Email: lyxctech@gmail.com
oscar@sfxlaser.com
Whatsapp: +86 13592083781
You can also leave us your comment for your interested items. We will respond within 24 hours! Thanks!
LYXCTECH 800W Portable EDM Machine Broken Tap Remover Tap Burner Tap Disintegrator
Fast Remove 5/64'' to 25/32'' broken taps,drills,reamers,bolts (Depth setting for blind hole)
❣️Feature of EDM-8C
- Auto Feed
- Depth setting (stops at a specific depth)
- Selectable arcing timer
- Auto retract
- Swiveling work head
- Alarm messages: depth arrival, arcing, over-temp
- 360-degree adjustment of processing direction
- Portable EDM machine discharges continuously and processes with high-precision control of current
- It is suitable for all sizes of workpiece
- Applications: oil hole drilling, metal marking, remove broken taps, drills, bolts, screws, etc.
- Suitable for large workpieces that are difficult to be processed on EDM machines
❣️Advantages of EDM-8C
- Light, small, portable, and compact design allows the EDM-8C tap remover to be moved and used anywhere in the shop.
- High speed and efficiency at a low cost.
- Simple set up and operation allows easy removal of taps anywhere.
- Power source choices 110V/220V,50/60Hz
- Dielectric Machine uses ordinary tap water as dielectric liquid.
- Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10)
- Small size and magnetic base allow machining even on large work pieces.
- Removes taps with no damage or stress to the work piece.
- Additional applications include cutting tungsten carbide or any other conductive material
