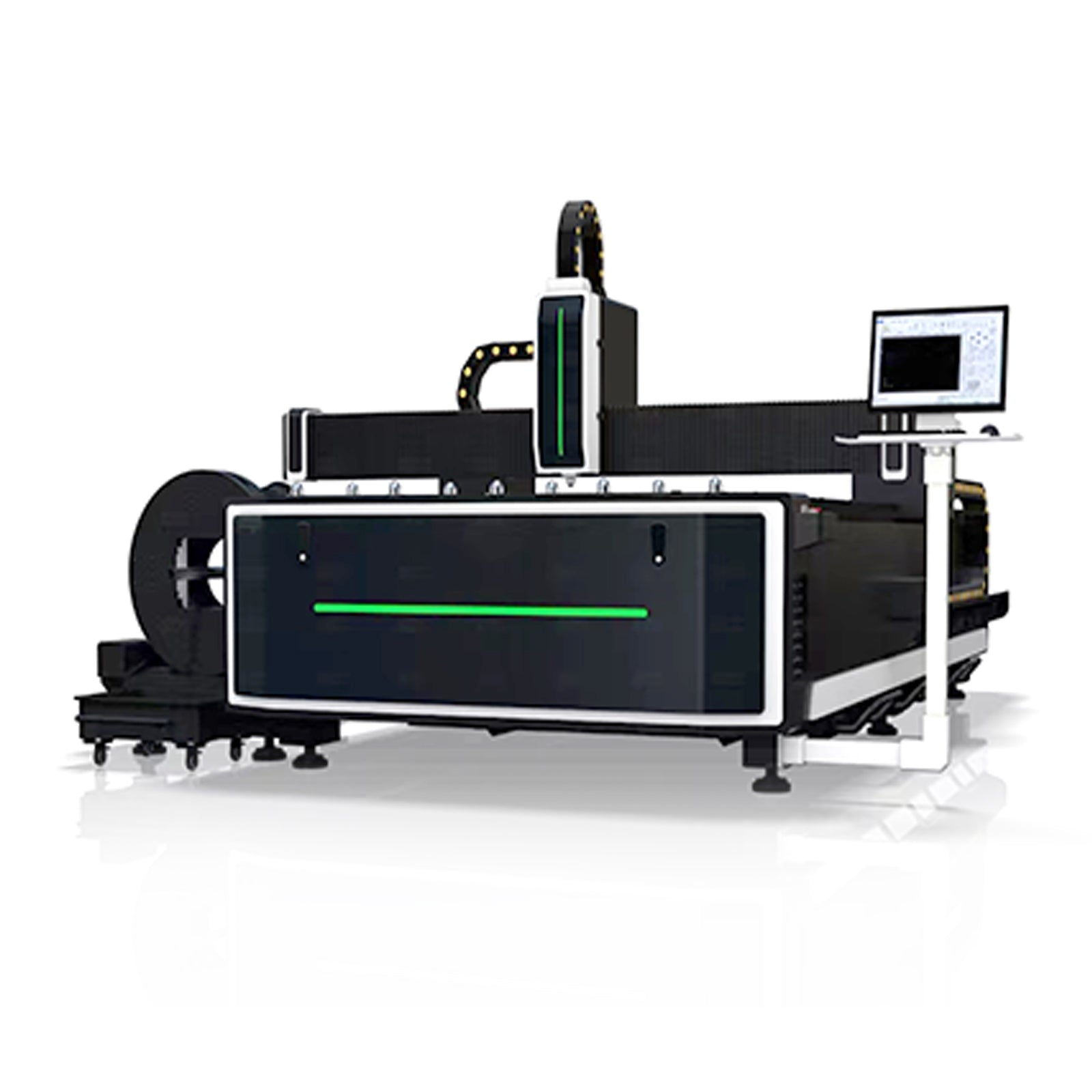

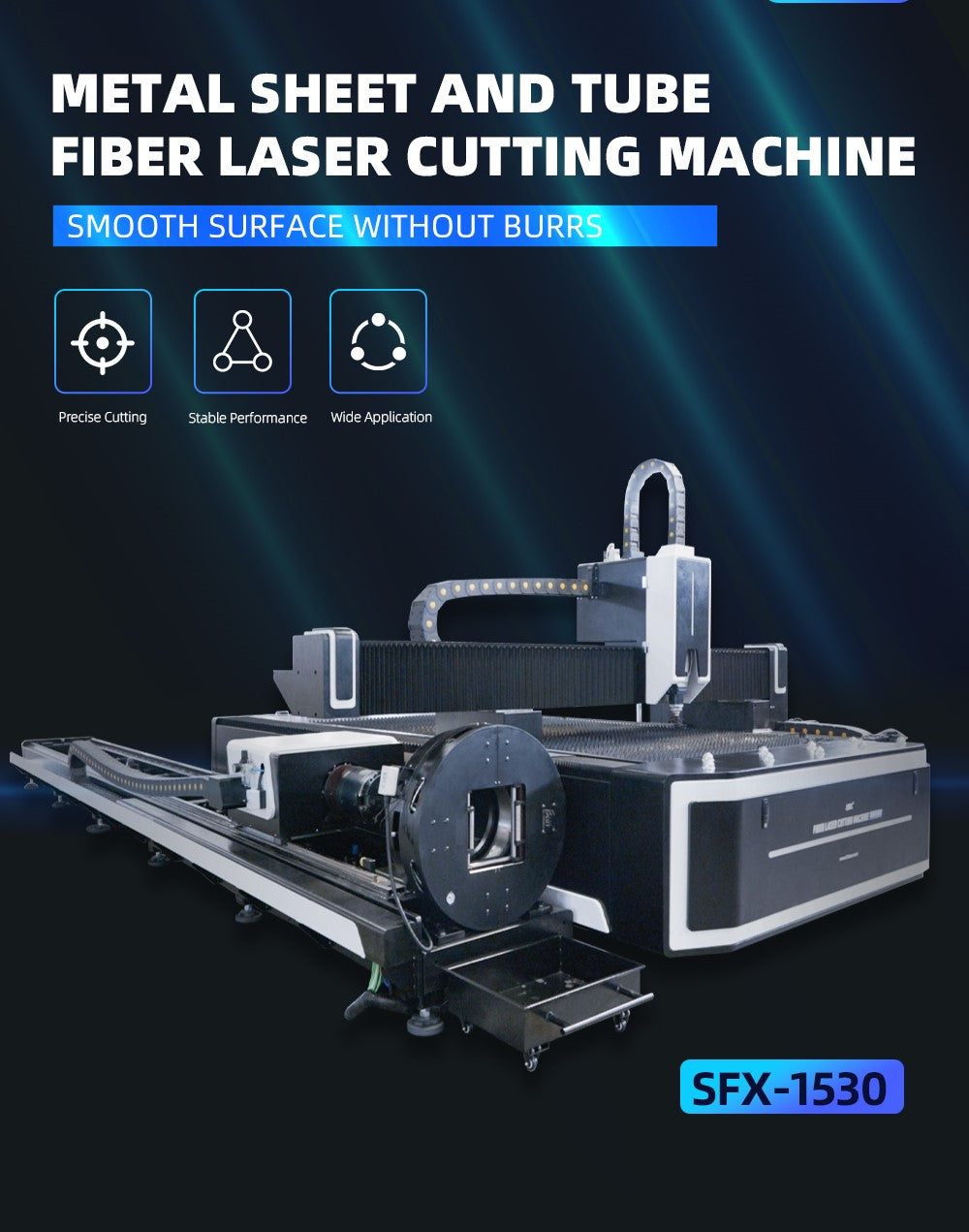

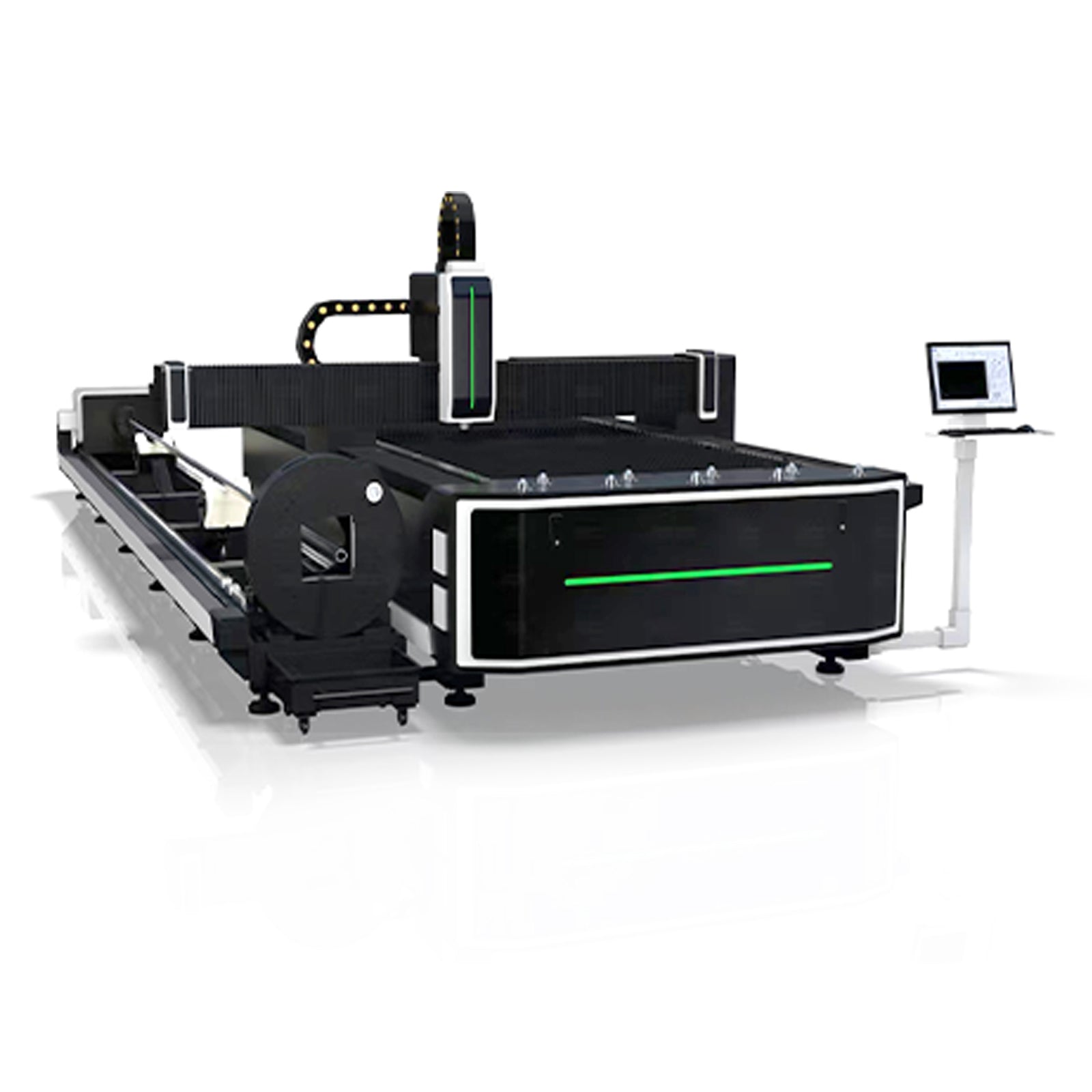

LYXCTECH Metal sheet and tube fiber laser cutting machine SFX-1530 1500*3000mm (5*10ft) Working Area

LYXCTECH Metal sheet and tube fiber laser cutting machine SFX-1530 5×10ft Working Area

★Note:

Due to the large size of the machine, the product will be shipped to the door by sea. Considering the long delivery time, in order to provide better customer service, we will let you see the good quality of the machine before you pay the full payment.
Please contact us. You can pay 30% of the payment first. After the machine is ready, we will accept video inspection. You pay the remaining 70% of the payment before shipment.

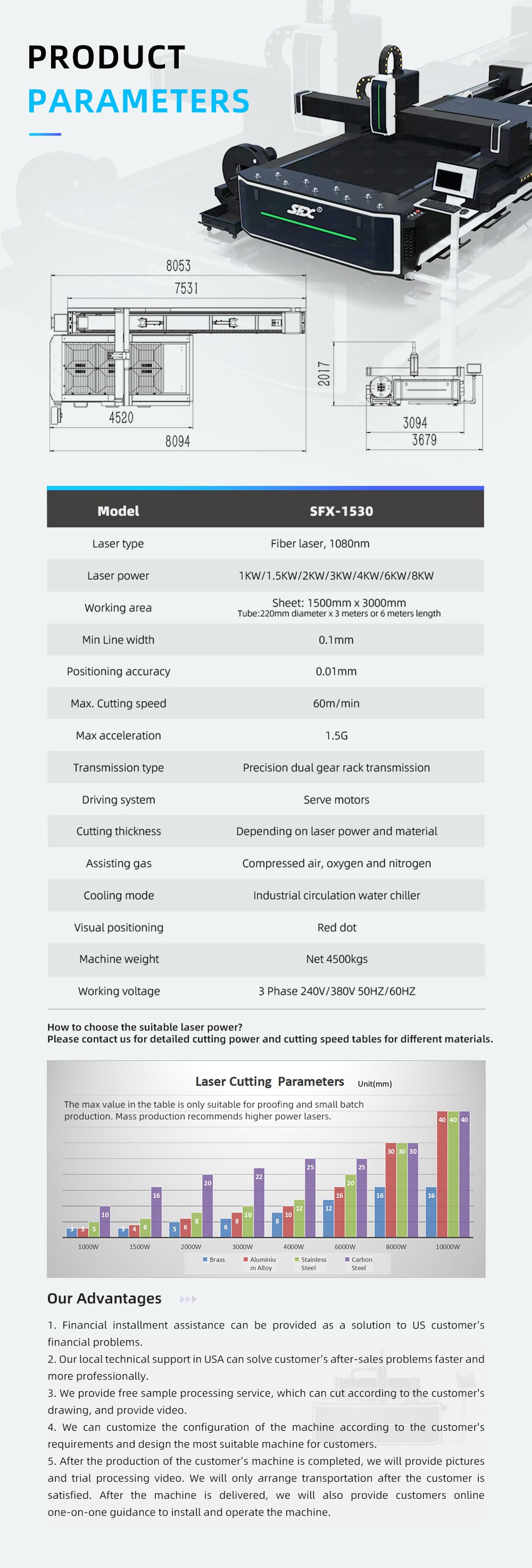

Product parameters

• Model: SFX-1530
• Laser type:Fiber laser, 1080nm
• Laser power:2kw/3kw/6kw optional
• Working area:Sheet 1500*3000mm(5*10ft)
• Min line width:0.1mm
• Positioning accuracy:0.01mm
• Max.cutting speed:60m/min
• Max acceleration:1.5G
• Transmission type:Precision dual gear rack transmission
• Driving system:Serve motors
• Cutting thickness:Depending on laser power and material
• Assisting gas:Compressed air, oxygen and nitrogen
• Cooling mode:Industrial circulation water chiller
• Visual positioning:Red dot
• Machine weight:Net 4500kgs
• Working voltage:3 phase 240V/380V 50HZ/60HZ

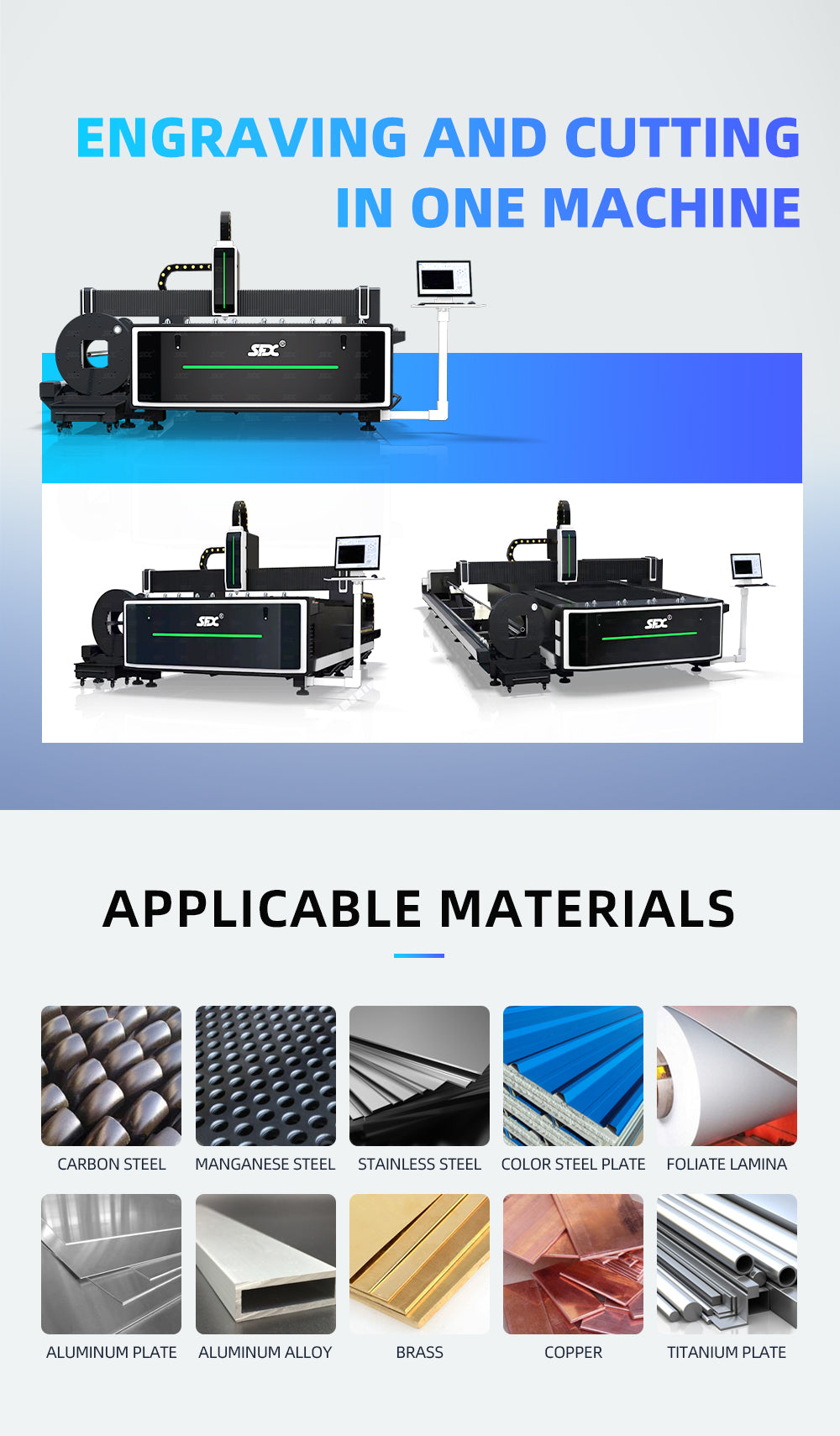

Applicable Materials

• Carbon steel, manganese steel, stainless steel, color steel plate, foliate lamina, aluminum plate, aluminum alloy, brass, copper, titanium plate

Machine Advantages

• One machine with multiple uses:it can not only meet flat plates cutting, but also tubes cutting, saving more than 50% of space and bringing higher efficiency, extremely cost-effective.
• Built-in advanced fiber laser plate cutting system and pipe cutting system, which is easy to switch; the quickly imported part drawings can be processed into different graphics at will.
• The maximum size of metal sheet cutting is 1500*3000mm, and the rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized.
• The beam quality is ideal:smaller focused spot, finer cutting lines, smoother incision, workpiece no deformation, higher work efficiency, and excellent processing quality.

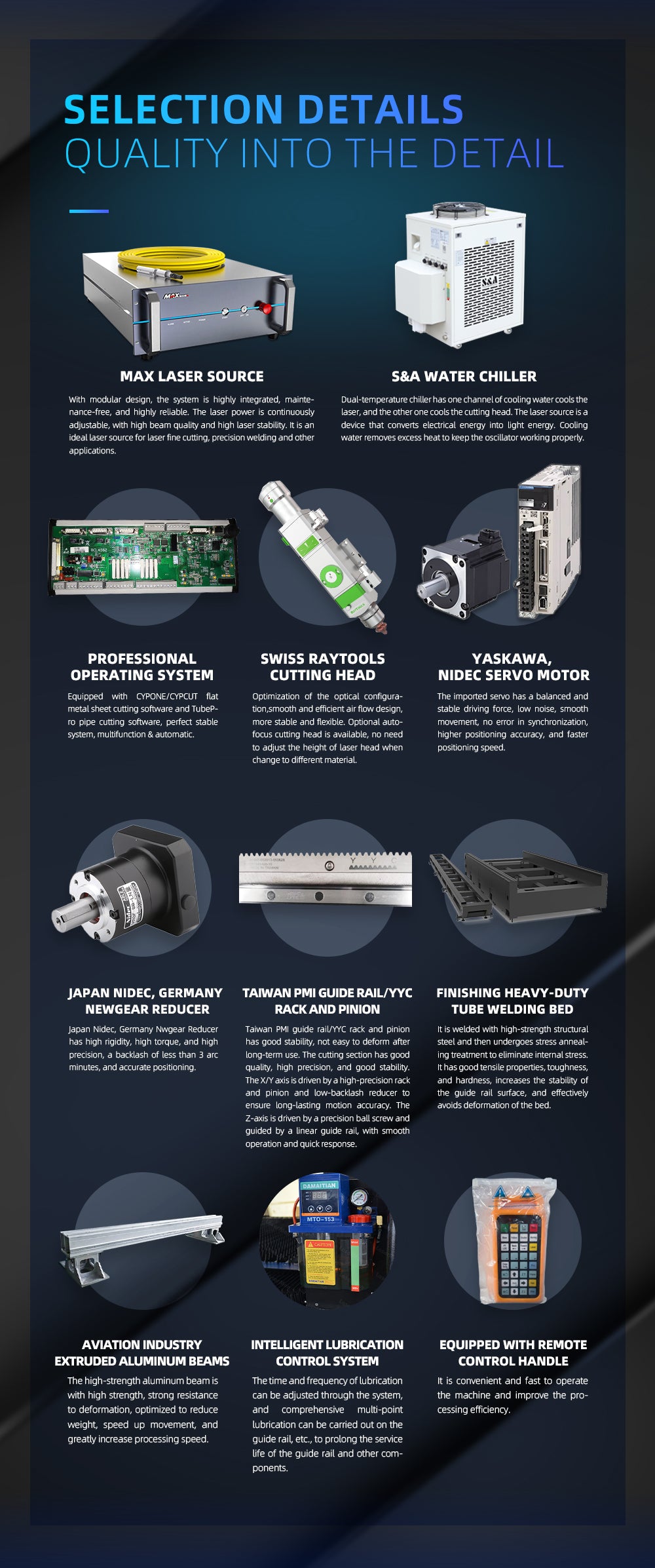

Basic Configuration

• MAX laser source: with modular design, the system is highly integrated, maintenance-free, and highly reliable.
• S&A water chiller: cooling water removes excess heat to keep the oscillator properly.
• Professional operating system: equipped with CYPONE/CYPCUT flat metal sheet cutting software.
• Swiss raytools cutting head
• YASKAWA nidec servo motor
• Japan nidec, Germany newgear reducer
• Taiwan pmi guide rail/YYC rack and pinion
• Finishing heavy-duty tube welding bed
• Aviation industry extruded aluminum beams
• Intelligent lubrication control system
• Equipped with remote control handle

Shipping policy

• All prices are including shipping to your door
• Order processing time: 10 to 20 business days
• Delivery time: 30 to 45 days

Warranty policy

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within two years. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
