SFX Industrial Technology Co.,Ltd.

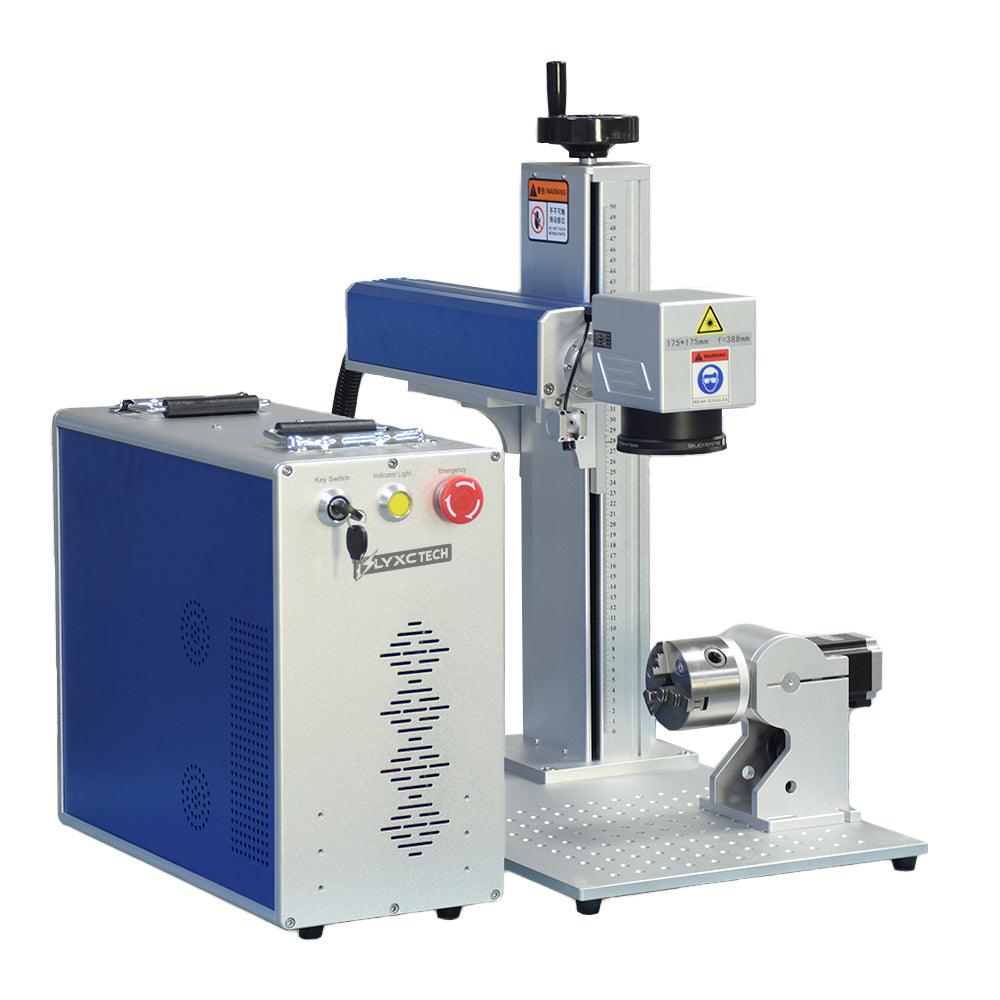

Second-hand 60W YDFLP-M7-M-R Fiber Laser Engraver Laser Marking Machine JPT MOPA M7 175*175mm Lens D80 Rotary Axis

Second-hand 60W YDFLP-M7-M-R Fiber Laser Engraver Laser Marking Machine JPT MOPA M7 175*175mm Lens D80 Rotary Axis

$6,939.00 USD
$6,939.00 USD
Sale Sold out
Import Duty Included.Shipping calculated at checkout.
Laser Power
Lens
Rotary Axis

About this item

🚀Laser Power: 60W/80W/100W/120W+Marking Field(Lens): 70/110/150/175/220/300mm+Engraving Depth:≤1.0~2.0mm+D80/D100/D125 Rotary Axis+EZCAD2.0(Compatible with Lightburn)

🚀Laser Source: MOPA JPT M7(YDFLP-E-M7-M-R); Maximum Pulse Energy: 1.5-2.0mJ; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-500ns

🚀Application Advantage: Metal surface processing, peeling coating; Aluminum black marking; Semi-conductor&electronics industry applications; Large area engraving; Excellent marking effect on plastic or other sensitive material; Black and color marking on stainless steel.

🚀High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

🚀Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.

Email: lyxctech@gmail.com
Whatsapp: +86 13592083781

You can also leave us your comment for your interested items. We will respond within 24 hours! Thanks!

Fiber Laser Engraver MOPA Fiber Laser Marking Machine JPT MOPA M7 YDFLP-M7-M-R 1064nm

👍Features & Advantages:

  • Laser Source: 60W/80W/100W YDFLP-M7-M-R JPT MOPA M7
  • Adjustable Frequency Range: 1-4000kHz
  • Adjustable Pulse Width Range : 2-500ns@60W
  • Maximum Pulse Energy: 2.0mJ@60W
  • Marking Area(Lens): 175*175mm

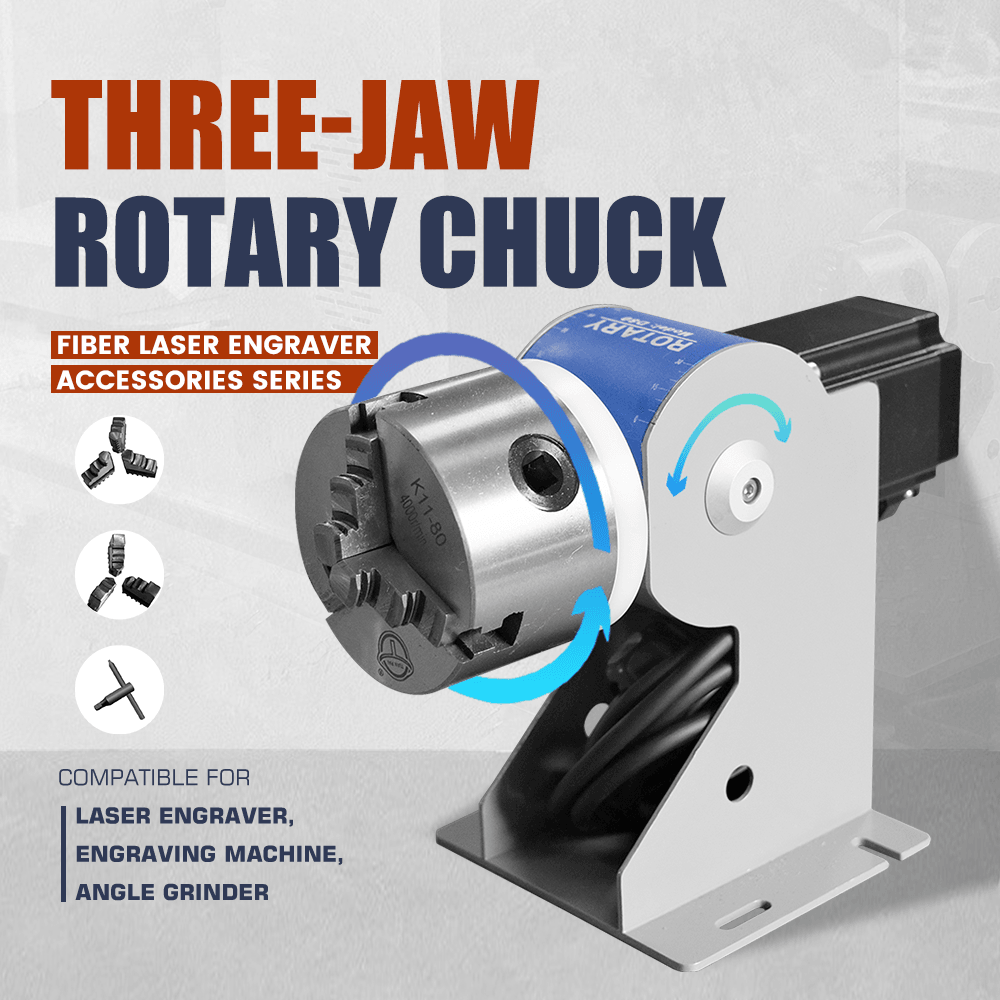

  • Rotary Axis: D80
  • Software: EZCAD2 (Compatible with Lightburn)
  • Imported laser scanning system makes the marking speed up to 7m/s; Re-position Precision is 0.002mm; High-Rate of Electrical-Optical Conversion: up to 70%.
  • 2 Years Warranty. Customer and Technical Support. Easy Operation, English User Manual, Training Video, Software Sending Together with the Machine.
  • Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF fonts.
  • Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.
  • Applicable Material: Aluminum, Stainless Steel, Brass, Copper, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
  • Application Advantages: Metal Surface Processing, Peeling Coating; Aluminum Black Marking; Semi-conductor & Electronics Industry Applications; Large Area Engraving; Excellent Marking Effect on Plastic or Other Sensitive Material; Color Marking on Stainless Steel.
  • Applicable Industry: Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.

✈️Shipping Policy:

  • All of our laser machines would be shipped by express like DHL/UPS/FedEx/TNT.
  • All prices are including shipping to your door.
  • Order processing time: 2 to 3 business days.
  • Delivery time: 7 to 15 days.

❣️Warranty Policy:

  • 1. The warranty period of this product is two years.
  • 1.1 From the date of purchasing this product, our company provides free warranty within one year. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
  • 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
  • 2. The following scopes are not covered by warranty:
  • 2.1 Damage caused by improper use such as violent bumping, bending, etc.
  • 2.2 Human-caused damage
  • 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
