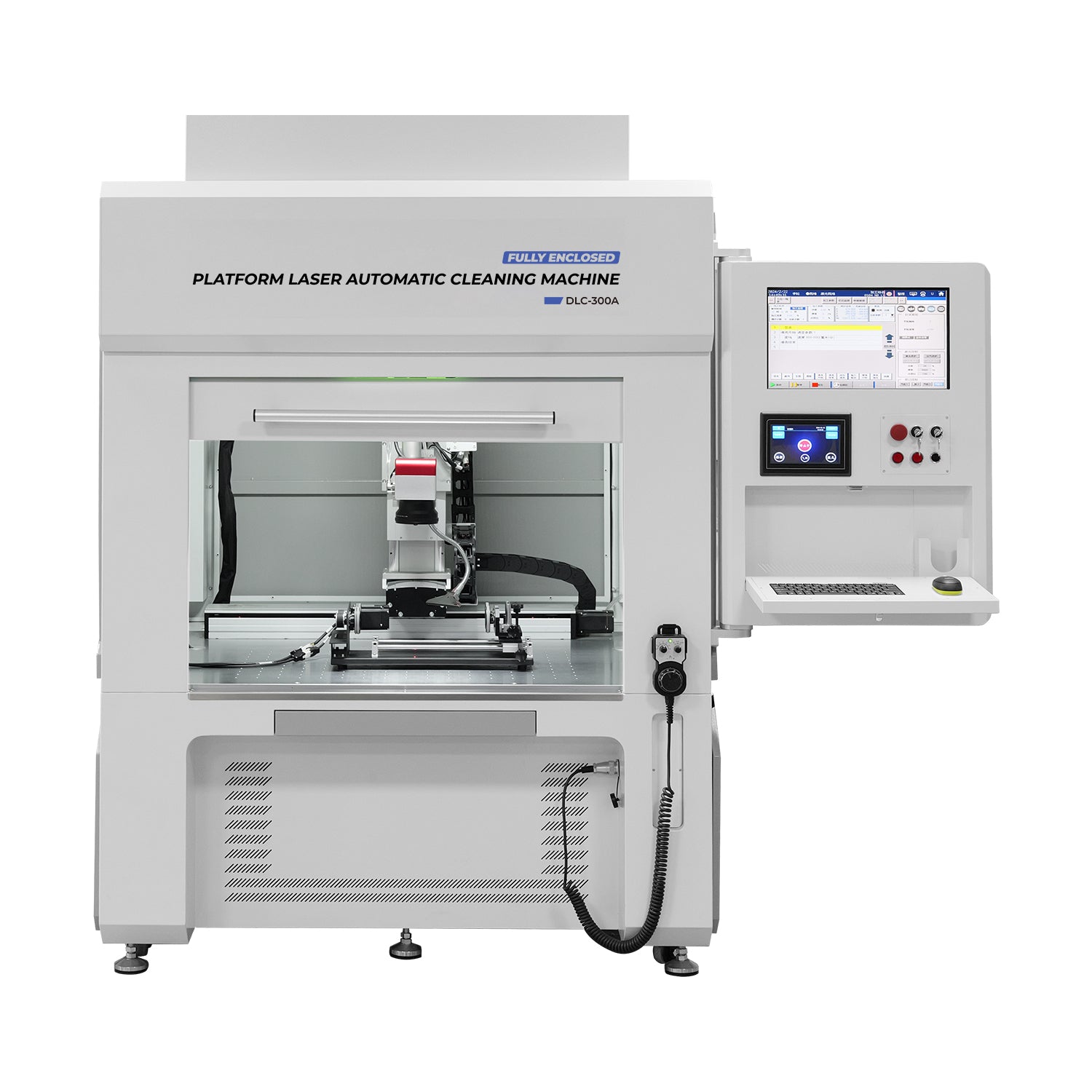

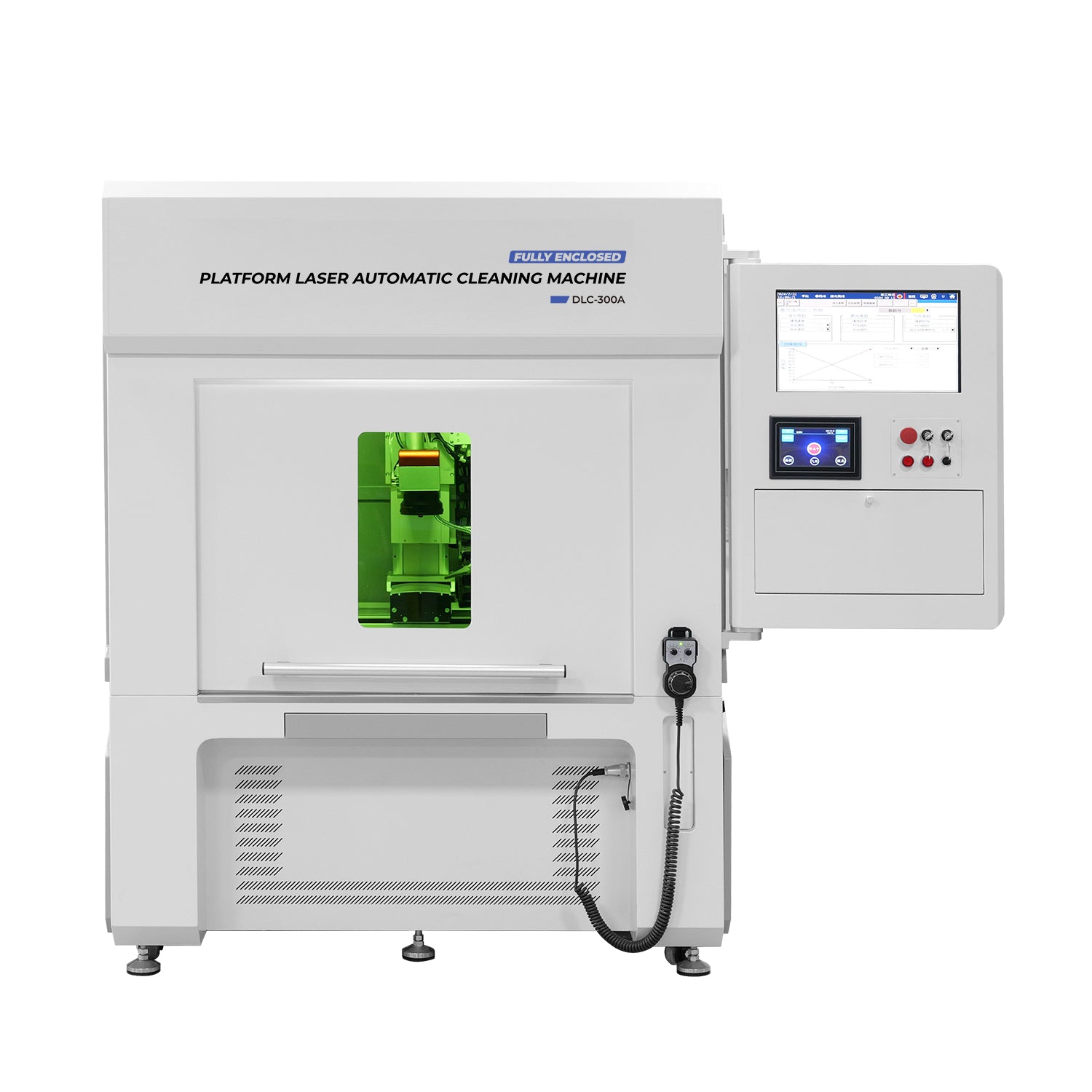

LYXCTECH Fully Enclosed Platform Automatic Laser Cleaning Machine 300W/500W With 1300*970mm Working Area

LYXCTECH Fully Enclosed Platform Automatic Laser Cleaning Machine 300W/500W With 1300*970mm Working Area
——Automatic online cleaning, remove floating rust, paint, oil and plating layer

★Note:

Due to the large size of the machine, the product will be shipped to the door by sea. Considering the long delivery time, in order to provide better customer service, we will let you see the good quality of the machine before you pay the full payment.
Please contact us. You can pay 30% of the payment first. After the machine is ready, we will accept video inspection. You pay the remaining 70% of the payment before shipment.

👍Product Parameters

• Model: DLC-200A, DLC-300A, DLC-500A
• Laser power: 200W, 300W, 500W
• Laser wavelength: 1064±10nm
• Operation mode: Pulsed
• Pulse width: 10-500ns
• Modulation frequency: 1-4000kHz(DLC-200A) 1-3000kHz(DLC-300A，DLC-500A)
• Cleaning space size: Standard configuration lens 330mm, scanning area10-250mm.(Optional lens 254mm，Scanning area 10-175mm/420mm, scanning area10-300mm)
• Workbench size: 1300*970mm
• XYZ Stroke: 800*400*400mm
• Input voltage: AC220V±10%
• Input power: 3kw,3.5kw,5kw
• Cooling method:Air cooling (DLC-200A) ,air/water cooling(DLC-300A),water cooling(DLC-500A)
• Water tank capacity: 16L
• Machine size:L*W*H 1580*1440*1900mm
• Packing size: L*W*H 1800*1600*2100mm
• Net weight:580kg(Machine) 50kg（Chiller）
• If you need a 200W model, please contact us directly and we will give you a suitable price.

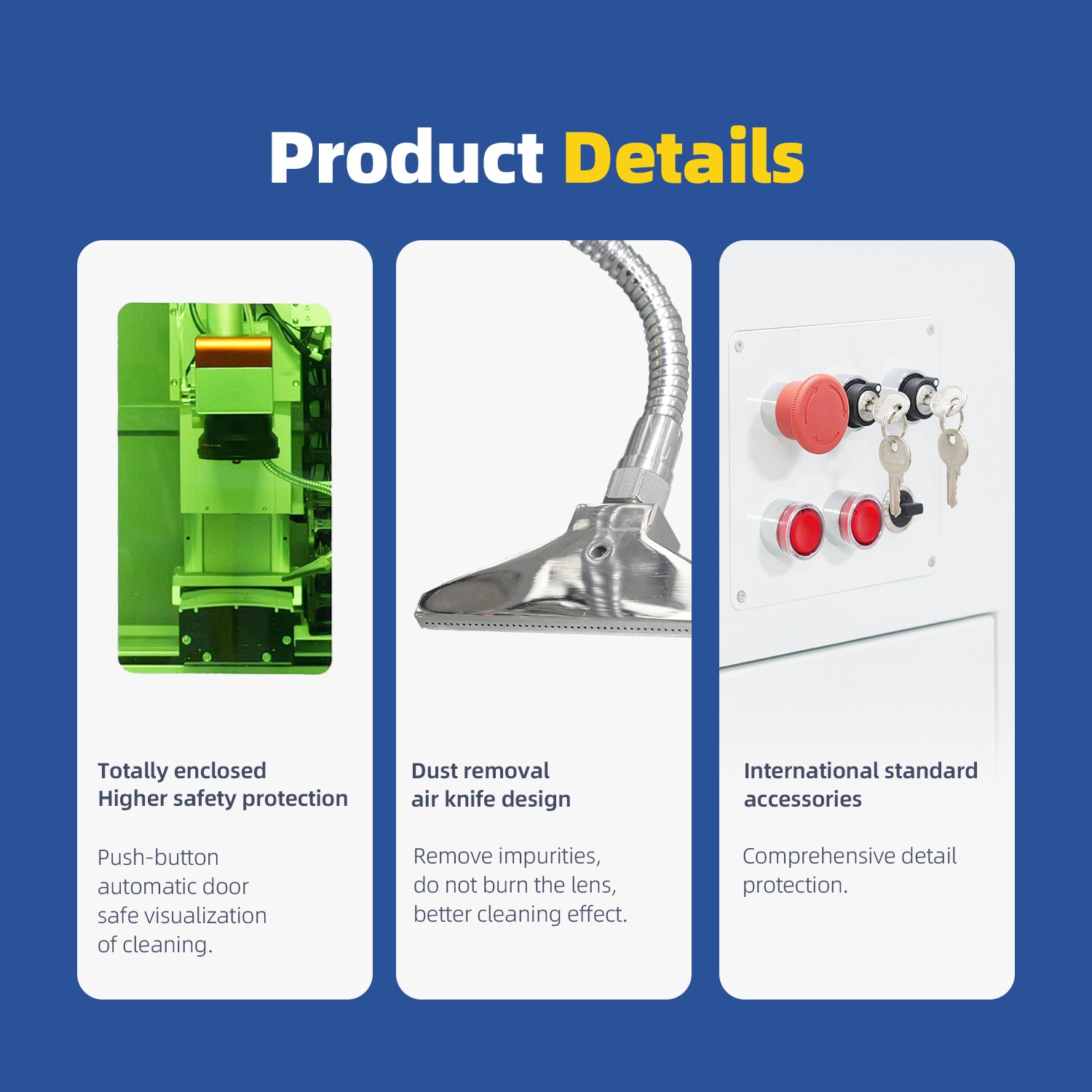

👐Product details

• Totally enclosed higher safety protection, push-button automatic door safe visualization of cleaning
• Dust removal air knife design, remove impurities, do not burn the lens, better cleaning effect.

👑Applicable Industries

• Aerospace&marine, electromechanical, rubber molds, auto parts, equipment manufacturing, food processing
• Rubber residue removal, metal surface removal, oil/stain removal, plating/coating removal, welding surface, painting surface pretreatment, paint stripping, tire mold residue removal, cleaning and restoration of artifacts.

🌷Shipping Policy

• All prices are including shipping to your door.
• Order processing time: 10 to 20 business days.
• Delivery time: 30 to 45 days.

🌳Warranty Policy

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within two years. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
