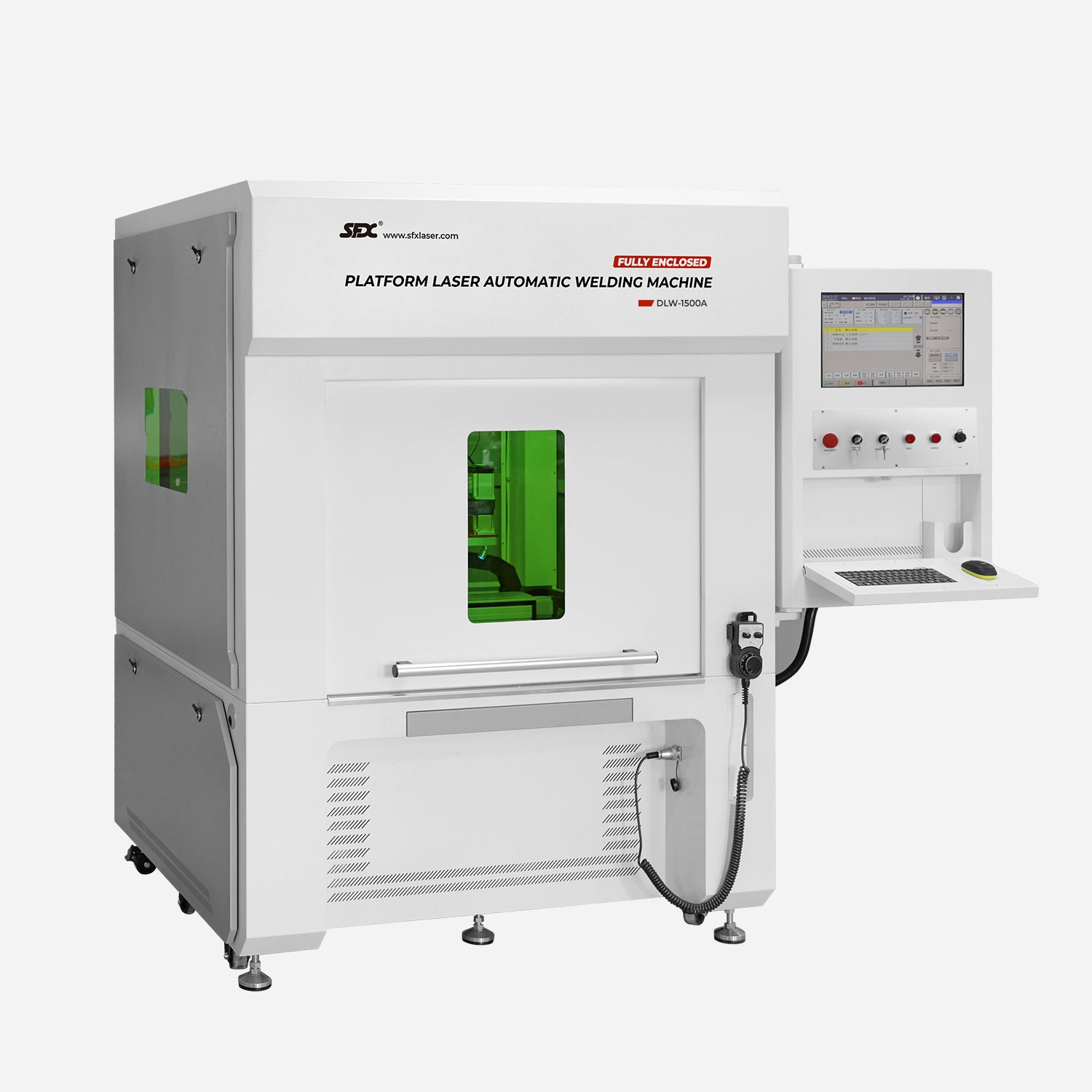

LYXCTECH Fully Enclosed Platform Automatic Laser Welding Machine 1500W/2000W/3000W With 1300*970mm Working Area

LYXCTECH Fully Enclosed Platform Automatic Laser Welding Machine 1500W/2000W/3000W With 1300*970mm Working Area

--Welding of stainless steel, mold steel, carbon steel, aluminum, zinc, nickel and other materials

★Note:

Due to the large size of the machine, the product will be shipped to the door by sea. Considering the long delivery time, in order to provide better customer service, we will let you see the good quality of the machine before you pay the full payment.
Please contact us. You can pay 30% of the payment first. After the machine is ready, we will accept video inspection. You pay the remaining 70% of the payment before shipment.

👍Product Parameters

• Model: DLW-1500A/DLW-2000A/DLW-3000A
• Laser Power: 1500W/2000W/3000W
• Laser Wavelength: 1080±10nm
• Laser Mode: Continuous/Modulation
• Max.frequency: 20Khz
• Welding Width: 1-5mm
• Welding Depth: 4mm/5mm/8mm
• Workbench Size: 1300*970mm
• XYZ Stroke: X*Y*Z 800*400*400mm
• Input Voltage: AC220V±10% AC380V±10%（DLW-3000A）
• Input Power: 8kw,10kw,13kw
• Cooling Method: External Chiller (Medium deionized water, distilled water or purified water)
• Water tank capacity: 16L
• Machine Dimension: 1580*1440*1900mm
• Package Dimension: 1800*1600*2100mm
• Net Weight: 580kg(Machine) 50kg(Chiller)

👐Product details

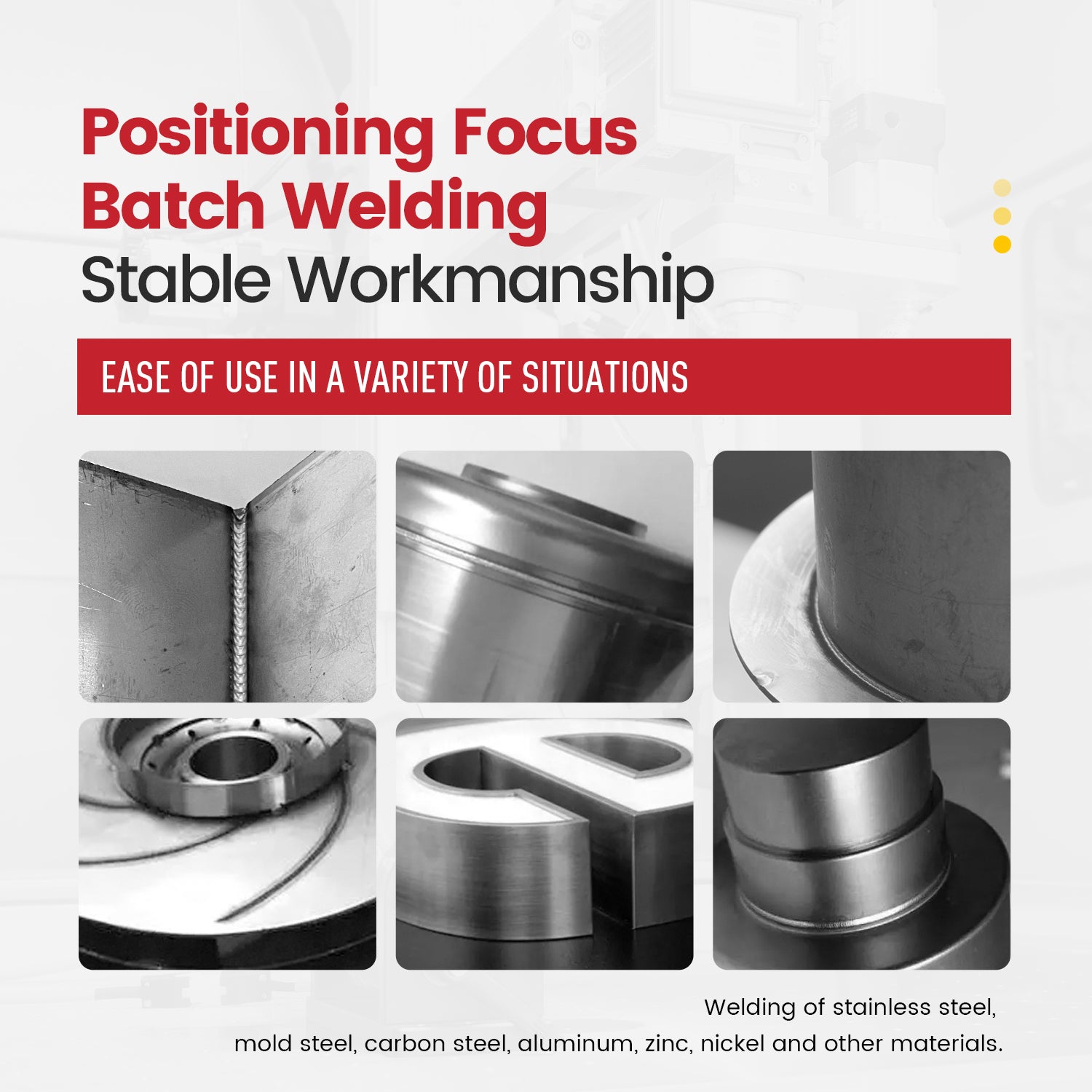

• Positioning focus batch welding, stable workmanship
• Full range of cnc systems, cross-stage stability, smoother welding
• Fully enclosed automatic door, higher safety and security
• Complete steel plate grinding workbench, strudy and durable structure
• Standard CCD observation system, real-time welding effect observation
• Built-in protective gas port, automatic outgassing, no burning of lenses

🌷Shipping Policy

• All prices are including shipping to your door.
• Order processing time: 10 to 20 business days.
• Delivery time: 30 to 45 days.

🌳Warranty Policy

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within two years. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
