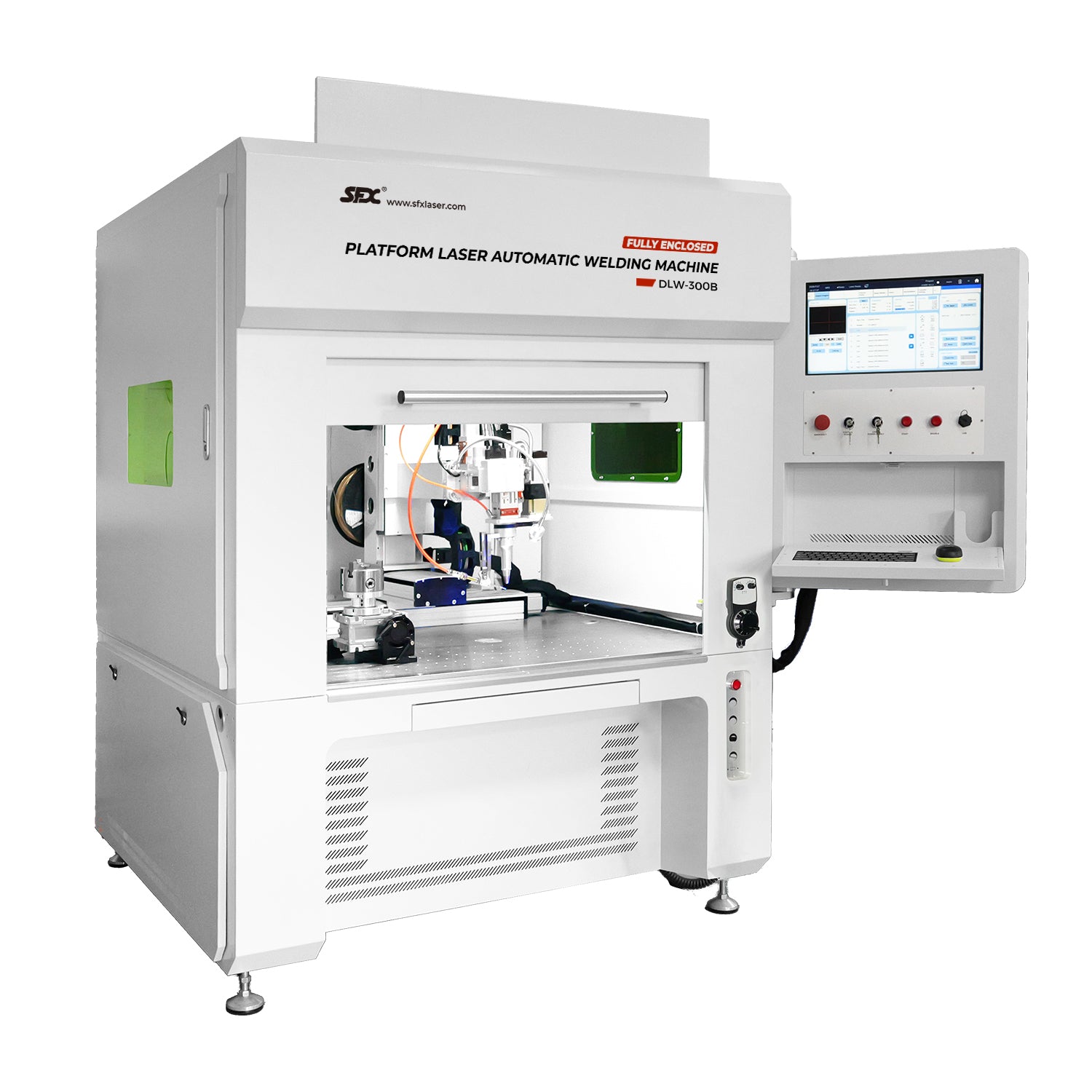

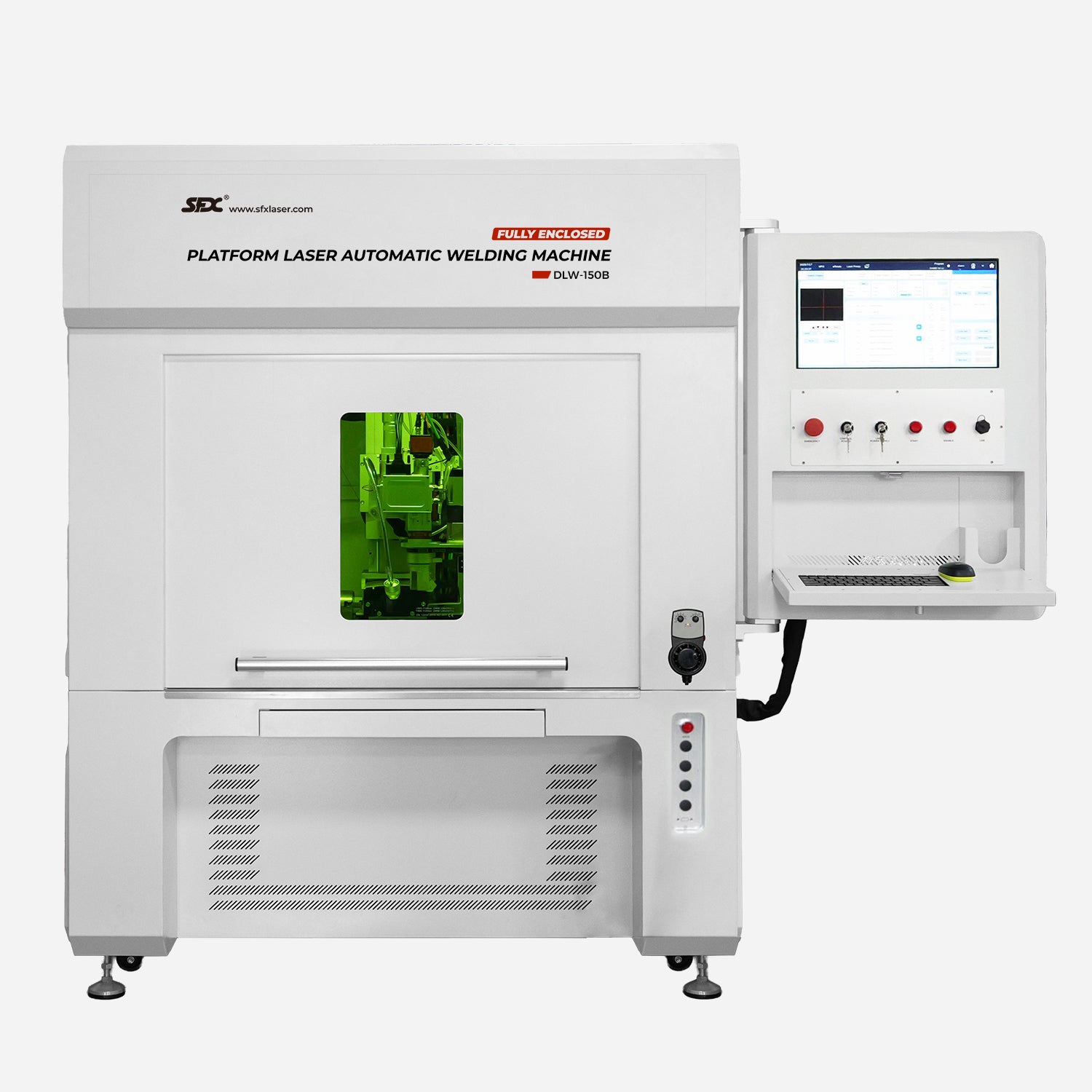

LYXCTECH Fully Enclosed Platform Automatic Laser Welding Machine 150W 300W

LYXCTECH Fully Enclosed Platform Automatic Laser Welding Machine 150W/300W

——Welding of stainless steel, mold steel, carbon steel, aluminum, zinc, nickel and other materials

👍Product Parameters

• Model: DLW-150B/DLW-300B
• Laser Power: 150W/300W
• Laser Peak Power: 1500W/3000W
• Laser Wavelength: 1080±2nm
• Laser Mode: Continuous/Modulation
• Max.Frequency: 20kHz
• Power Adjustment Range: 10%-100%
• Max. Single Pulse Energy: Customizable
• Pulse Width Range: 15mj/30mj
• Stroke: 0.005-50ms

• Input Voltage: AC220V±10%

• Total Power: 2.5kW/3.5kW
• Cooling Method: Air Cooling

👐Product details

• Positioning focus batch welding, stable workmanship
• Full range of CNC systems, cross-stage stability, smoother welding
• Fully enclosed automatic door, higher safety and security
• Complete steel plate grinding workbench, strudy and durable structure
• Standard CCD observation system, real-time welding effect observation
• Built-in protective gas port, automatic outgassing, no burning of lenses

🌷Shipping Policy

• All prices are including shipping to your door.
• Order processing time: 10 to 20 business days.
• Delivery time: 30 to 45 days.

🌳Warranty Policy

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within two years. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
