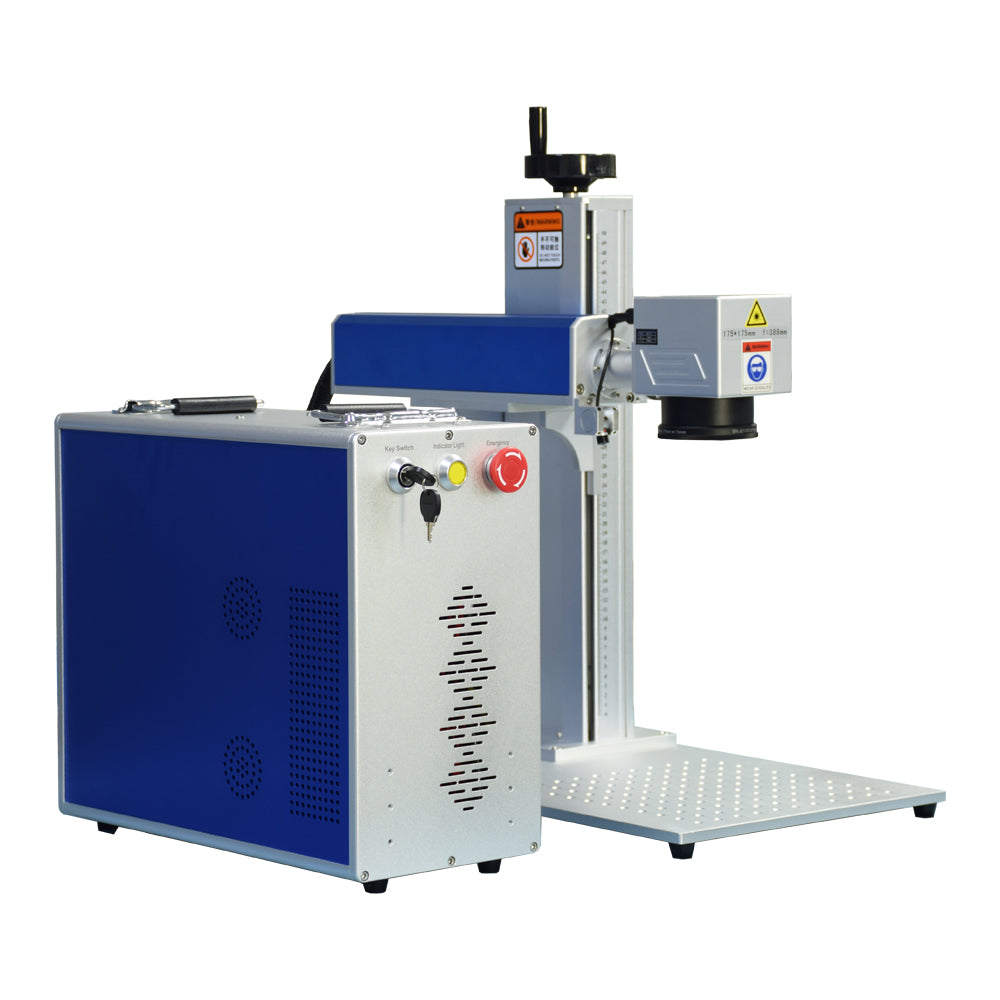

JPT 50W Fiber Laser Marking Machine Fiber Laser Engraver Compatible with Lightburn
JPT 50W Fiber Laser Marking Machine Fiber Laser Engraver Compatible with Lightburn
Couldn't load pickup availability
About this item
About this item
🚀Laser Power: 20W/30W/50W; Imported laser scanning system makes the marking speed up to 7m/s. Electrical requirements: 110V-240/50Hz-60Hz. Marking content: barcodes, serial numbers, text, vector, and logos.
🚀Laser Source: JPT; Repetition Rate Frequency : 1-600kHZ; Pulse Duration: 200ns; Central Emission Wavelength: 1064nm; Output power adjustment range 10%-100%.
🚀Application Advantages: Silicone Keypad Marking; Metal Deep Engraving; Metal Surface Processing; High Frequency Line Processing; The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop; PLT,PCX,DXF,BMP,etc supported.
🚀Applicable Material: Gold, Silver, Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
🚀2 years warranty. Customer and Technical Support; Easy Operation, English User Manual, VCD training video, software sending together with the machine. Ships by UPS/FedEx to door around 5 to 7 days.
Email: lyxctech@gmail.com
oscar@sfxlaser.com
Whatsapp: +86 13592083781
You can also leave us your comment for your interested items. We will respond within 24 hours! Thanks!
LYXCTECH JPT 50W Fiber Laser Marking Machine Fiber Laser Engraver Compatible with Lightburn
Used machine after-sales policy: One-year warranty on the whole machine.
👍Advantages of Laser Marking Machine
- Long lifespan, free maintenance and low cost
- Fast marking speed: 7000mm/s
- High repeat precision: 0.002mm
- High rate of electrical-optical conversion: 70%
- Compatible with multiple file formats: Coreldraw, AutoCAD, photoshop; PLT, PCX, DXF, BMP, etc.
- English user manual and training video sending together with the machine
👏Product Parameter

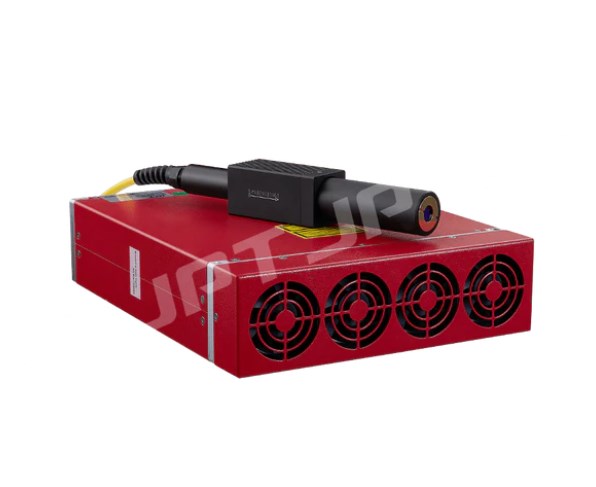

- Laser Source: 50W JPT LP+
- Adjustable Frequency Range: 1-600kHz
- Pulse Width: 200ns
- Marking Area(Lens): 175*175mm(6.9*6.9in)
- Rotary Axis: D80
- Engraving Depth: 50W≤1mm(0.039in)
- Minimum Line Width 0.01mm(0.004in); Minimum Character 0.02mm(0.008in)
- Software: EZCAD2 (Compatible with Lightburn) / EZCAD3 Support Windows XP/Vista/7/8/10
- Imported Laser Scanning System. Marking Speed≤7m/s; Re-position Precision: 0.002mm; High-Rate of Electrical-Optical Conversion: 70%
- Compatible with Multiple File Formats: Coredraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc Supported. Directly use SHX, TTF Fonts.
- Automatic Encoding, Printing Serial Number, Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc Supported.
- Red Dot Pointer: Since the laser beam is invisible, the red dot pointer allows you to have a visual reference for locating where the laser will fire.
📶Applicable Materials
- Aluminum, Stainless Steel, Brass, Copper, etc. Also Some of Nonmetal Such as Nylon, Light Button, ABS, PVC, PES, etc.
📶Applicable Industry
- Hardware Industry, Wrenches, Measuring Tools, Sanitary Ware, Stainless Steel, Medical Equipment, Luggage, Gifts, Table Bottom, Glasses Frames, Instruments.
✈️Shipping Policy:
- All of our laser machines would be shipped by express like DHL/UPS/FedEx/TNT.
- All prices are including shipping to your door.
- Order processing time: 2 to 3 business days.
- Delivery time: 7 to 15 days.
