LYXCTECH US STOCK Magnetic Drill Press Machine 1100W/1500W/2500W Drill Machine

LYXCTECH 1100W/1500W/2500W Magnetic Drill Press Drill Machine

-Widely used in steel structure, drilling rig, electric power construction, etc

⊙Advantages of Magnetic Drill Press

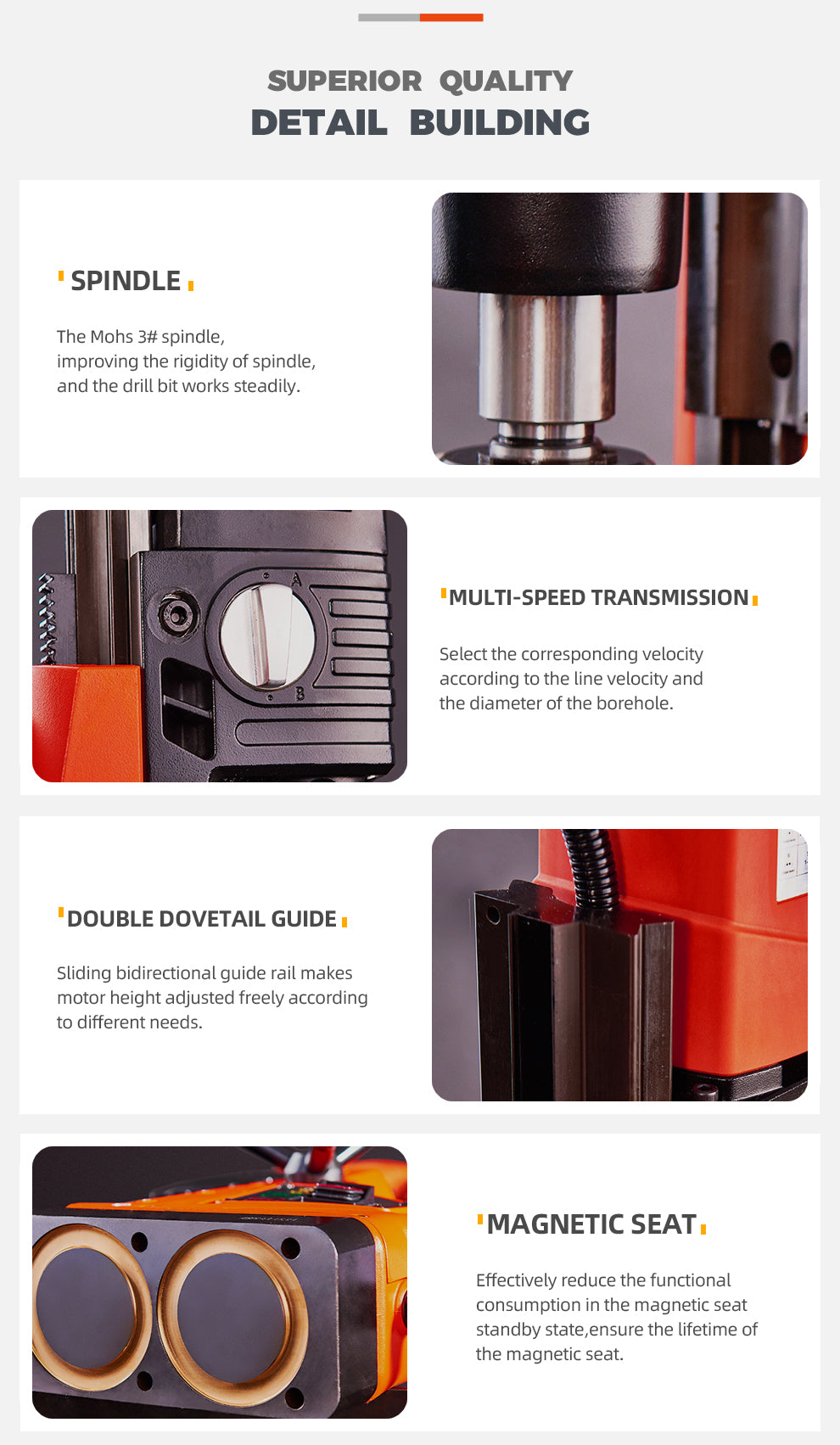

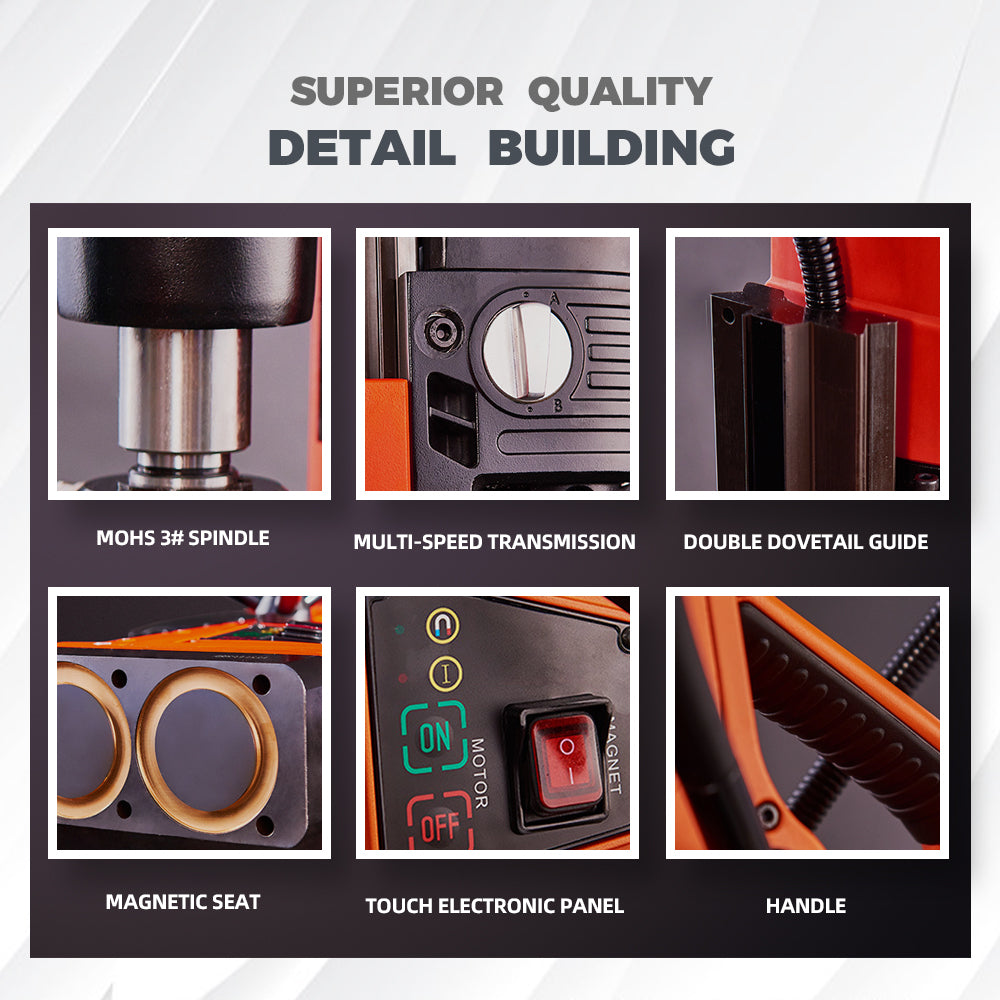

• Th Mohs 3# Spindle improves the rigidity of spindle so that the drill bit or cutter works steadily.

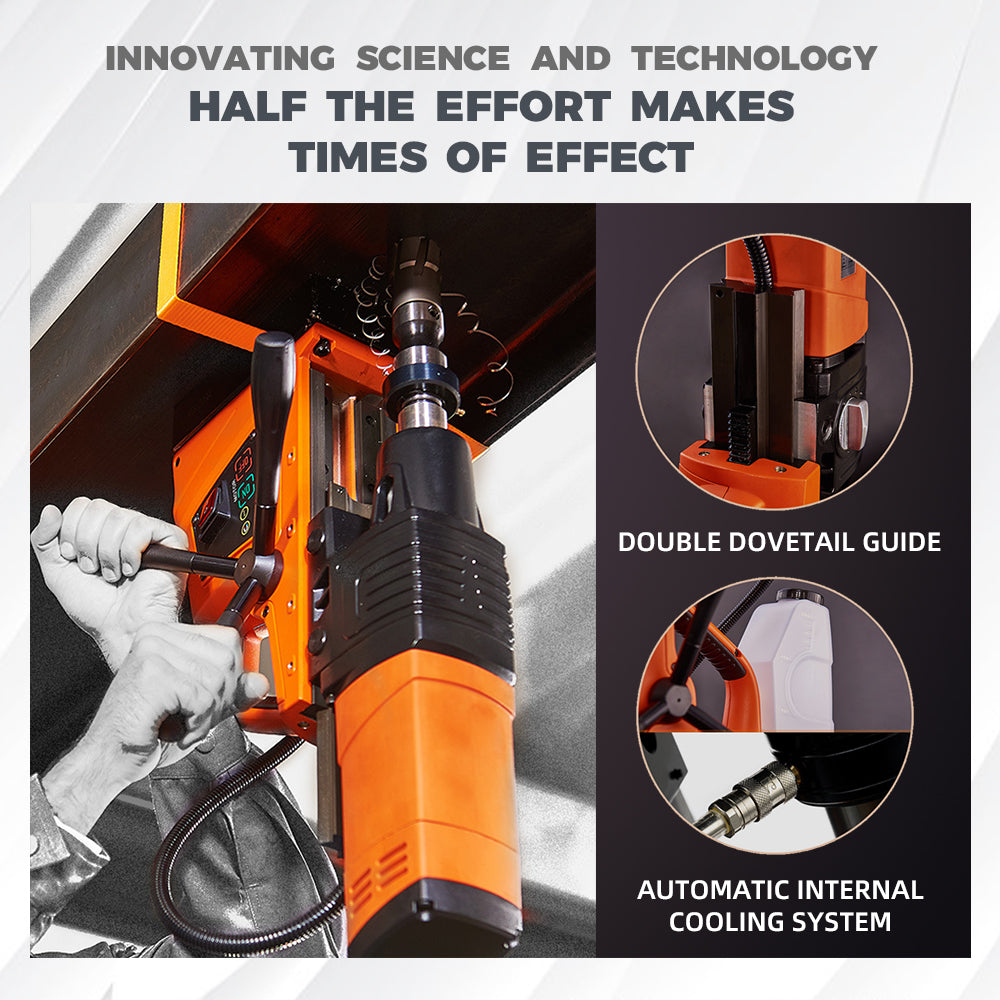

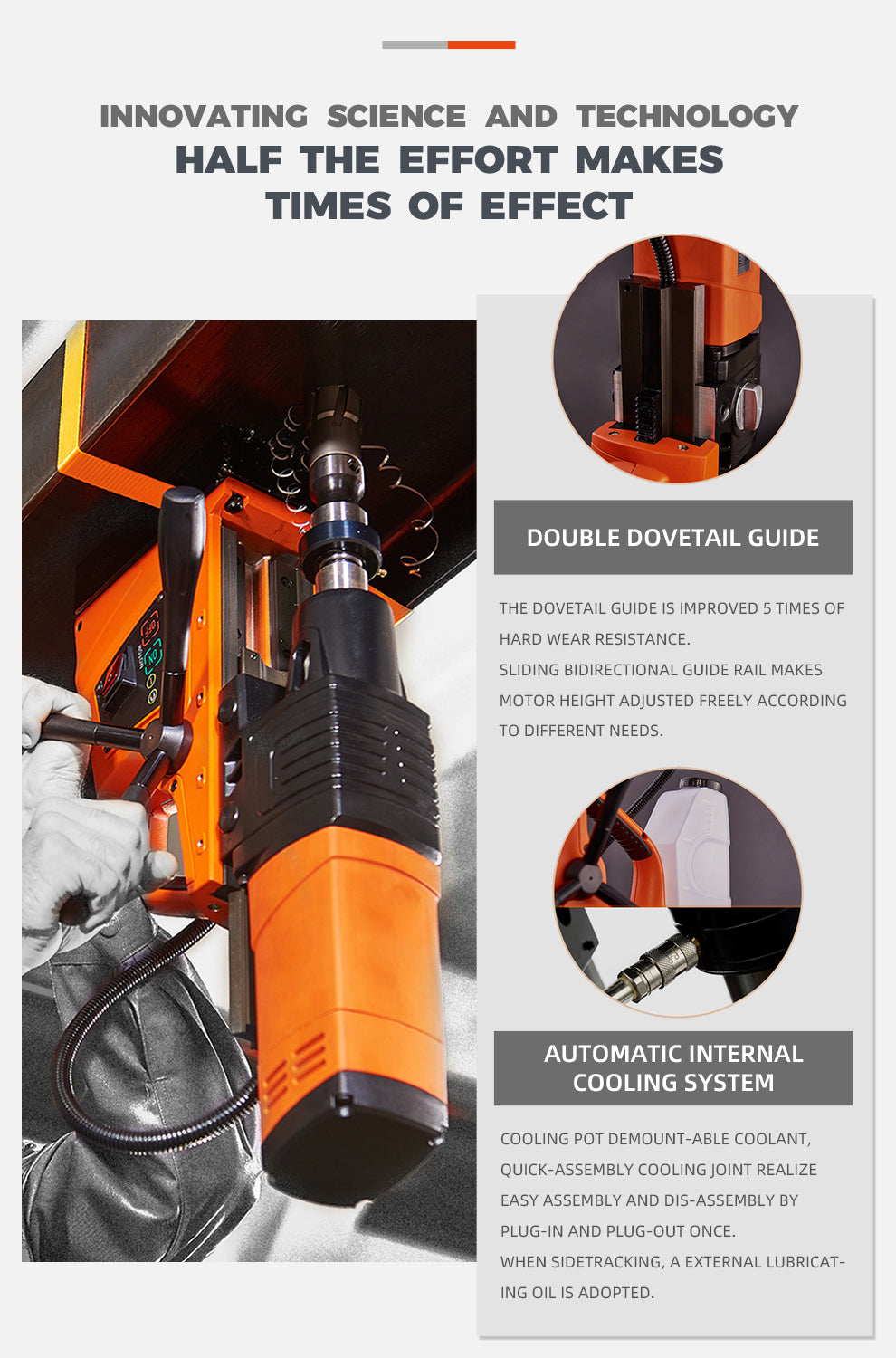

• Sliding bidirectional guide rail makes motor height adjusted freely according to different needs.

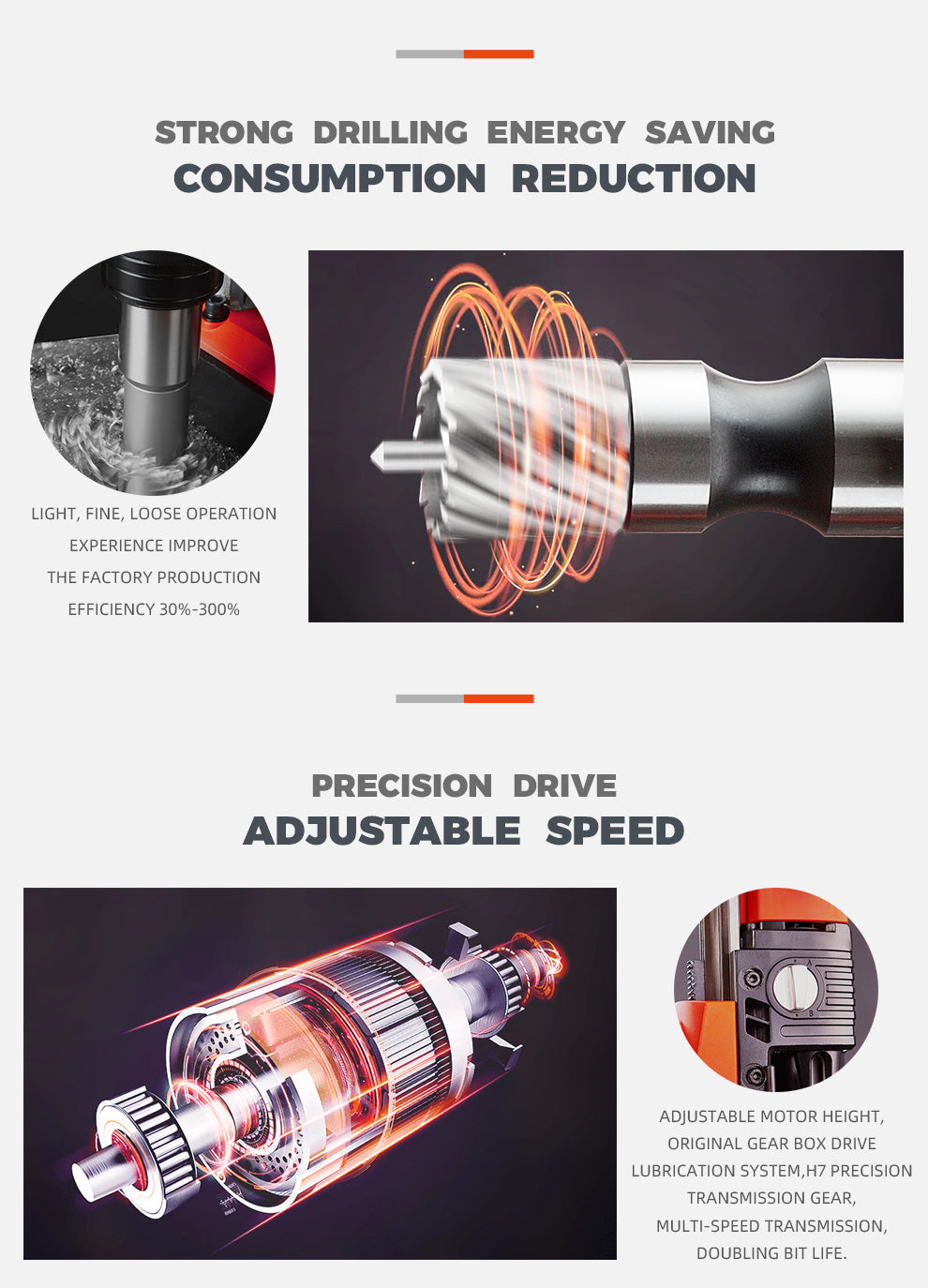

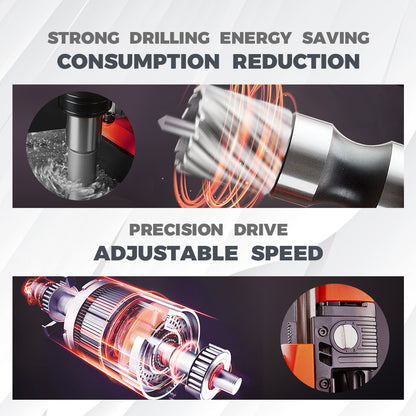

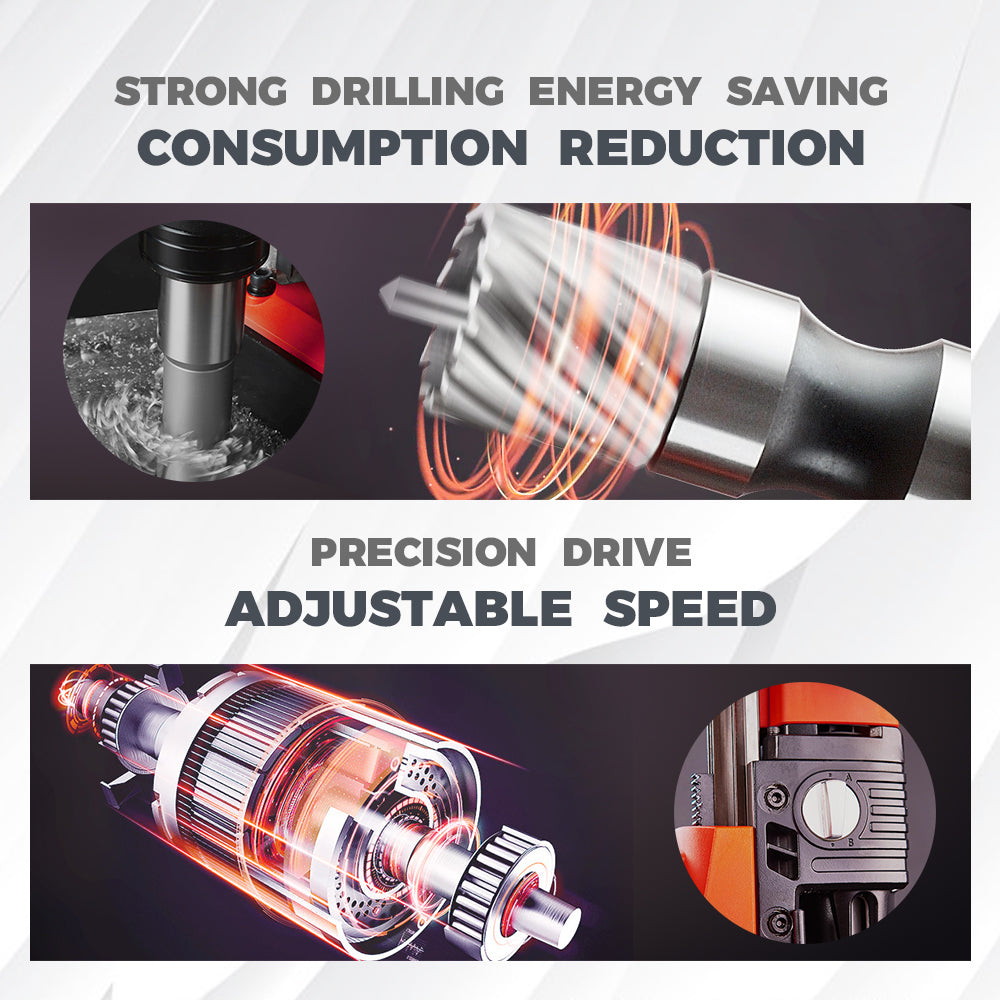

• Adjustable Speed: Multi-Speed Transmission with H7 Precision Transmission Gear and Lubrication System.

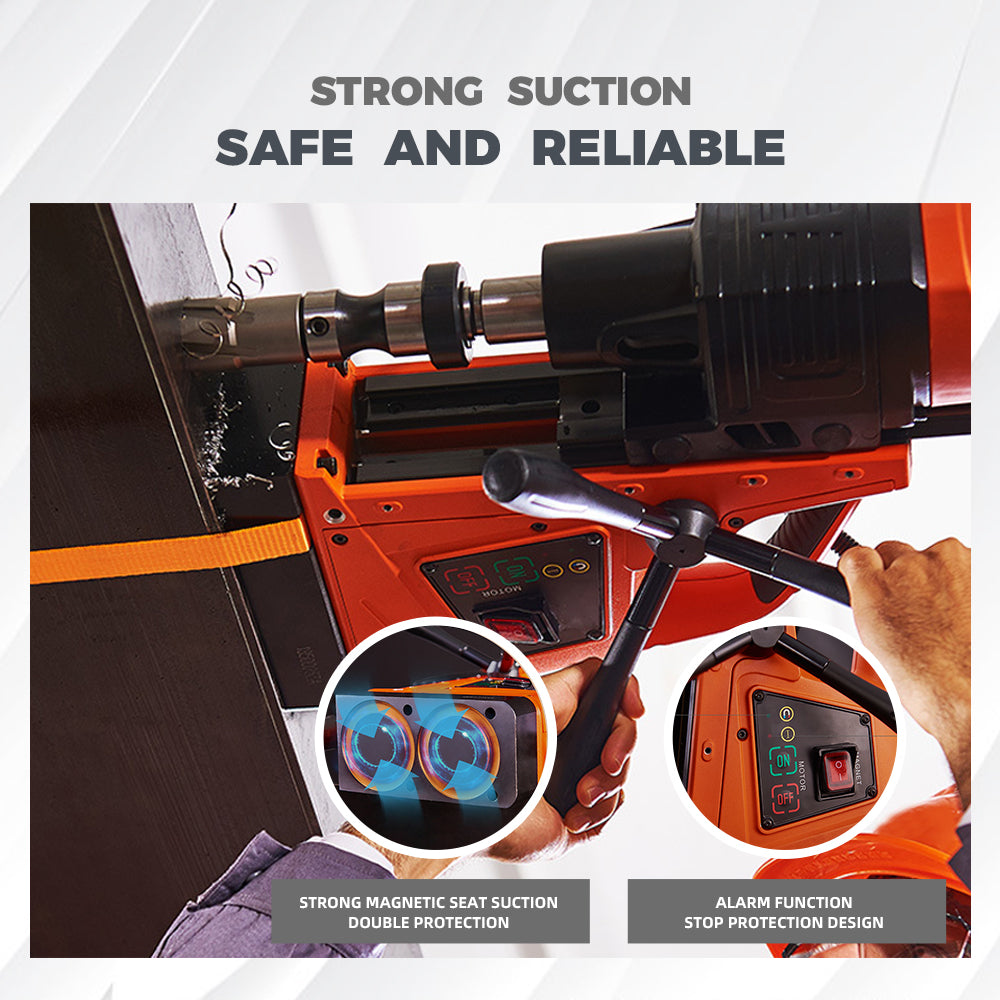

• 10000N Strong Magnetic Base: Stepper starting technology, longer magnetic seat life, do not affect the continous operation, inner insulation protective adhesive, external copper mold protection.

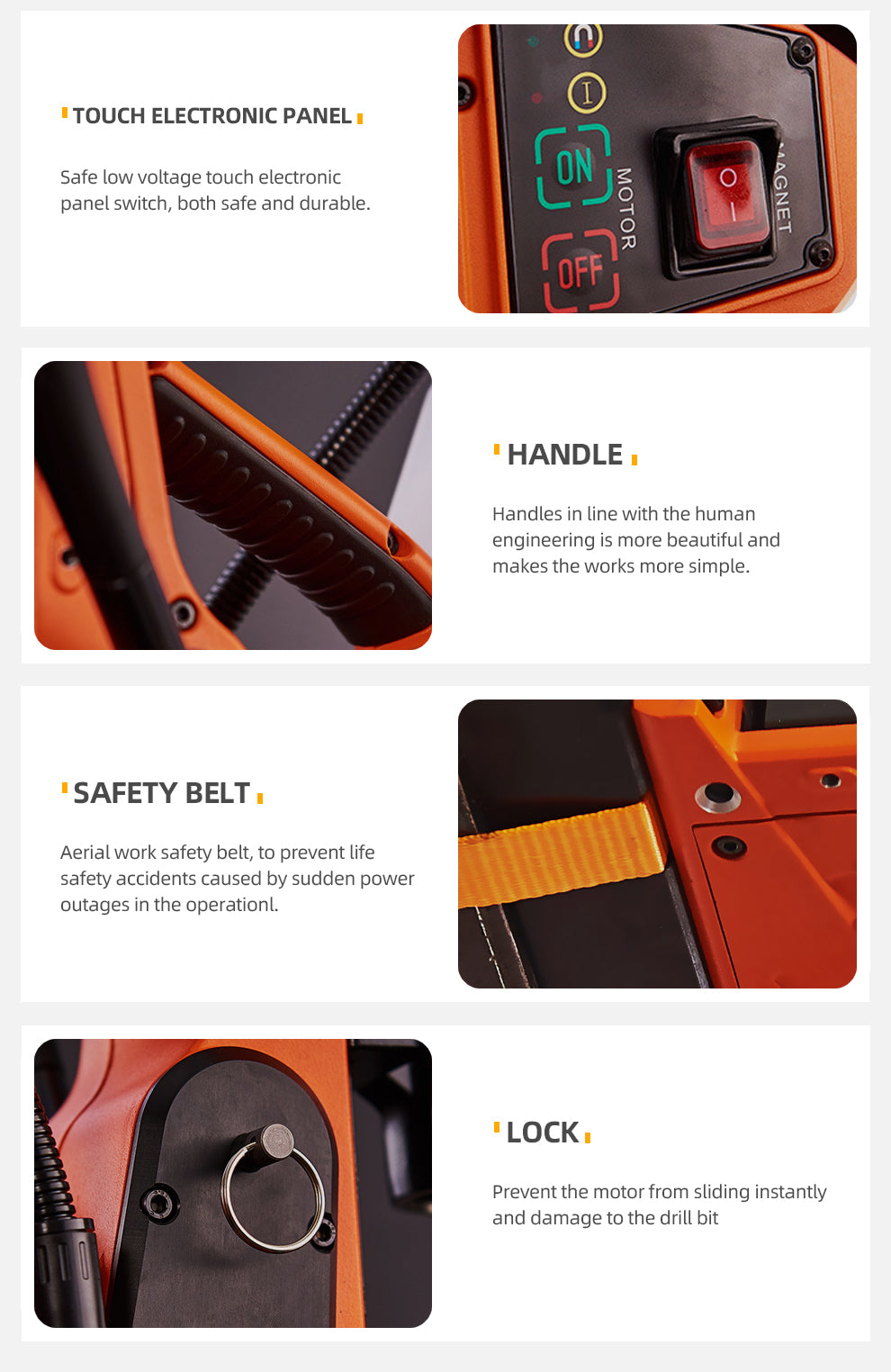

• Safety in Use: High current alarm lamp, insufficient suction alarm lamp. When facing ultra high current, the motor shuts down automatically. With human engineering handle and safety belt to prevent accidentsby sudden power outages in operation.

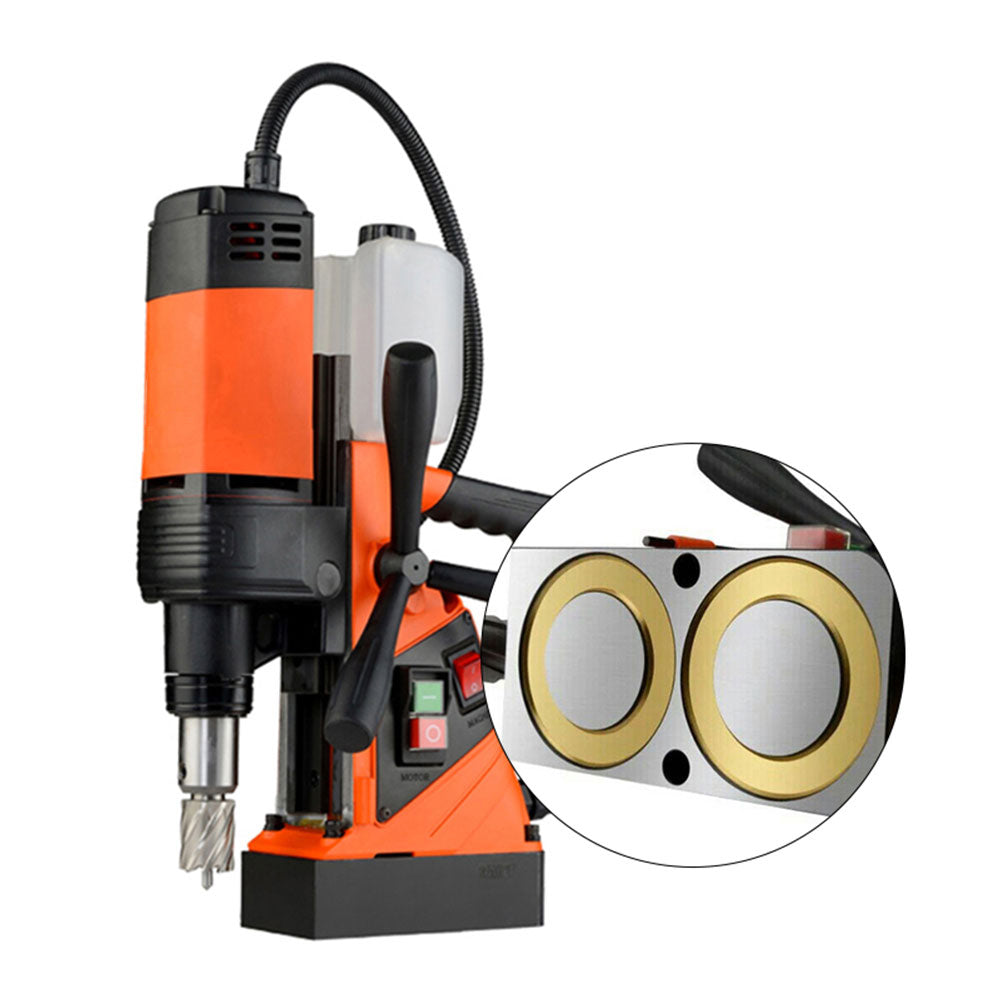

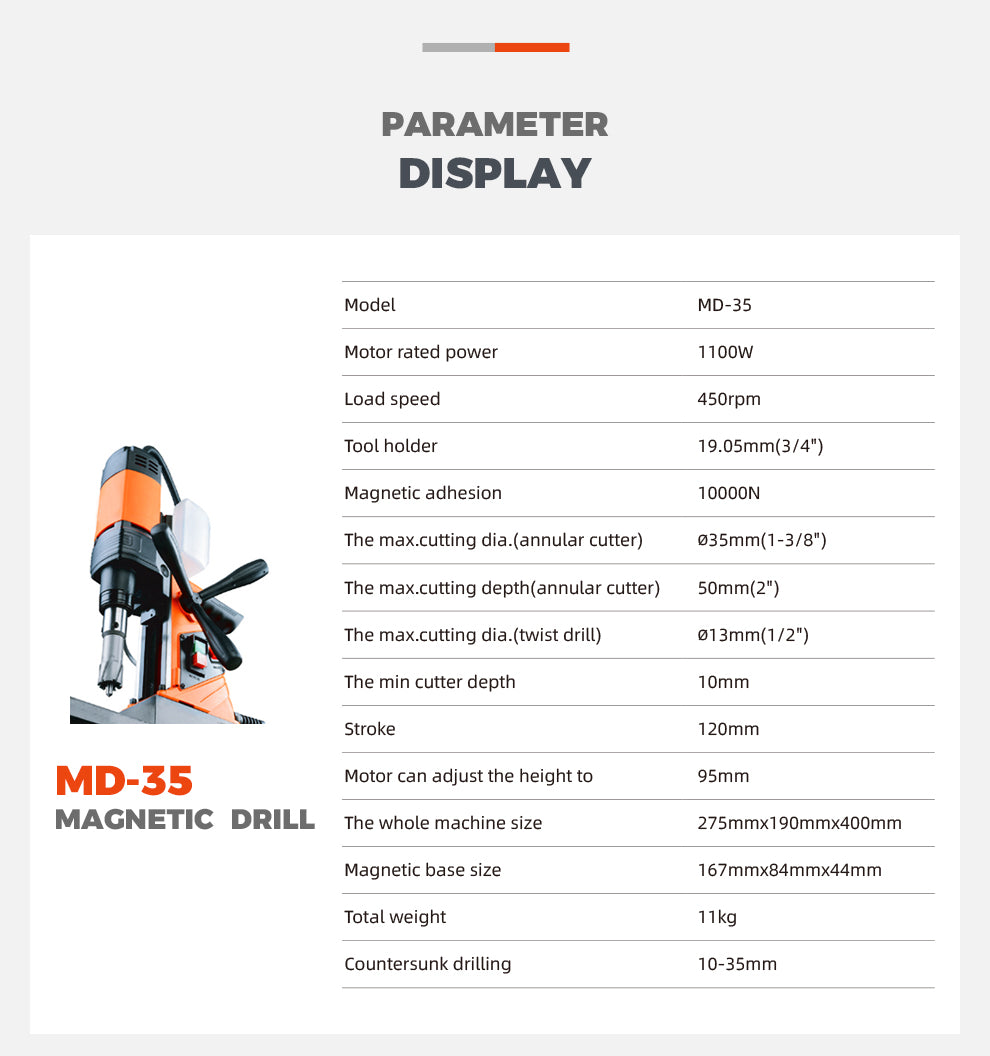

⊙Technical parameter（MD-35 ）

• Motor rated power:1100W Tool Holder:19.05mm(3/4'')
• Stroke: 120mm Magnetic adhesion: 10000N
• Magnetic base size: 167mm*84mm*44mm Input power: 1100W
• The max cutting depth: 50mm (2”) Total weigh: 11.0kg
• The max cutter capacity diameter: 35mm (1-3/8”)
• Motor can adjust the height to: 95mm Load speed: 450rpm
• The max diameter of twist drill: 13mm ( 1/2" ) The type of shank: 19.05mm (3/4”) Countersunk drilling: 10-35mm
• The min cutter depth: 10mm

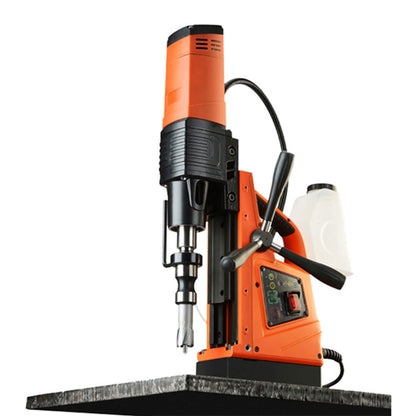

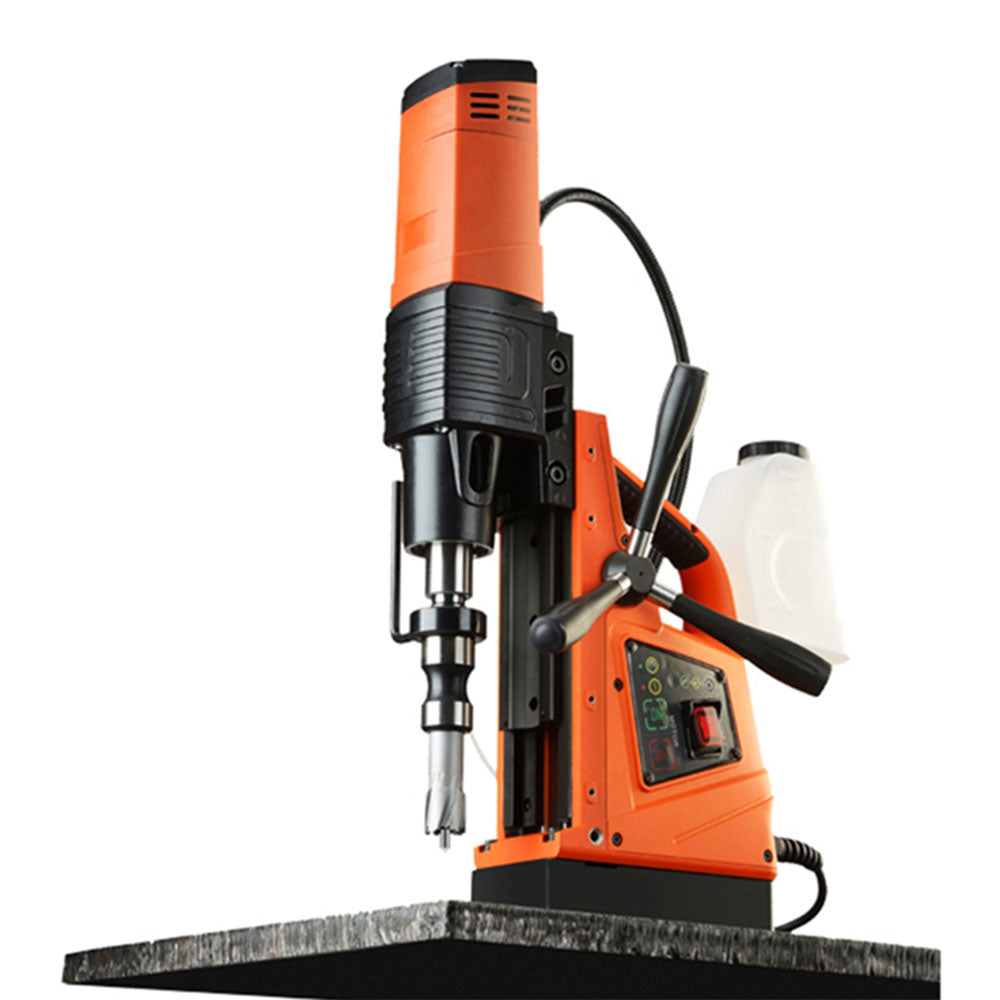

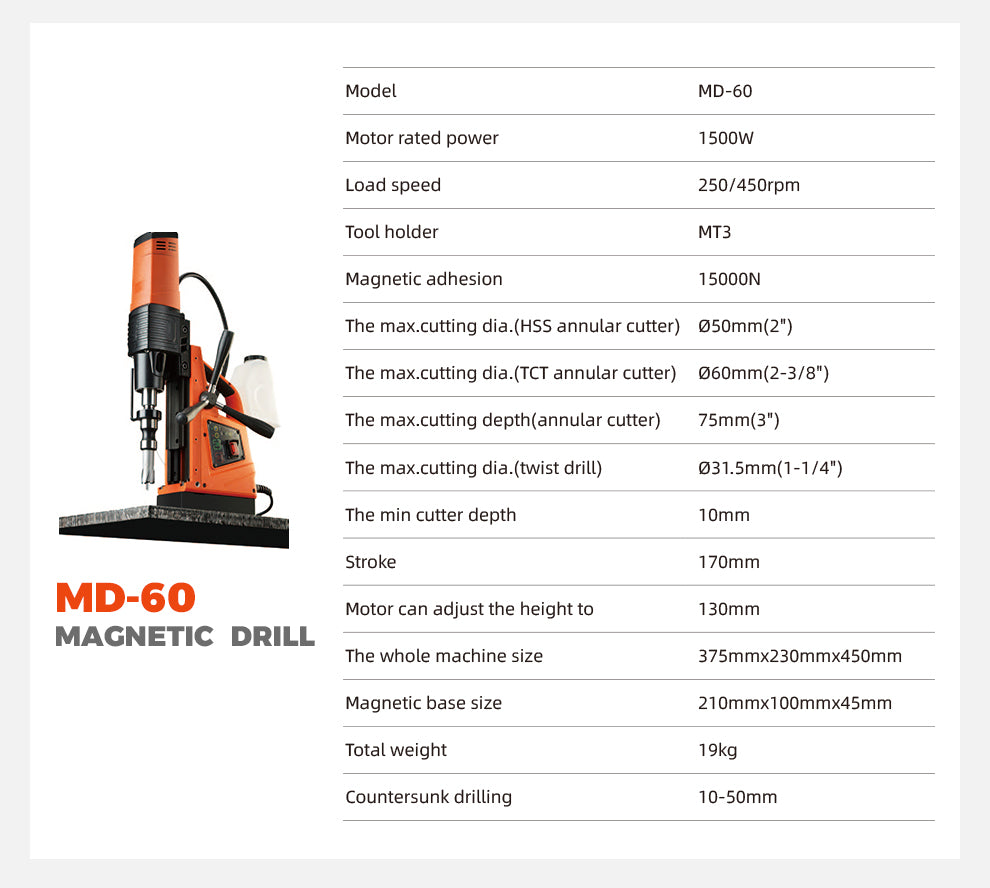

⊙Technical parameter（MD-60）

• Motor rated power:1500W Tool Holder:MT3
• Stroke: 170mm Magnetic adhesion: 15000N
• Magnetic base size: 210mm*100mm*45mm Input power: 1500W
• The max cutting depth: 75mm (3”) Total weigh: 19.0kg
• The max cutter capacity diameter: Φ60mm (2-3/8'')
• Motor can adjust the height to: 130mm Load speed:250/450rpm
• The max diameter of twist drill: 31.5mm (1- 1/4" ) The type of shank: MT3 Countersunk drilling: 10-50mm
• The min cutter depth: 10mm

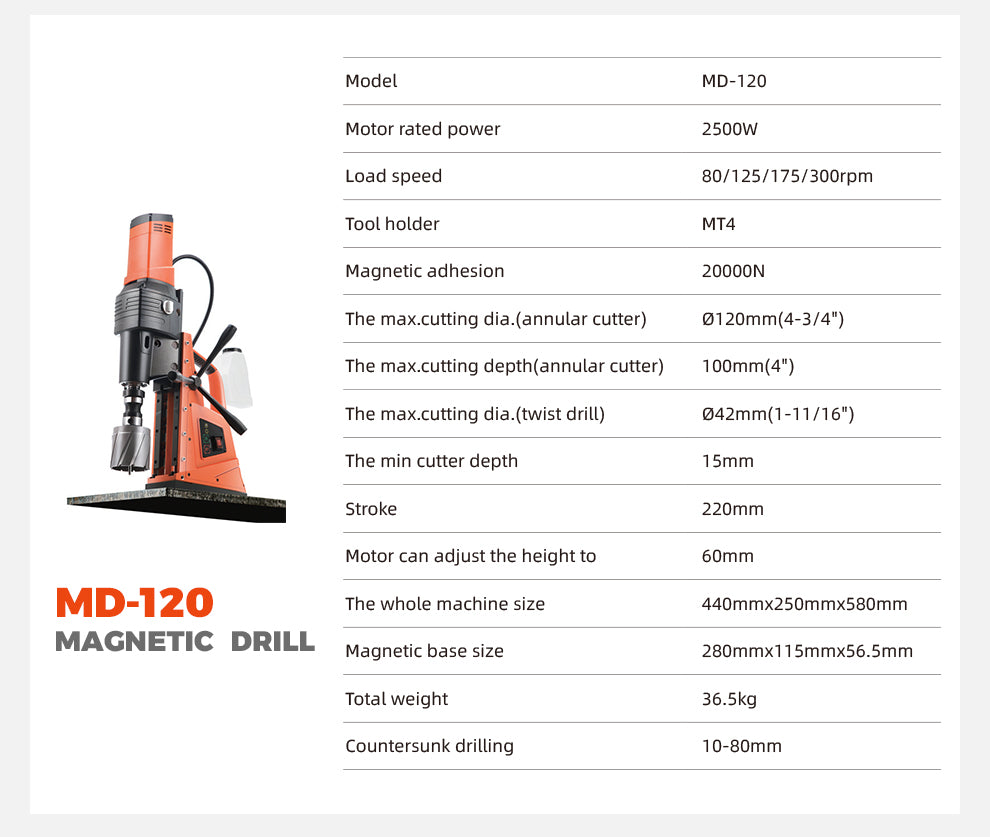

⊙Technical parameter（MD-120）

• Motor rated power:2500W Tool Holder:MT4
• Stroke: 220mm Magnetic adhesion: 20000N
• Magnetic base size: 280mm*115mm*56.5mm Input power: 2500W
• The max cutting depth: 100mm (4”) Total weigh: 36.5kg
• The max cutter capacity diameter: Φ120mm (4-3/4'')
• Motor can adjust the height to: 60mm Load speed:80/125/175/300rpm
• The max diameter of twist drill: Φ42mm ( 1-11/16" ) The type of shank: MT4 Countersunk drilling: 10-80mm
• The min cutter depth: 15mm

⊙Applicable

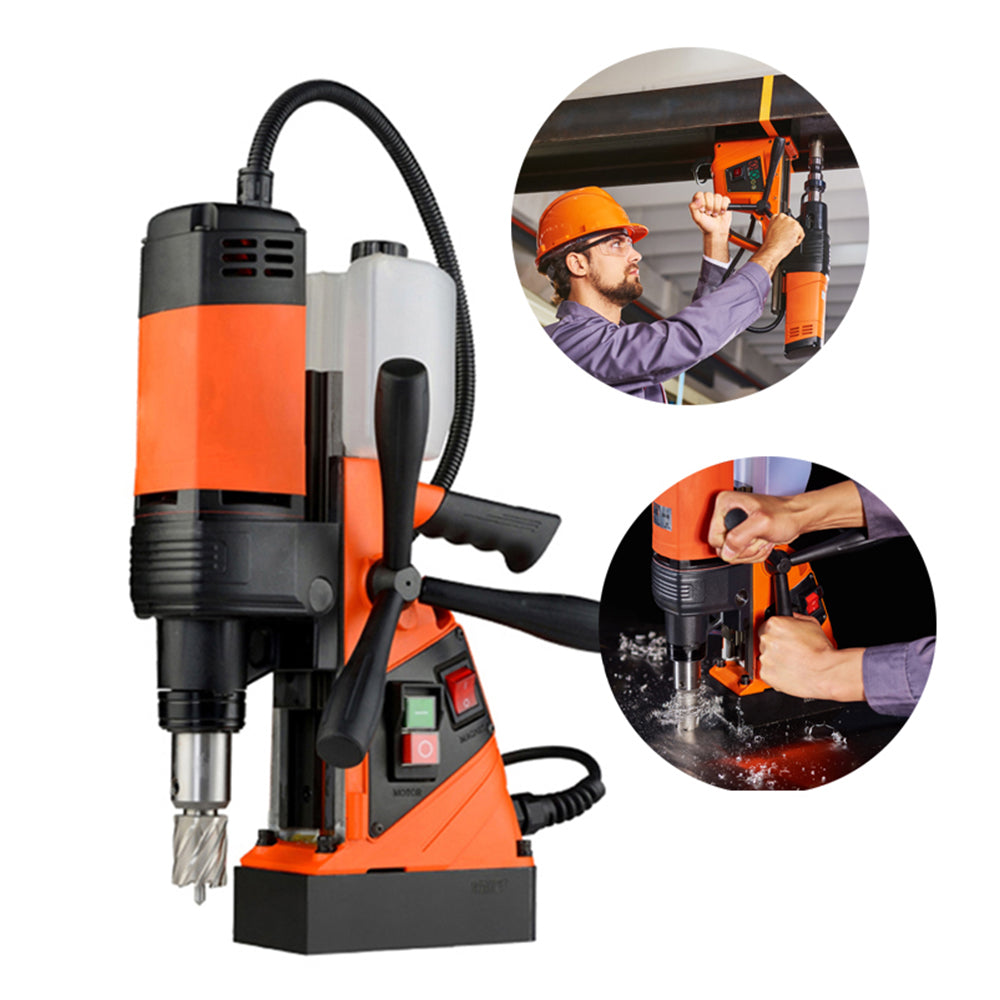

• Widely Used in Steel structure, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing, etc

⊙Shipping Policy

• All of our machines would be shipped by express like DHL/UPS/FedEx/TNT
• All prices are including shipping to your door
• Order processing time: 2 to 3 business days
• Delivery time: 5 to 7 days
