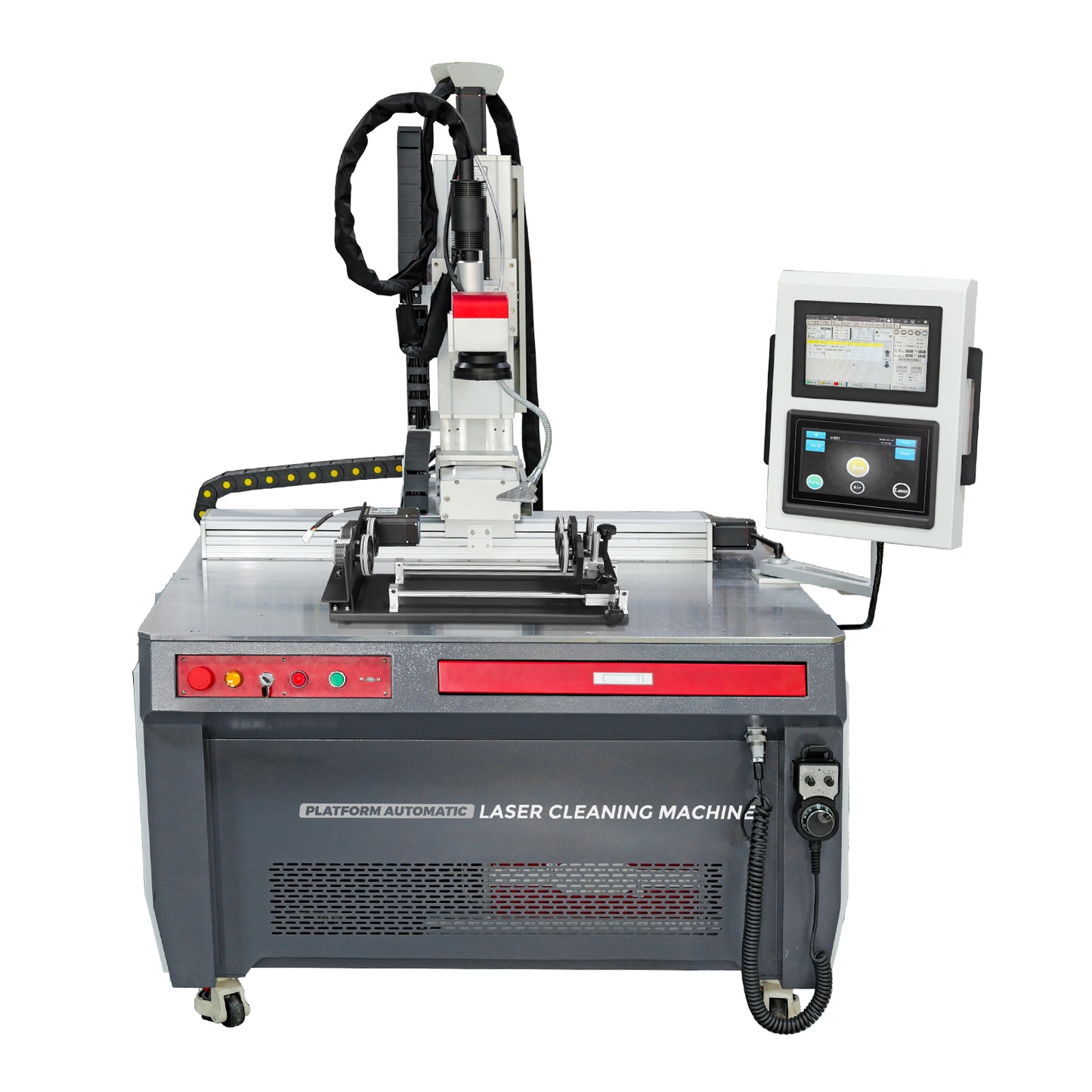

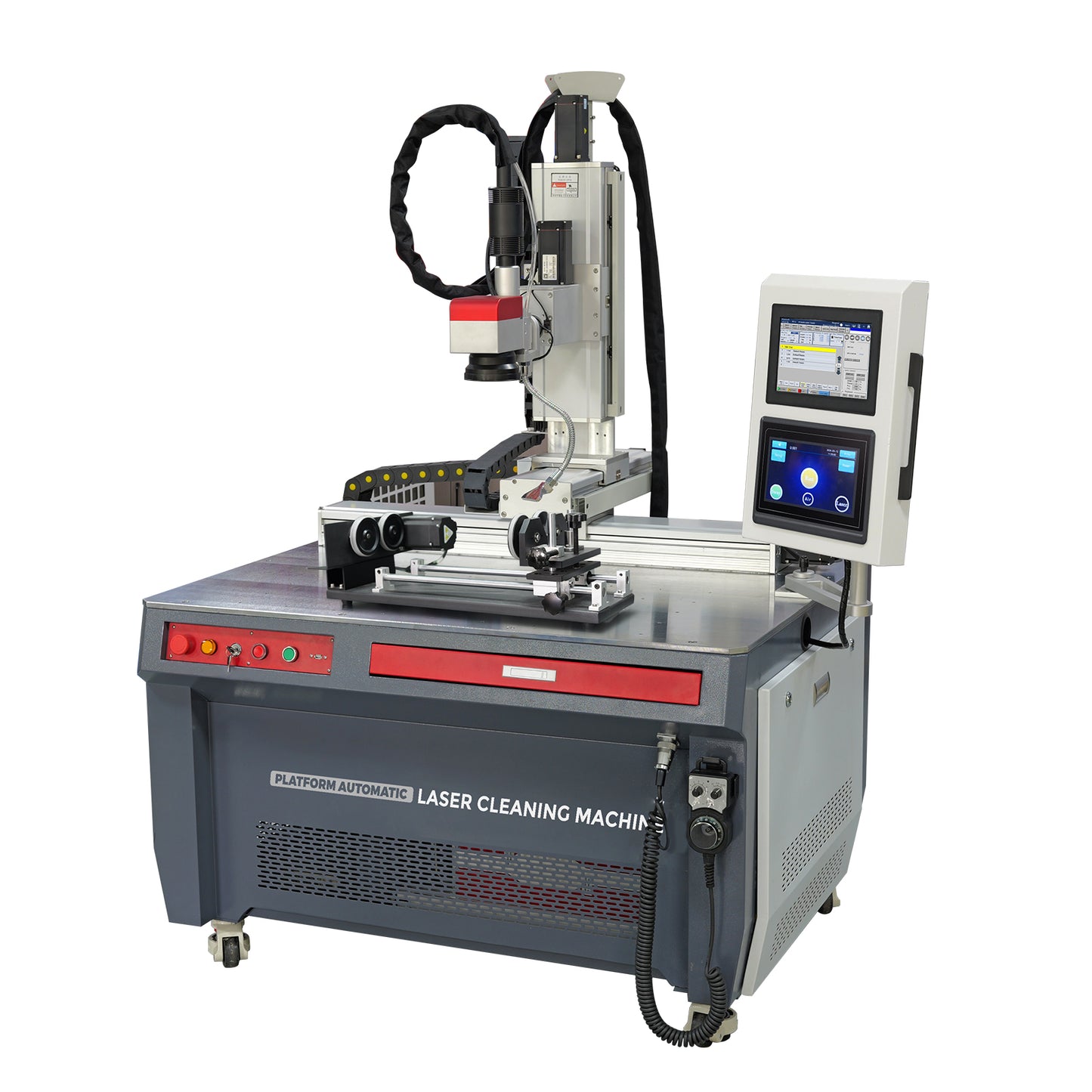

LYXCTECH Platform Laser Automatic Cleaning Machine 200W/300W/500W Pulsed Laser Cleaning Machine

LYXCTECH Platform Laser Automatic Cleaning Machine 200W/300W/500W Pulsed Laser Cleaning Machine

-Suitable for the cleaning of coating, plating, oxidized layers, paint, oil, etc.

★Note:

Due to the large size of the machine, the product will be shipped to the door by sea. Considering the long delivery time, in order to provide better customer service, we will let you see the good quality of the machine before you pay the full payment.
Please contact us. You can pay 30% of the payment first. After the machine is ready, we will accept video inspection. You pay the remaining 70% of the payment before shipment.

👍Specifications and Parameters

• Model: DLC-200 DLC-300 DLC-500
• Laser power: 200W 300W 500W
• Laser wavelength: 1064±10nm
• Operating mode: Pulse
• Pulse width: 10-500ns
• Cleaning width: 10-250mm/standard with 330mm lens(Optional size 10-175mm/254mm lens, size 10-300mm/420mm lens)
• Workbench size: 1200*1000mm
• Input power: 3kw 3.5kw 5kw
• Cooling method: Air cooling(DLC-200) Air/Water cooling(DLC-300) Water cooling(DLC-500)
• Water tank capacity: 16L(14-15L of water to be added)
• Main unit size: 1200*1000*1700mm
• Package size: 1800*1400*1900mm
• Net weight: 460kg

👐Our Advantages

• Digital matching cleaning--The laser frequency, galvanometer, and axial speed are matched, resulting in a high level of efficiency and no blind spot.
• Consistent energy with automatic focus control--Stable operation, uniform cleaning and high gloss
• Teaching programming easy to operate--Facilitate batch cleaning operations

👑Product Details

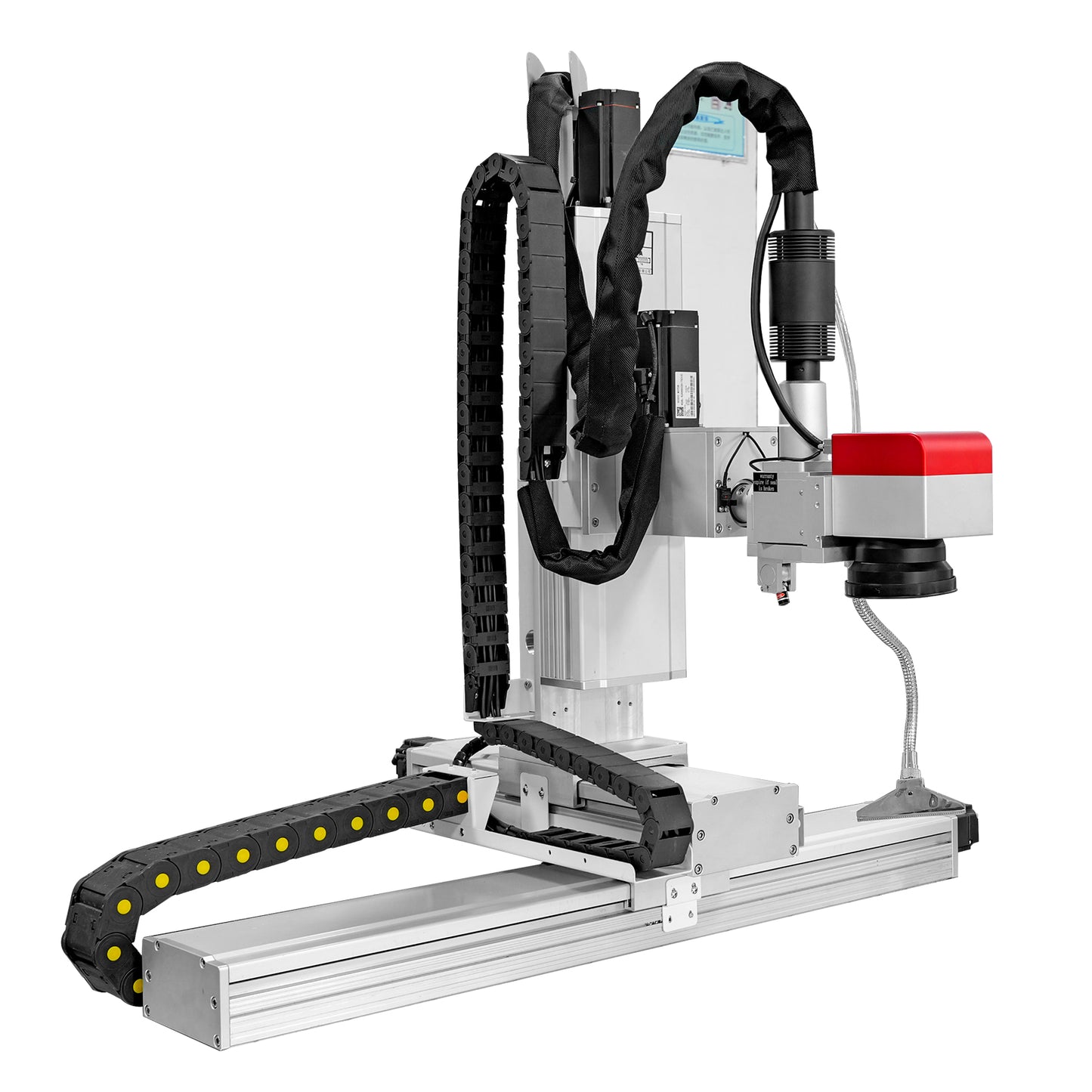

• High-speed galvanometer system--Width up to 300*300mm fast scan speed, uniform energy
• Rich I/O interfaces--Support modbus protocol, easy to connect with other devices
• Integrated thickened sheet metal--All-round protection, good heat dissipation

👑Easily adapted to a wide range of working conditions

• Rubber residue removal, metal surface rust removal, pre-treatment of welded/painted surfaces, paint removal and stripping, cultural artifacts restoration, grease/stain removal, remove plating/coating, tire mold residue cleaning

🌷Shipping Policy

• All prices are including shipping to your door.
• Order processing time: 10 to 20 business days.
• Delivery time: 30 to 45 days.

🌳Warranty Policy

• 1. The warranty period of this product is two years.
• 1.1 From the date of purchasing this product, our company provides free warranty within two years. If the machine need to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 1.2 This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• 2. The following scopes are not covered by warranty:
• 2.1 Damage caused by improper use such as violent bumping, bending, etc.
• 2.2 Human-caused damage
• 2.3 Laser accessories and consumables are not guaranteed (galvanometers, field mirrors and other optical parts, Integrated cables, etc. are not covered by the warranty).
