LYXCTECH SUN-02 Upgraded Coolant Tank Purifier Oil Water Separator CNC Oil Skimmer
LYXCTECH SUN-02 Upgraded Coolant Tank Purifier Oil Water Separator CNC Oil Skimmer
Couldn't load pickup availability
About this item
About this item

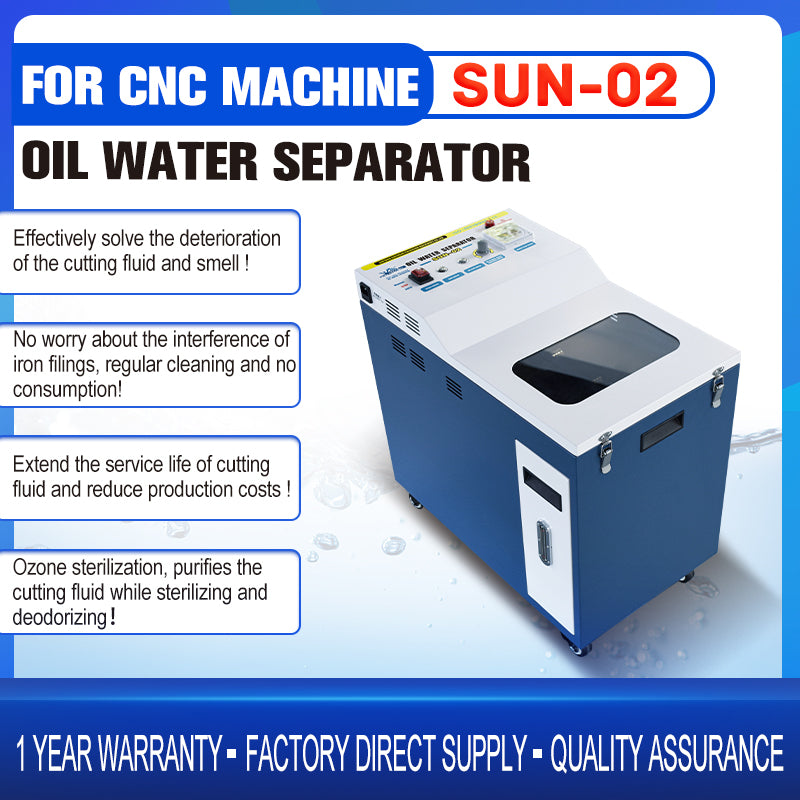

🚀Upgraded SUN-02 CNC Oil Skimmer effectively solve the deterioration of the cutting fluid and smell.
🚀Self-designed floating oil suction inlet accurately position oil slick layer suitable for different depth.
🚀Stepless DC Motor to adjust the filtration rate. Maintenance Free.
🚀Bigger Scrapper: Dia. 110mm and Max. FLow Rate: 180L/h.
🚀Filter Bottle for iron filings and other impurities. Caster Design and easy to move. One machine for multipule use. 1 year warranty and Prompt Goods. Send By UPS/FeDex/DHL.
Email: lyxctech@gmail.com
oscar@sfxlaser.com
Whatsapp: +86 13592083781
You can also leave us your comment for your interested items. We will respond within 24 hours! Thanks!

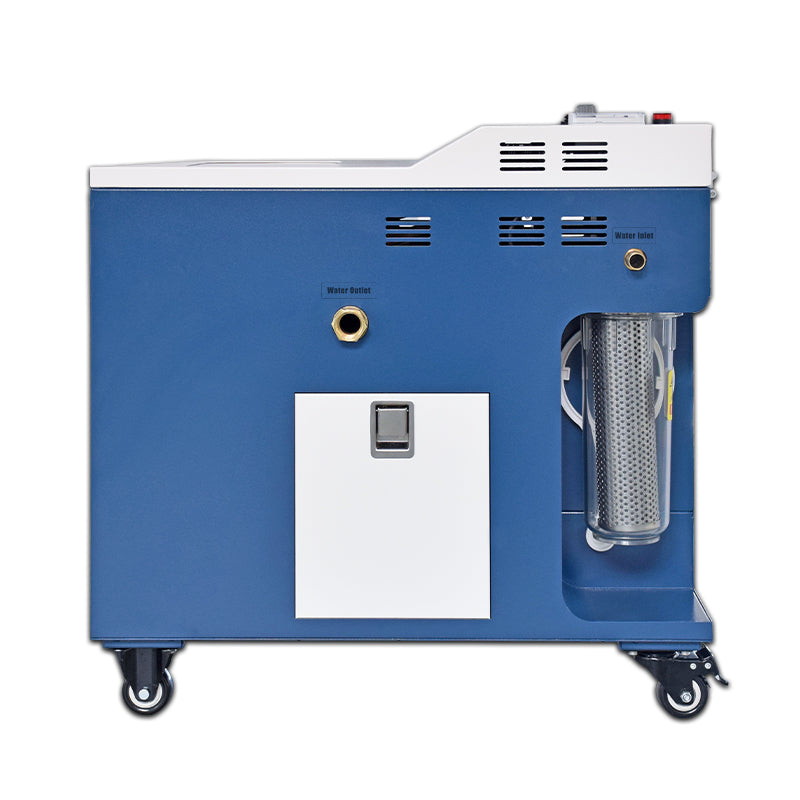

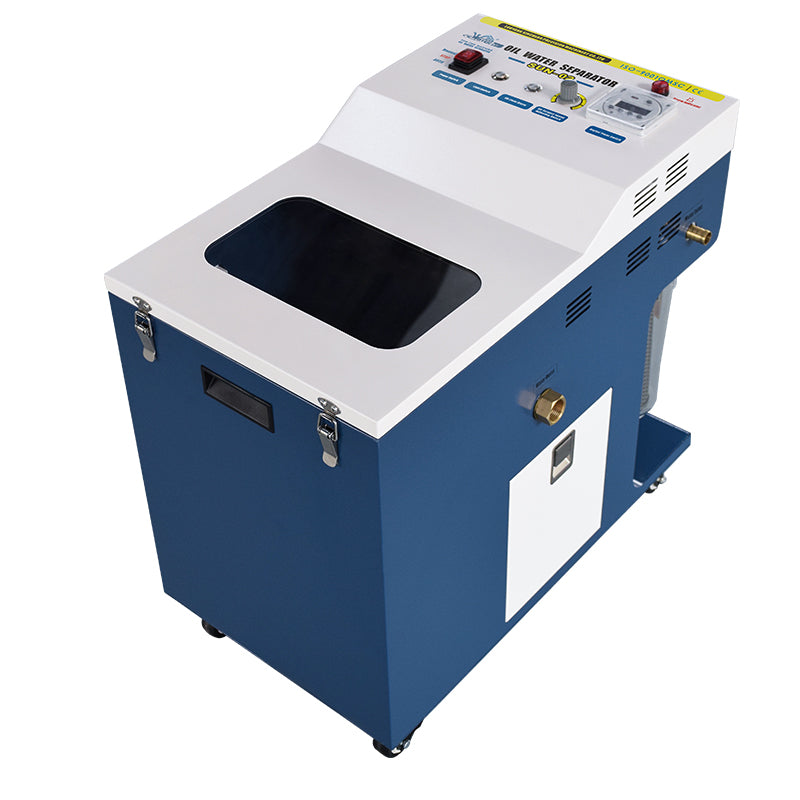

LYXCTECH SUN-02 Upgraded Coolant Tank Purifier Oil Water Separator CNC Oil Skimmer
Working Principle
- Floating oil, cutting fluid and impurities are absorbed by theadsorption device and delivered to oil-water separator, and the scraperseparates floating oil with the principle of oil-water proportion separation.The clean cutting fluid has been processed will be re-transported into thecutting fluid tank;
- The adsorption device using the principle of internal and external liquidsurface buoyancy difference, the suction port always follow the oil level changes, greatly improving the surface oil absorptionrate.
Advantage
- Independently design the floating inlet position floating oil layer,applicable to adsorb the floating oil in the surface of cutting fluid; Adopt 3-stage filtering system, make sure the filtering thoroughly.
- Small Size, Caster Move, One for Multiple Machine Tools.
- Auto control, could set clock within 24 hours to realize the unattendedoperation in the auto model.
- DC motor low consumption, stable and reliable operation.
- No consumables; Purely physical separation methods, no secondarypollution
- Input liquid sensor, alarm when oil is full
- Oil scraper motor is stepless
Technical Parameter
- Input Voltage: AC220V/110V,50/60Hz
- Input Power: 20W
- Operating Speed: 0-90rpm/Stepless adjustable
- Working Period Setting:16 periods per day
- Timing Range:0 -99 hours
- Oil Tank Capacity: 8.7L
- Scrapper Diameter: 110mm
- Max.Flow Rate: 180L/h
- Operating Temperature: 0℃-45℃
- Overrall Dimension: 600*350*580mm
- Net Weight: 32.8 Kg
- Gross Weight: 45 Kg
Warranty Policy
- 1 Year manufacturer warranty and support without worry
